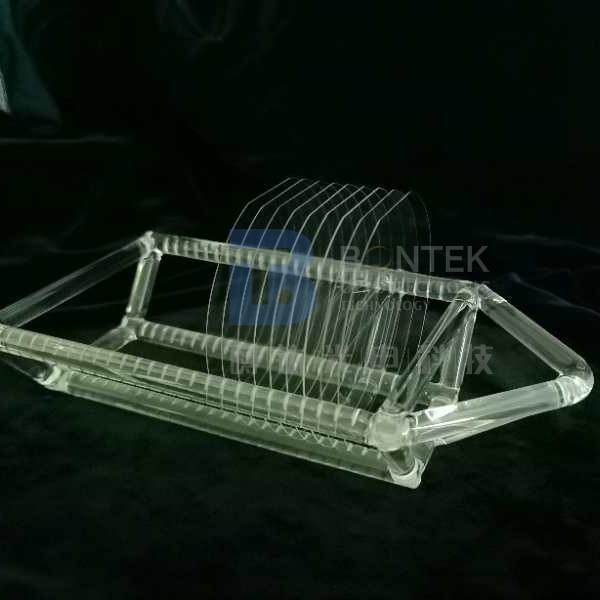

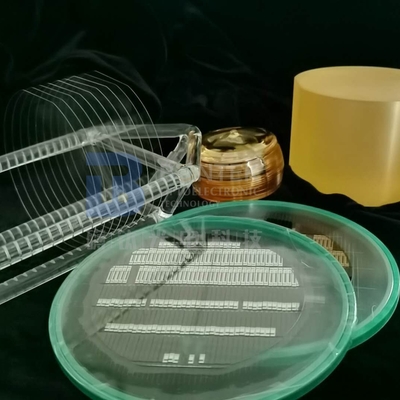

Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides

Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001, ISO:14001
Model Number: Lithium Niobate (LiNbO3)

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pcs/Month
Get Best Price Contact Now

Detail Information

Product: LiNbO3 Wafer Grade: SAW And Optical
Diameter: 3inch, 4inch, 6inch, 8 Inch Orientation: X-cut, Z-cut, Y-cut, 128Y-cut
Thickness: 0.35mm, 0.5mm, 1mm Surface: DSP, SSP
Roughness: Ra<1nm Application: SAW Devices, Optical Waveguides
High Light:

4inch LiNbO3 wafer

,

3inch Optical wafer

,

1mm LiNbO3 wafer

Product Description

Ferroelectric LiNbO3 wafers of different Orientations For SAW Devices Optical Waveguides



Lithium Niobate (LN) is a ferroelectric material with excellent electro-optic, nonlinear, and piezoelectric properties. Lithium niobate crystals are important materials for optical waveguides, mobile phones, piezoelectric sensors, optical modulators and various other linear and non-linear optical applications.



The largest use of Lithium Niobate (LN) is in SAW devices used in telecommunication devices. When voice communication and data communication are performed, SAW devices such as SAW filters and SAW duplexers are mounted in communication devices as filters for preventing noise and interference. Lithium Niobate (LN) crystals are also used in optical applications.



Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides 0Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides 1Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides 2



Material

3" 4" 6" 8" LN wafer Saw/Optical grade

Orientation

X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized

Curie Temp

1142°C±3°C

Doped with

Zn,  MgO  single or double doped available

Surface finish

single or double sides polish

(DLP/SLP/ SSP/DSP all available)

Thickness

0.18/0.25/0.35/0.50/1.00 + mm

TTV

< 1~5µm

BOW

± (25µm ~40um )

Warp

<= 35µm

LTV (5mmx5mm)

<1.5 um

PLTV(<0.5um)

98% (5mm*5mm)  with 2mm edge excluded

Edge

Compl't with SEMI M1.2@with GC800#  .regular at C typed

Orientation flats

available, per request

Polished side Ra

Roughness Ra<=5A

Back Side Criteria

Roughness Ra:0.5-1.0µm GC#1000

Edge Rounding

Compliant with SEMI M1.2 Standard/refer to IEC62276

Cracks, saw marks, stains

None


Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides 3



Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides 4





FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

Ferroelectric LiNbO3 Wafer For SAW Devices Optical Waveguides 5



  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
