Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles

Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001, ISO:14001
Model Number: Piezoelectric Wafer

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 50000 pcs/Month
Get Best Price Contact Now

Detail Information

Product: Piezoelectric Wafer Diameter: 4 Inch, 6 Inch, 8 Inch
Material: Crystal Quartz, Lithium Niobate Thickness: 0.25mm, 0.35mm, 0.5mm
Primary Flat: 32.5±2mm, 57.5±2mm Surface: DSP, SSP, DSL
Usage: SAW Devices Test Result: TTV, BOW, Warp, Ra, S/D
High Light:

LiTaO3 Piezo Wafers

,

Crystal Quartz Wafers

,

LiNbO3 Piezo Wafers

Product Description

Crystal Quartz LiNbO3 Piezoelectric Wafers with Differnent Cut Angles and Propagation Directions



The word piezoelectric originates from the Greek word piezein, which literally means to squeeze or press. Instead of squeezing grapes to make wine, we’re squeezing crystals to make an electric current! Piezoelectricity is found in a ton of everyday electronic devices, from quartz watches to speakers and microphones.



BonTek grows crystal and fabricate wafers, we are piezoelectric specialist. We work mostly with wafers, blanks, substrates made from Quartz Crystal, Lithium Niobate, Lithium Tantalate, Fluoride, Glass etc.



Specially, we are capable of fabricating these materials into LARGE and THIN wafers/blanks conform to SEMI-std. 3" 4" 6" 8" are all available as per requirement. In addition, we possess Corning Flatmaster 200 Profiler, Laser marking equipment, AOI and 6-step cleaning line.

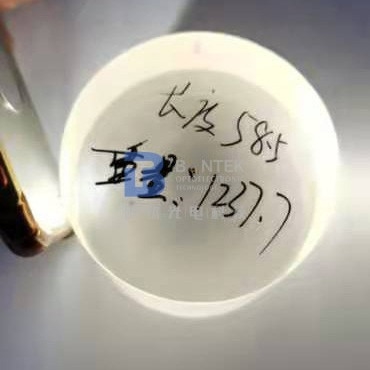

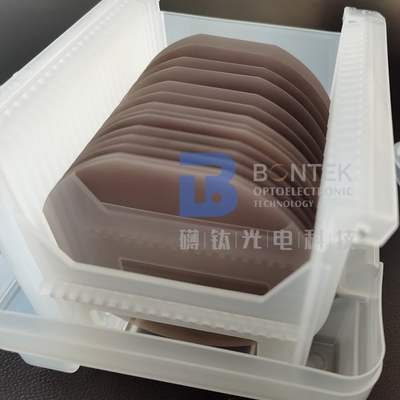

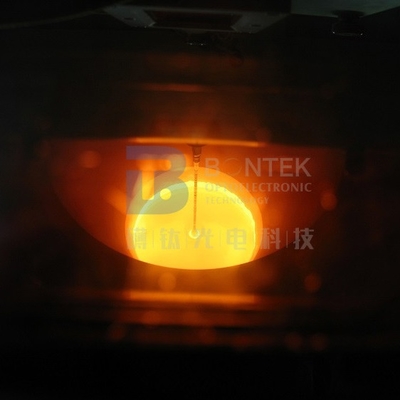

Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles 0Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles 1Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles 2



Material

Lithium Niobate Lithium Tantalate Quartz Crystal

Dia.

3’’, 4’’, 6’’, 8’’ 3’’, 4’’, 6’’ 3’’, 4’’, 5’’, 6’’, 8’’

Cut

X / Y / Z

41Y / 64Y/128Y

X / YZ / X112

28Y / 36Y / 42Y

X / Y / Z

AT36 / ST42.75

Surface

Single side polish / Double side polish

Thickness

0.08mm / 0.25mm / 0.35mm / 0.50mm / 1.00mm / 2.00mm

TTV

< 5um

PLTV

>98% (5mm*5mm)

LTV

< 1.5um

Bow

-25um < bow < +25um

Warp

< 30um

Curie Temp.

1142℃ ± 2℃ 605℃ ± 2℃ 573℃

Edge

Round Ground, "C" Shape

Flat

22±2mm, 32.5±2mm, 47.5±2mm, 57.5±2mm, Notch

As per request

Dope

Er, MgO Fe with or without seed

Front Side

Roughness Ra<= 10A

Back Criteria

Roughness Ra: 0.2--0.7um GC#1000, GC#2000

Appearance

No Cracks, saw marks, stains

Single Domian

Completed Polarization / Reduced No Stress

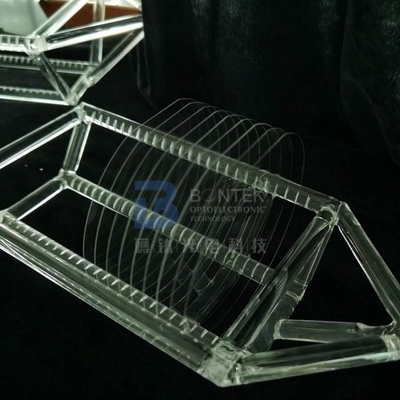

Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles 3



Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles 4





FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

Crystal Quartz LiNbO3 LiTaO3 Piezo Wafers With Differnent Cut Angles 5



  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
