Black LiNbO3 And LiTaO3 Reduced Piezoelectric Wafer For Higher Frequency SAW Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

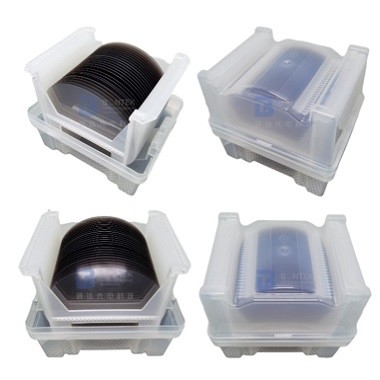

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Piezoelectric Wafer | Material: | Black LiNbO3, Black LiTaO3 |
|---|---|---|---|
| Property: | Pyroelectric Free | Bulk Resistivity: | ~ 4.50E+10 (White); 0.9E+11 ~ 9.0E+11 (Standard Black); 1.0E+10 ~ 9.0E+10 (Super Black) |
| Size: | Dia. 3'', 4'', 6'', 8'' OR Squard | Application: | Interdigital Transducer, SAW Devices |
| Surface: | DSP, SSP, Lap | Ra Roughness: | <1nm |
| High Light: | LiTaO3 Reduced Piezoelectric Wafer,SAW Devices LiTaO3 wafer,LiNbO3 Piezoelectric Wafer |
||
Product Description

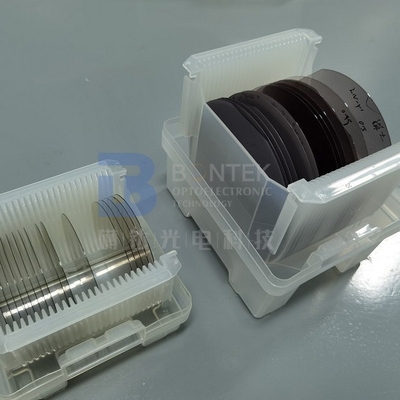

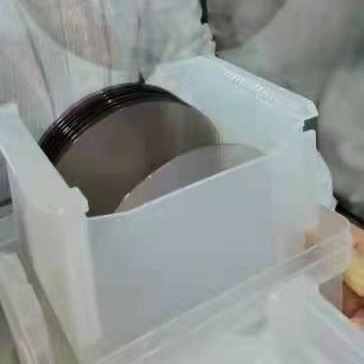

Free-pyro Black LiNbO3 and LiTaO3 Reduced Piezoelectric Wafer for Higher Frequency SAW devices
Free-pyro black LiNbO3 and LiTaO3 wafers were prepared successfully by chemical reduction under a mixed atmosphere of CO2 and H2. Bulk conductivity and optical transmittance of the black LiNbO3 and black LiTaO3 wafers were measured. The results showed that the pyroelectric effect for the reduced wafers was almost eliminated and the transmittance decreased considerably. The reduction process did not change Curie temperatures or piezoelectric properties of LN and LT wafers, while neutralize electrical charges even if the electrical potential occurs instantaneously.
|
Material |
3" 4" 6" 8" LN wafer SAW / Optical |
3" 4" 6" LT wafer SAW / Optical |
|
Orientation |
X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized |
X112°/Y28°/Y36°/Y42°/YZ or Customized |
|
Surface finish |
Single Side Polish or Double Sides Polish (DLP/SLP/ SSP/DSP all available ) |
|
|
Thickness |
0.18/0.25/0.35/0.50/1.00 mm |
0.25/0.35/0.50/1.00 mm |
|
TTV |
< 1~5µm |
|
|
BOW |
± (25µm ~40um ) |
|
|
Warp |
<= 35µm |
|
|
LTV (5mmx5mm) |
<1.5 um |
|
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
|
Curie Temp |
1142°C±3°C |
605°C±3°C |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
|
Orientation flats |
available, per request |
|
|
Doped with |
Er, MgO Single or Double doped |
Fe doped |
|
Polished side Ra |
Roughness Ra<=5A |
|
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
|
Cracks, saw marks, stains |
None |
|
|
Single Domain |
Completed Polarization / Reduced |
|
