6inch 0.5mm Piezoelectric Wafer With Designed Orientation And Propagation Direction
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Piezoelectric Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs/Month |
|
Detail Information |
|||
| Category: | Piezoelectric Wafer | Diam.: | 4 Inch, 6 Inch |
|---|---|---|---|
| Material: | LiTaO3 Crystal, QuartzCrystal, LiNbO3 Crystal | Thickness: | 0.5mm, 1mm |
| Flat: | 32.5mm, 47.5mm, 57.5mm, NOTCH | Surface Finish: | DSP, SSP, DSL |
| Use: | Piezo, SAW, Bulk | Ra Roughness: | <1nm |
| High Light: | 0.5mm Piezoelectric Wafer,0.5mm LiNbO3 wafer,6inch Piezoelectric Wafer |
||
Product Description

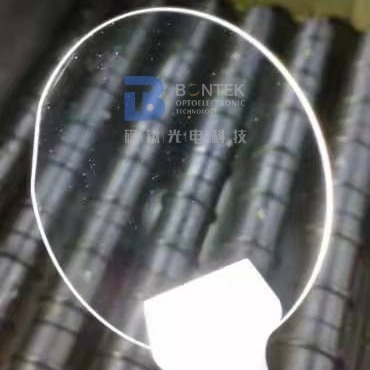

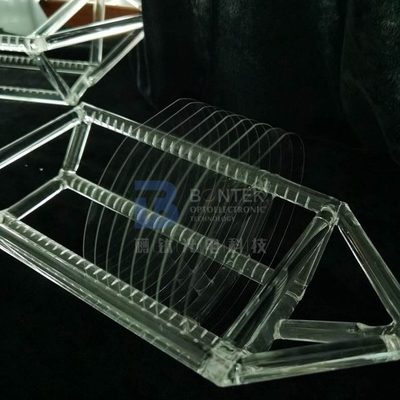

6inch 0.5mm Piezoelectric Wafer with Designed Orientation and Propagation Direction
The electrical response to mechanical stimulation is called a direct piezoelectric effect, and the mechanical response in electrical simulation is called the opposite of the piezoelectric effect. In crystalline materials, the number of electrical dipoles in a piezoelectedrical material is called a "piezoe" or "effect" and has a significant influence on the structure of this material. To summarize briefly: A "direct" piezoelectric effect refers to the change in the electrical properties of a material when it is exposed to mechanical stress.

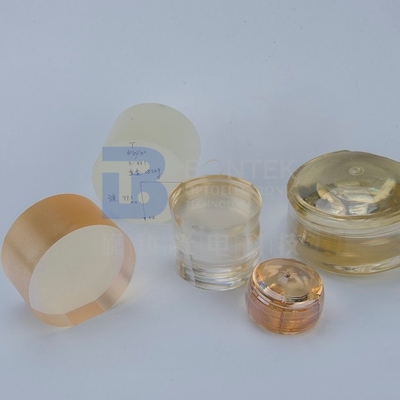

BonTek grows crystal and fabricate wafers, we are piezoelectric specialist. We work mostly with wafers and substrates made from Quartz Crystal, Lithium Niobate, Lithium Tantalate etc.
|
Material |
LiNbO3 Wafer | LiTaO3 Wafer | Quartz Wafer |
|
Diameter |
3’’, 4’’, 6’’, 8’’ | 3’’, 4’’, 6’’ | 3’’, 4’’, 5’’, 6’’, 8’’ |
|
Cut Type |
X / Y / Z 36Y / 64Y／128Y |
X / Y-Z / X-112Y 28Y / 36Y / 42Y |
X / Y / Z AT / ST / DT / BT |
|
Surface |
Single side polish / Double side polish / Lapped | ||
|
Thickness |
0.25mm / 0.35mm / 0.50mm | ||
|
TTV |
< 5 um or as per required | ||
|
PLTV |
>98% (5mm*5mm) <1.5um | ||
|
Bow |
-25um < Bow < ＋25um or as per required | ||
|
Warp |
< 30um or as per required | ||
|
Roughness |
Ra<0.5nm, Ra<1nm | ||
|
Curie Temperature |
1142℃ ± 2℃ | 605℃ ± 2℃ | 573℃ |
|
Edge |
Round Ground, Bevelled | ||
|
Flat |
22±2mm, 32.5±2mm, 47.5±2mm, 57.5±2mm, Semi-Notch, As per request |
||
|
Doping |
Er, MgO | Fe | with or without seed |
|
Front Side |
Roughness Ra<= 1nm | ||
|
Backside |
Roughness Ra: 0.2--0.7um GC#1000, GC#2000 | ||
|
Appearance |
No Cracks, saw marks, stains | ||
|
Single Domian |
Completed Polarization / Reduced | No Stress | |
