Dia 6'' 8'' LiNbO3 Wafer 128 Degrees Y Z-Cut For Surface Acoustic Wave Devices
Product Details:
Place of Origin: | China |
Brand Name: | BonTek |
Certification: | ISO:9001, ISO:14001 |
Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | Negotiable |

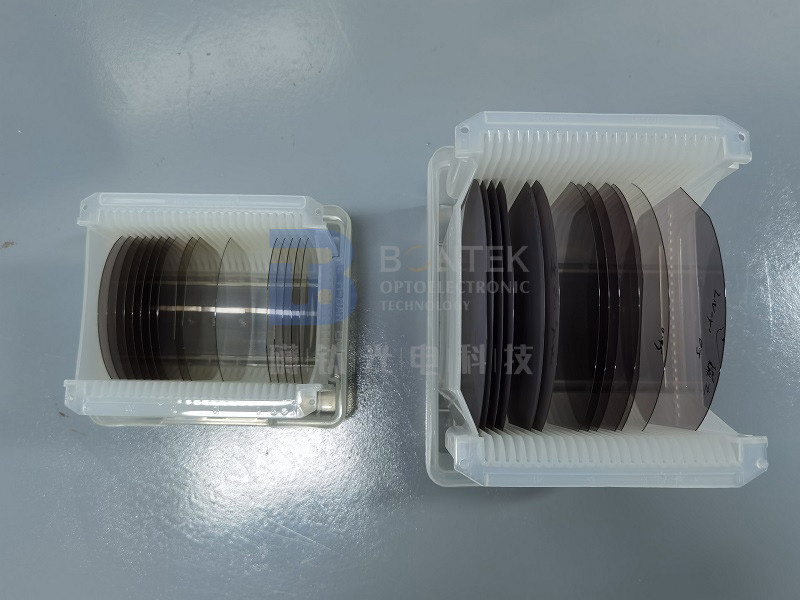

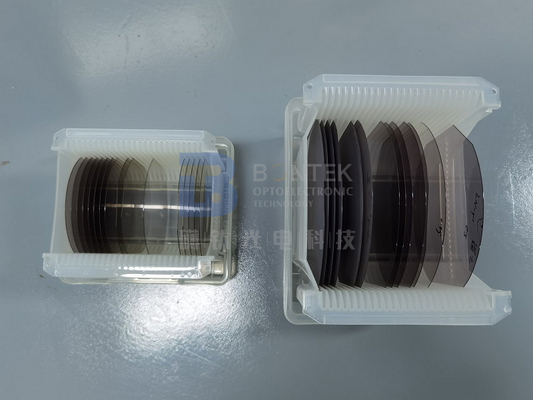

Packaging Details: | Cassette/ Jar package, vaccum sealed |
Delivery Time: | 1-4 weeks |
Payment Terms: | T/T |
Supply Ability: | 10000 pcs/Month |
Detail Information |
|||
Product: | LiNbO3 Wafer | Purity: | SAW, Optical |
---|---|---|---|
Diameter: | 6inch, 8 Inch | Orientation: | Z-cut, 128Y-cut, 64Y-cut |
Thick: | 350um, 500um, 1000um | Surface Finish: | DSP, SSP |
Ra: | <1nm | Use: | SAW Filter, Ultrasonic Transducer |
Highlight: | 8'' LiNbO3 Wafer,Lithium Niobate optical wafer,6'' LiNbO3 Wafer |
Product Description
Large Dia 6'' 8'' LiNbO3 wafers 128°Y Z-cut For Surface Acoustic Wave Devices

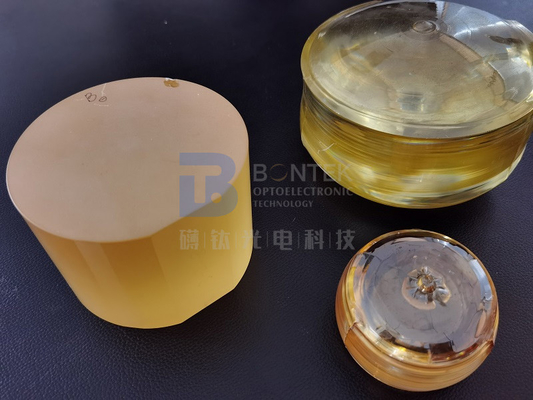

Lithium niobate (LiNbO3) single crystal is a ferroelectric crystal with high electromechanical coupling coefficient and low propagation loss, which can be used to fabricate SAW devices with up to 50% bandwidth. The acoustic surface wave properties of lithium niobate single crystal materials are closely related to their orientation and propagation direction. According to different cutting angles and propagation directions, the saw propagation velocity is 3400~4000m/s, the electromechanical coupling coefficient is 0%~5.6%, and the temperature coefficient is -1.1~-95.6(10^-6/℃).
The most used SAW orientations are YZ-cut and 128°Y-cut, best fit for television transmission and reception signal processing. The 128°Y-cut with X propagation is said to have the lowest spurious signal level. BonTek introduces 8 inch LN wafers for 128°Y-cut and Z-cut, 6 inch LN wafers for all cut angles! We also has the technology of LN reduction and LN doping, such as MgO:LN, Nd:Mg:LN, Fe:LN.
Material |
6'' & 8" LiNbO3 wafer |
Orientation |
Z-cut, Y128°-cut for 8'' X, Y, Z, 36Y, 64Y, 128Y for 6'' |
Surface finish |
Single or Double sides polish (DLP/SLP/ SSP/DSP all available ) |
Thickness |
0.35mm, 0.50mm, 1.00mm |
TTV |
< 5µm |
BOW |
± 40um |
Warp |
< 80µm |
Orientation flats |
47.5mm or 57.5mm for 6'' Semi Standard Notch for 6'' and 8'' |
Polished side Ra |
Roughness Ra<10A |
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
Crystal Sturucture |
Trigonal, Space group R3c, Point group 3m |
Melting Point |
1253℃ |
Mohs Hardness |
5 |
Density (g/cm3) |
4.64 |
Deliquescence |
None |
Optical Homogeneity |
~5x10-5/cm |
Transparency Range |
420-5200nm |
Absorption Coefficient |
~0.1%/cm @1064nm |
Refractive Indices @1064nm |
ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm |
Thermal Expansion Coefficients (at 25℃ ) |
//a,2.0x10-6/K //a,2.2x10-6/K |
Thermal Conductivity Coefficients |
38 W/m/K at 25℃ |
Thermal Optical Coefficients |
dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm |
The Sellmeier Equations (λ in μm) |
no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
