Gold Coated Lithium Niobate Crystals With Electro-Optic Nonlinear Piezoelectric Property
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

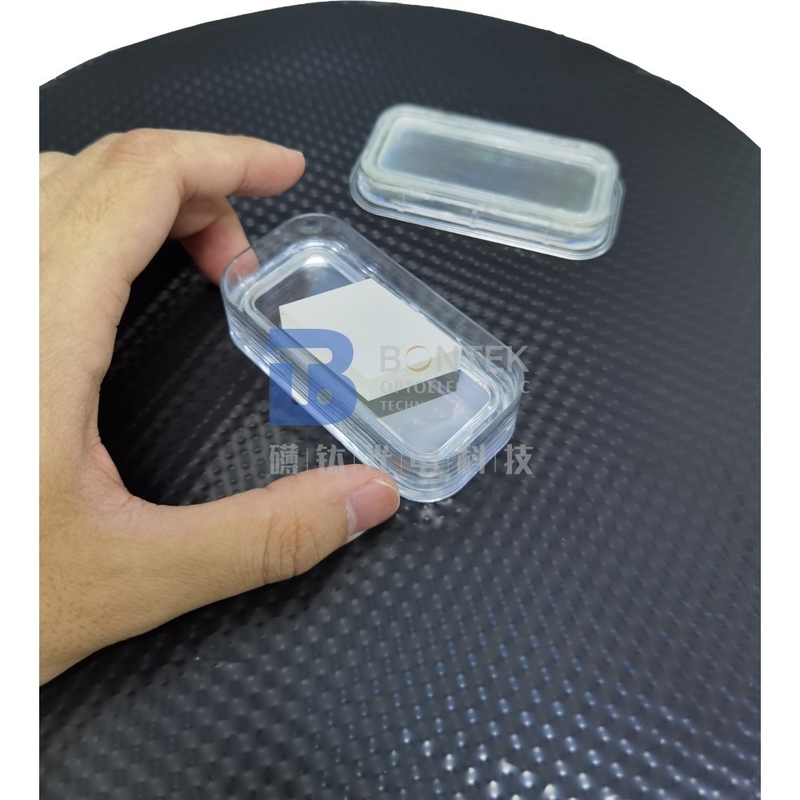

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 Wafer | Type: | SAW And Optical |
|---|---|---|---|
| Size / Dia.: | 6×6mm, 9×9mm, Etc. | Cut: | X-cut, Z-cut, Y-cut, 64Y-cut, 128Y-cut |
| Thickness: | 20mm, 25mm, 30mm | Surface Finish: | DSP, SSP, Lap |
| Property: | Electro-optic, Nonlinear, Piezoelectricity | Usage: | Optical Modulation And Q-switching |
| High Light: | Gold Coated lithium niobate crystals,Piezoelectric Property linbo3 crystal,SAW lithium niobate crystals |
||
Product Description

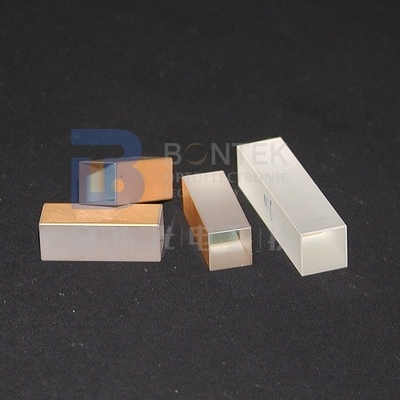

Gold Coated Lithium Niobate Crystals with electro-optic, nonlinear and piezoelectric property
Lithium niobate (LiNbO3) has excellent electro-optic, nonlinear and piezoelectric properties of its inherent materials. Applications using large electro-optic coefficients of lithium niobate include optical modulation and Q switching at infrared wavelengths. Applications of large nonlinear coefficients using LiNbO3 include optical parametric oscillations, different-frequency mixing to generate tunable infrared wavelengths, and second harmonic generation. Applications using piezoelectric properties include ultrasonic transducers and acoustic surface wave devices.
BonTek provides 3 inch to 6 inch diameter, single crystal Optical grade LN wafer with reduced impurity levels, as well as 3 inch to 8 inch SAW grade LN wafer. Other specifications can be provided are doped wafers: Er:LN, MgO:LN and Fe:LN.
|
Product |
3" 4" 6" 8" LN wafer Saw/Optical grade |
|
Cut |
X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized |
|
Curie Temp |
1142°C±3°C |
|
Doped with |
Zn, MgO single or double doped available |
|
Surface |
single or double sides polish (DLP/SLP/ SSP/DSP all available) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV range |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Primary Flats |
available, per request |
|
Polished side |
Roughness Ra<=5A |
|
Back Side |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
| Crystal Sturucture | Trigonal, Space group R3c, Point group 3m |
| Melting Point | 1253℃ |
| Mohs Hardness | 5 |
| Density | 4.64g/cm3 |
| Deliquescence | None |
| Optical Homogeneity | ~5x10-5/cm |
| Transparency Range | 420-5200nm |
| Absorption Coefficient | ~0.1%/cm @1064nm |
| Refractive Indices at 1064nm |
ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm |
| Thermal Expansion Coefficients (at 25℃ ) |
//a,2.0x10-6/K //a,2.2x10-6/K |
| Thermal Conductivity Coefficients | 38 W/m/K at 25℃ |
| Thermal Optical Coefficients |
dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm |
|
The Sellmeier Equations (λ in μm) |
no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
