6'' 0.5mm Lithium Tantalate Wafer For Nonlinear Optics, Passive Infrared Sensors
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

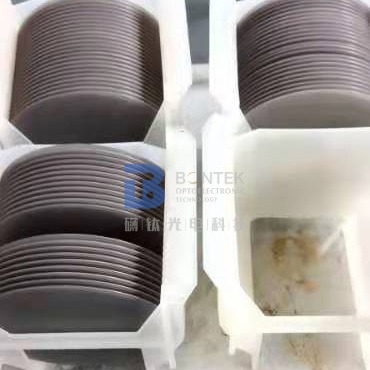

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Tantalate Wafer | Grade: | SAW Grade, Optical Grade |
|---|---|---|---|
| Diameter: | 4inch, 6inch, Etc. | Cut Type: | Y, Z, 28Y, 36Y, 42Y Etc. |
| Thickness: | 0.25mm, 0.35mm, 0.5mm, Etc. | Surface: | Single Side Polish, Double Side Polish |
| Roughness: | Ra<1nm, Ra<0.5nm | Use: | SAW, BAW |
| High Light: | 0.5mm Lithium Tantalate Wafer,6'' Single Side Polished Wafer,6'' Lithium Tantalate Wafer |
||
Product Description

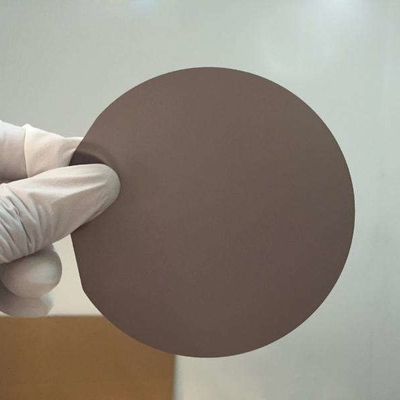

6'' 0.5mm Single Side Polish LiTaO3 Wafer for Nonlinear Optics, Passive Infrared Sensors
The LiTaO3 Lithium Tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates for sale at BonTek Optoelectronics.
Lithium Tantalate (LiTaO3) has a perovskite M6 crystal structure. It has unique combination of optical, piezoelectric and pyroelectric properties. The applications of lithium tantalate crystal include nonlinear optics, passive infrared (IR) sensors such as motion detectors, terahertz (THz) generation and detection, surface acoustic wave (SAW), just to name a few. Both bulk crystals and crystal substrates are available for sale at BonTek Optoelectronics. Please contact our engineers to discuss your specific requirements for lithium tantalate crystal and substrate products. Crystal orientations available: Z-cut, X-cut, Y-cut, 36Y-cut, 42Y-cut, etc.
|
Product |
Ltihium Tantalate (LT) Wafer | ||
|
Diameter |
3inch | 4inch | 6inch |
| 76.2mm | 100mm | 150mm | |
|
Thickness |
0.07mm up | 0.1mm up | 0.35mm up |
|
Primary Flat |
22mm | 32.5mm | 47.5mm, 57.5mm, Notch |
|
S/D |
20/10 | 20/10 | 20/10 |
|
TTV |
<3um | <3um | <5um |
|
PLTV |
>95% | >95% | >95% |
|
Warp |
<20um | <40um | <50um |
|
BOW |
<20um | <30um | <30um |
|
Ra |
<0.5nm | <0.5nm | <0.5nm |
|
Reduction |
Standard White Black Reduced |
Standard White Black Reduced |
Standard White Black Reduced |
|
Dope |
Fe doped Yellow Black |
Fe doped Yellow Black |
Fe doped Yellow Black |
|
Chemical formula |
LiTaO3 |
|
Molar mass |
235.887 g/mol |
|
Density |
7.46 g/cm3, solid |
|
Melting point |
1,650°C (3,000°F; 1,920K) |
|
Solubility in water |
Insoluble in water |
|
Crystal structure |
Space group R3c |
|
Lattice constant |
a = 515.43 pm, c = 1378.35 pm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
