CR AU Coating Lithium Tantalate Crystals Piezoelectric Effect Crystals
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

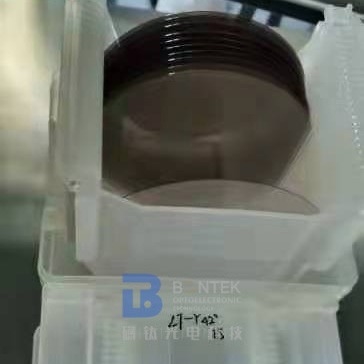

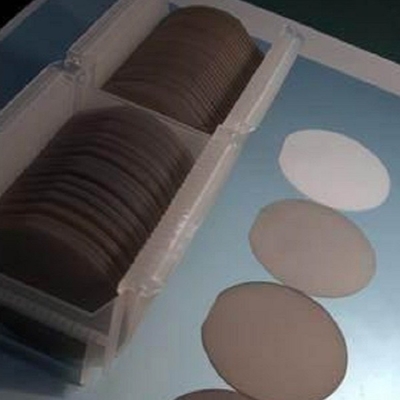

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Lithium Tantalate Wafer | Type: | SAW Grade, Optical Grade |
|---|---|---|---|
| Cut Type: | Y-cut, 36Y-cut, 42Y-cut | Surface Type: | Double / Single Side Polish |
| Dia. / Size: | 3inch, 4inch, 6inch / 10×15mm | Thickness: | 0.35mm, 0.5mm, Etc. |
| Flat Length: | 22mm, 32mm, 47.5mm, 57.5mm | Usage: | High Frequency Broadband Filter And Piezoelectric Transducer |
| High Light: | AU Coating Lithium Tantalate Crystals,Piezoelectric Effect Crystals 10×15mm,CR Coating Lithium Tantalate Crystals |
||
Product Description
CR AU Coating Lithium Tantalate Piezoelectric Effect Crystals Customization Available

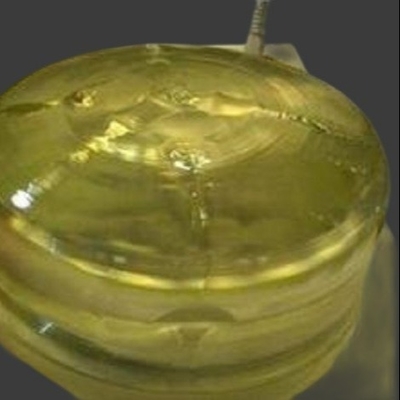

Lithium tantalate (LiTaO3) is a perovskite which possesses unique optical, piezoelectric and pyroelectric properties which make it valuable for nonlinear optics, passive infrared sensorssuch as motion detectors, terahertz generation and detection, surface acoustic waveapplications, cell phones and possibly pyroelectric nuclear fusion.
|
Material |
Ltihium Tantalate (LT) Wafer |
||
|
Diameter |
3inch |
4inch |
6inch |
|
76.2mm |
100mm |
150mm |
|
|
S/D |
20/10 |
20/10 |
20/10 |
|
TTV |
<3um |
<3um |
<5um |
|
PLTV |
>95% |
>95% |
>95% |
|
Warp |
<20um |
<40um |
<50um |
|
BOW |
<20um |
<30um |
<30um |
|
Roughness |
Ra<0.5nm |
Ra<0.5nm |
Ra<0.5nm |
|
Reduction |
Standard White |
Standard White |
Standard White |
|
Doping |
Fe doped |
Fe doped |
Fe doped |
|
Properties |
LiTaO3 (LT) |
|
Crystal Structure |
Trigonal,a = 5.154, c = 13.784Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Transmission Range |
400 – 5000 nm |
|
Absorption edge |
270nm |
|
Absorption loss |
< 0.15 %/cm @ 1064 nm |
|
Refractive Index |
no=2.176,ne=2.180(at 0.633 µm) |
|
no=2.131,ne=2.134(at 1.2 µm) |
|
|
Density |
7.45g/cm3 |
|
Thermal Conductivity |
8.78x 10-7 m2/sec |
|
Optical homogeneity |
~10-5 |
|
Hardness (Mohs) |
5 |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
