Material: Lithium Tantalate Wafer Grade: Semiconductor
Cut: 36°, 39°, 42 °, 46°, 48°, X-CUT Surface Type: DSP, SSP, Lap
Diameter: Φ76.2mm, Φ100mm As Required Thickness: 0.35mm, 0.5mm As Required
Primary Flat: 22±2mm, 32.5±2mm Etc. Usage: Optical Devices, SAW Device
High Light:

Compound Semiconductor Wafer

,

0.5mm LiTaO3 Wafer

,

0.35mm Semiconductor Wafer

Product Description

Compound Semiconductors Lithium Tantalate Wafer used for Optical Devices, SAW Devices



Compound semiconductors are the semiconductors composed of more than two chemical elements. Lithium Tantalate(LiTaO3) wafer is used for several optical devices, especially surface acoustic wave(SAW) device. Because of the lithography in SAW device process, LiTaO3 polishing is needed. In this paper, the commercial slurries(NALCO2371^(TM), ILD1300^(TM), ceria slurry) used for chemical mechanical polishing(CMP) were tested, and the most suitable slurry was selected by measuring material removal rate and average centerline roughness(Ra).

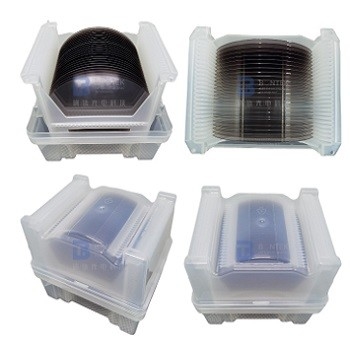

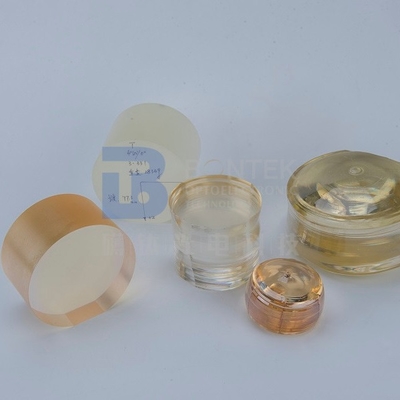

Lithium Tantalate Compound Semiconductor Wafer For Optical Devices SAW Devices 0Lithium Tantalate Compound Semiconductor Wafer For Optical Devices SAW Devices 1Lithium Tantalate Compound Semiconductor Wafer For Optical Devices SAW Devices 2



Diameter

Orientation

Thickness

Primary Flat

Material

Brand /Grade

76.2±0.2mm

36°Y Cut

0.5±0.025mm

22±2mm

LiTaO3

SAW

76.2±0.2mm

36°Y Cut

0.5±0.025mm

22±2mm

Reduced LiTaO3

SAW

76.2±0.2mm

42°Y Cut

0.5±0.025mm

22±2mm

LiTaO3

SAW

76.2±0.2mm

42°Y Cut

0.5±0.025mm

22±2mm

Reduced LiTaO3

SAW

76.2±0.2mm

X-112°Y Cut

0.5±0.025mm

22±2mm

LiTaO3

SAW

76.2±0.2mm

X-112°Y Cut

0.5±0.025mm

22±2mm

Reduced LiTaO3

SAW

76.2±0.2mm

X Cut

0.5±0.025mm

22±2mm

LiTaO3

Optical

100±0.2mm

36°Y Cut

0.5±0.025mm

32±2mm

LiTaO3

SAW

100±0.2mm

36°Y Cut

0.5±0.025mm

32±2mm

Reduced LiTaO3

SAW

100±0.2mm

42°Y Cut

0.5±0.025mm

32±2mm

LiTaO3

SAW

100±0.2mm

42°Y Cut

0.5±0.025mm

32±2mm

Reduced LiTaO3

SAW

100±0.2mm

X-112°Y Cut

0.5±0.025mm

22±2mm

LiTaO3

SAW

100±0.2mm

X-112°Y Cut

0.5±0.025mm

22±2mm

Reduced LiTaO3

SAW

100±0.2mm

X Cut

0.5±0.025mm

22±2mm

LiTaO3

Optical



Chemical formula

LiTaO3

Molar mass

235.887 g/mol

Density

7.46 g/cm3, solid

Melting point

1,650°C (3,000°F; 1,920K)

Solubility in water

Insoluble

Crystal structure

R3c

Lattice constant

a = 515.43 pm, c = 1378.35 pm





Lithium Tantalate Compound Semiconductor Wafer For Optical Devices SAW Devices 3





Lithium Tantalate Compound Semiconductor Wafer For Optical Devices SAW Devices 4
