Fe Doped Lithium Tantalate Wafer for High-Density Holographic Information Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

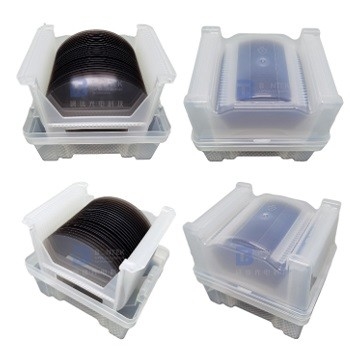

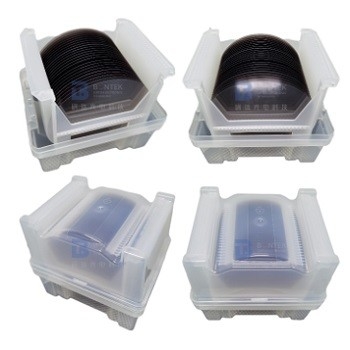

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Lithium Tantalate Wafer | Material: | Fe:LiTaO3 Doped |
|---|---|---|---|
| Cut Type: | Y-cut, Z-cut, 36Y-cut, 42Y-cut, Etc. | Surface: | DSP, SSP, Lap As Required |
| Size: | Dia. 3'', 4'', 6'' Or 50×50mm | Thickness: | 0.25mm, 0.35mm, 0.5mm, 1mm Etc. |
| Dope: | Fe2O3 Doping | Usage: | Holographic Information Storage |
| High Light: | Fe Doped Lithium Tantalate Wafer,50×50mm LiTaO3 wafer,Yellow Black Lithium Tantalate Wafer |
||
Product Description
Fe Doped Yellow Black Lithium Tantalate Wafer for High-Density Holographic Information Storage
Lithium Tantalate (LiTa03) is widely used in the optical fields for optical modulation, optical recording, and frequency conversion because of its electro-optic,acousto-optic,piezoelectric,thermal-optic and photorefractive effects. With the rapidly growing demand for higher information storage capacity, Fe doped Lithium Tantalate (Fe:LiTaO3) is introduced as a solution to high-density and high-capacity holographic information storage.
|
Product |
Ltihium Tantalate (LT) Wafer |
|
|
Diameter |
3inch |
4inch |
|
76.2mm |
100mm |
|
|
Thickness |
0.07mm up |
0.1mm up |
|
Primary Flat |
22mm |
32.5mm |
|
S/D |
20/10 |
20/10 |
|
TTV |
<3um |
<3um |
|
PLTV |
>95% |
>95% |
|
Warp |
<20um |
<40um |
|
BOW |
<20um |
<30um |
|
Ra |
<0.5nm |
<0.5nm |
|
Reduction |
Standard White |
Standard White |
|
Dope |
Fe doped |
Fe doped |
|
Properties |
LiTaO3 (LT) |
|
Type of Material |
Single Crystal |
|
Crystal Structure |
Trigonal,a = 5.154, c = 13.784Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Transmission Range |
400 – 5000 nm |
|
Absorption edge |
270nm |
|
Absorption loss |
< 0.15 %/cm @ 1064 nm |
|
Refractive Index |
no=2.176,ne=2.180(at 0.633 µm) |
|
no=2.131,ne=2.134(at 1.2 µm) |
|
|
Density |
7.45g/cm3 |
|
Thermal Conductivity |
8.78x 10-7 m2/sec |
|
Optical homogeneity |
~10-5 |
|
Hardness (Mohs) |
5 |
|
Elastic Coefficient |
CE11 2.33(X 1011 N/m2) |
|
CE33 2.77(X 1011 N/m2) |
|
|
Dielectric Constant |
ε11/ε0 52.7 |
|
ε33/ε0 44.5 |
|
|
Solubility in Water |
insoluble in water |
|
NLO Coefficients |
d33 = 13.8 pm/V |
|
d22= 2.4 pm/V |
|
|
d11= 0.85 pm/V |
|
|
Electro-Optic Coefficients |
r31 =8.4 pm/V, @633nm |
|
r22 =20 pm/V, @633nm |
|
|
r33 =30.5 pm/V, @633nm |
|
|
Damage Threshold |
2 MW/cm2@532nm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
