Z Cut LiNbO3 Wafer Optical Grade lithium niobate substrate 8 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs/Month |
|
Detail Information |
|||
| Material: | LiNbO3 Wafer | Grade: | SAW Or Optical Grade |
|---|---|---|---|
| Diameter: | 8 Inch, φ200mm | Orientation: | Z-cut, X-cut |
| Thickness: | 500um, 675um, 1000um | Surface: | DSP, SSP |
| Roughness: | Ra<0.5nm | Application: | Optical Use |
| Highlight: | Z Cut LiNbO3 Wafer,8 Inch Lithium Niobate Substrate,Optical Grade Lithium Niobate Substrate |
||
Product Description

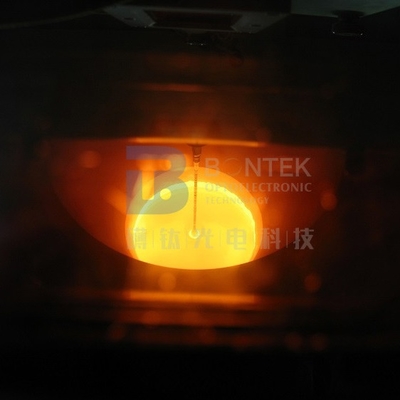

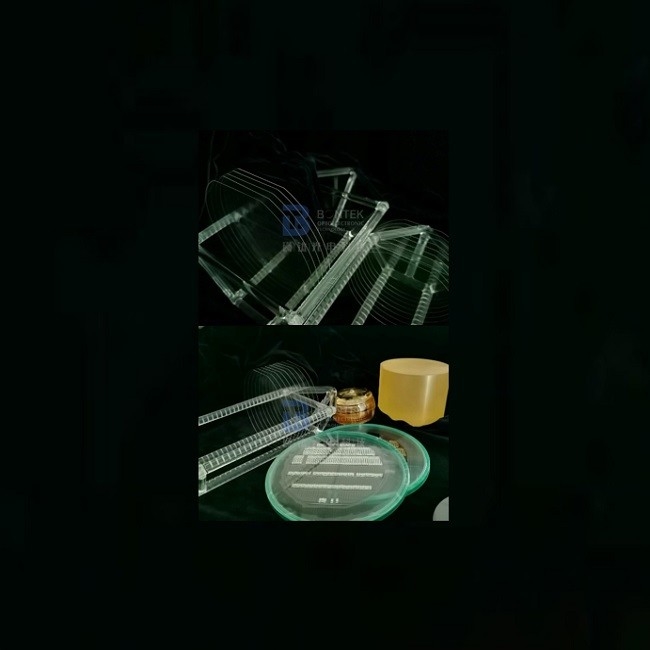

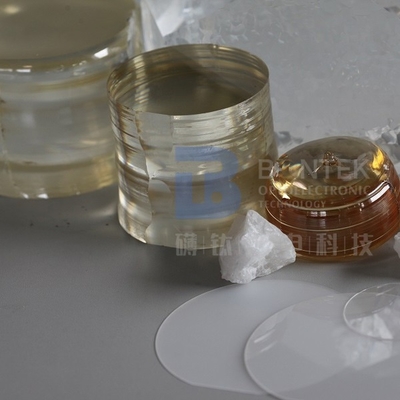

X-cut and Z-cut LiNbO3 wafer 8 inch Large Size For Optical Use
Lithium niobate is transparent between 0.25 and 5.3 μm. It can be used in visible, near IR and middle IR region. It should be noted that non-doped lithium niobate exhibits high photorefraction. Therefore in high-power laser applications, magnesium oxide-doped crystals (MgO:LiNbO3) are used. They have a higher Laser Damage Threshold. At the same time, the doping has no effect on the optical properties of the crystal.
BonTek is among the very first who can provide 8 inch LiNbO3 wafers for X-cut and Z-cut. For 6 inch LiNbO3 wafers, all cut angles are possible!
|
Material |
8" LiNbO3 wafer |
|
Orientation |
Z-cut or X-cut |
|
Surface finish |
Single or Double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.50mm, 0.675mm, 1.00mm |
|
TTV |
< 5µm |
|
BOW |
± 40um |
|
Warp |
< 80µm |
|
Orientation flats |
Semi Standard Notch |
|
Polished side Ra |
Roughness Ra<5A |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Crystal Sturucture |
Trigonal, Space group R3c, Point group 3m |
|
Melting Point |
1253℃ |
|
Mohs Hardness |
5 |
|
Density |
4.64g/cm3 |
|
Deliquescence |
None |
|
Optical Homogeneity |
~5x10-5/cm |
|
Transparency Range |
420-5200nm |
|
Absorption Coefficient |
~0.1%/cm @1064nm |
|
Refractive Indices @1064nm |
ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm |
|
Thermal Expansion Coefficients (at 25℃ ) |
//a,2.0x10-6/K //a,2.2x10-6/K |
|
Thermal Conductivity Coefficients |
38 W/m/K at 25℃ |
|
Thermal Optical Coefficients |
dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm |
|
The Sellmeier Equations (λ in μm) |
no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2 |
