Material: LiNbO3 Wafer Grade: Optical Grade, SAW Grade
Doping: Er:LN, MgO:LN, Fe:LN, Er:MgO:LN Orientation: X, Z, Z+5°, Etc.
Size: Dia. 3'', 4'', 6'', 8'' OR Squard Thickness: 0.5mm, 1mm, 2mm
Surface Finish: DSP, SSP, Lapping Ra Roughness: Ra <1nm
High Light:

4 Inch LiNbO3 Wafer

,

3 inch LiNbO3 Wafer

,

MgO dope optical wafer

Product Description

4 inch Diameter LiNbO3 Wafer 0.25mol% Er dope or 5mol% MgO dope for Optical Applications


LiNbO3 (LN) crystal has stable physical, chemical and mechanical properties, high temperature resistance, corrosion resistance, easy processing; It has a high Curie temperature (To), no phase transition from room temperature To Curie temperature, and is not easy To depolarize, can be used repeatedly; In addition, when different kinds of ions are mixed into LiNbO3 crystal, the crystal will show a variety of special properties, which can be used as optical waveguide amplifier, frequency doubling converter, optical storage medium, etc. Therefore, the research on the properties of lithium niobate crystal and doped lithium niobate crystal has been the focus of research at home and abroad.



BonTek is capable of providing doped LN wafers: Er:LN, MgO:LN and Fe:LN with customized doping dose. We can also provide black reduced LN wafers in 3 inch, 4 inch, 6 inch for all cut angles! For 128°Y and Z-cut up to 8 inch diameter.


Material

3" 4" 6" 8" LN wafer

Orientation

X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized

Curie Temp

1142°C±3°C

Dope with

Er:LN, MgO:LN, Fe:LN, Er:MgO:LN

Surface finish

Single or Double sides polish
(DLP/SLP/ SSP/DSP all available)

Thickness

0.18/0.25/0.35/0.50/1.00 + mm

TTV

< 1~5µm

BOW

± (25µm ~40um )

Warp

<= 35µm

LTV (5mmx5mm)

<1.5 um

PLTV(<0.5um)

≥98% (5mm*5mm)  with 2mm edge excluded

Edge

Compl't with SEMI M1.2@with GC800#  .regular at C typed

Orientation flats

available, per request

Polished side Ra

Roughness Ra<=5A

Back Side Criteria

Roughness Ra:0.5-1.0µm GC#1000

Edge Rounding

Compliant with SEMI M1.2 Standard/refer to IEC62276

Cracks, saw marks, stains

None



Transmission Range

0.32 - 5.2 µm (thickness 6mm)

Refractive Index

no = 2.237, ne = 2.158 @633 nm

Reflection Loss

14.6% @0.633µm

Density

4.64 g/cm3

Melting point

1253°C

Molecular Weight

147.8456

Thermal Conductivity

|| C: 4.6 W/(m·K), C: 4.19 W/(m·K) (300/304K)

Spec. Heat Capacity

628 J/(kg·K)

Thermal Expansion

|| C: 14.8 · 10-6 /K, C: 4.1 · 10-6 /K @298K

Hardness (Mohs)

630

Young's Modulus

170 GPa

Shear Modulus

68 GPa

Bulk Modulus

112 GPa

Elastic Coefficient

C11 = 202; C12 = 55; C13 = 71; C14 = 3.8; C33 = 242; C44 = 60.1; C66 = 8.3 GPa

Dielectric Constant

82 @298K

Solubility in Water

unsoluble

Crystal Structure

Single crystal, synthetic

Crystal Type

hexagonal, a = 5.15 Å, c = 13.86 Å

Cleavage Planes

no cleavage

Poisson Ratio

0.25

Application

electro optic Q-switch, surface acoustic wave substrate, integrated optical substrate, optical parametric oscillator

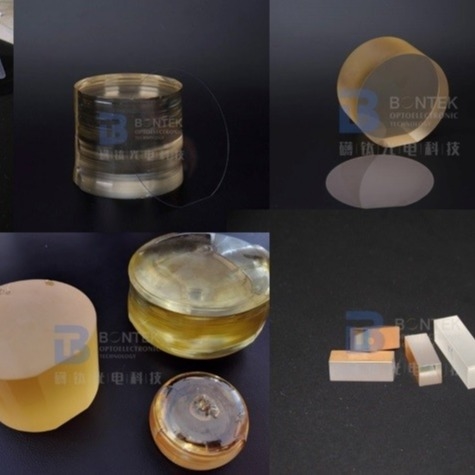

4 Inch LiNbO3 Wafer MgO Dope Optical Wafer Crystal High Temperature Resistance 04 Inch LiNbO3 Wafer MgO Dope Optical Wafer Crystal High Temperature Resistance 14 Inch LiNbO3 Wafer MgO Dope Optical Wafer Crystal High Temperature Resistance 2

4 Inch LiNbO3 Wafer MgO Dope Optical Wafer Crystal High Temperature Resistance 3
