6'' Single Side Polish LiTaO3 Wafer For Nonlinear Optics Passive Infrared (IR) Sensors
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | LiTaO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Diameter: | 6 INCH | Orientation: | Y, Z, 28Y, 36Y, 42Y Etc. |
| Thickness: | 0.25mm, 0.35mm, 0.5mm, 1mm | Surface: | Single Side Polish |
| Roughness: | Ra<1nm | Application: | SAW, BAW |
| High Light: | 6'' LiTaO3 Wafer,SAW grade LiTaO3 Wafer,LiTaO3 polished wafer |
||
Product Description

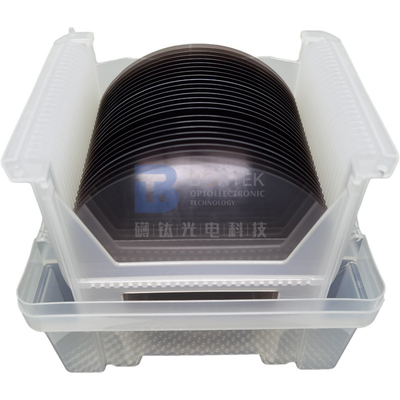

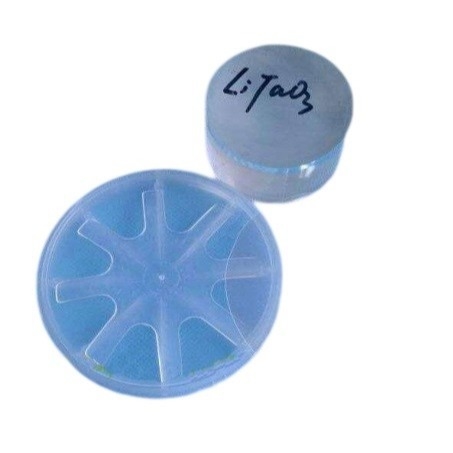

6'' Single Side Polish LiTaO3 Wafer for Nonlinear Optics, Passive Infrared (IR) Sensors
The LiTaO3 Lithium Tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates for sale at BonTek Optoelectronics.
Lithium Tantalate (LiTaO3) has a perovskite M6 crystal structure. It has unique combination of optical, piezoelectric and pyroelectric properties. The applications of lithium tantalate crystal include nonlinear optics, passive infrared (IR) sensors such as motion detectors, terahertz (THz) generation and detection, surface acoustic wave (SAW), just to name a few. Both bulk crystals and crystal substrates are available for sale at BonTek Optoelectronics. Please contact our engineers to discuss your specific requirements for lithium tantalate crystal and substrate products. Crystal orientations available: Z-cut, X-cut, Y-cut, 36Y-cut, 42Y-cut, etc.
|
Material |
3" 4" 6" LT wafer Saw/Optical grade |
||
|
Orientation |
X112°/Y28°/Y36°/Y42°/YZ or Customized |
||
|
Curie Temp |
605°C±3°C |
||
|
Doped with |
Fe |
||
|
Single Domain |
Completed Polarization / Reduced |
||
|
Orientation |
36°Y, 42°Y, X-112°Y, Y, Z |
||
|
Diameter |
76.2±0.2mm |
100±0.2mm |
150±0.2mm |
|
Primary Flat |
22±1mm |
32±1mm |
47.5mm, 57.5mm, Notch |
|
Thickness |
0.07mm~1.0mm |
0.1mm~1.0mm |
0.35mm~1.0mm |
|
Surface finish |
Single / Double side polish / Double side lapped |
||
|
TTV |
< 1~5µm |
||
|
BOW |
± (20µm ~40um ) |
||
|
Warp |
<= 20µm ~ 50µm |
||
|
LTV (5mmx5mm) |
<1.5 um |
||
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
||
|
Polished side Ra |
Roughness Ra<=5A |
||
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm, GC#1000 |
||
|
Scratch & Dig (S/D) |
20/10, 40/20, 60/40 |
||
|
Edge Profile |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
||
|
Cracks, saw marks, stains |
None |
||
|
Chemical formula |
LiTaO3 |
|
Molar mass |
235.887 g/mol |
|
Density |
7.46 g/cm3, solid |
|
Melting point |
1,650°C (3,000°F; 1,920K) |
|
Solubility in water |
Insoluble in water |
|
Crystal structure |
Space group R3c |
|
Lattice constant |
a = 515.43 pm, c = 1378.35 pm |
