Magnesium Fluoride MgF2 Infrared Windows Lenses For Uses From UV To Infrared
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Magnesium Fluoride (MgF2) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Magnesium Fluoride (MgF2) | Category: | Infrared Optics |
|---|---|---|---|
| Diameter: | 5mm - 200mm | Thickness: | 3mm - 50mm |
| Transmission Range: | 0.12um - 7.00um | Density: | 3.18 Gm/cc |
| Refractive Index: | 1.37608 @ 0.7 Microns (2 Surfaces) | Reflection Loss: | 5.2% @ 0.6 Microns (2 Surfaces) |
| High Light: | MgF2 Infrared Windows,Infrared Lenses From UV To Infrared,Magnesium Fluoride Infrared Windows |
||
Product Description

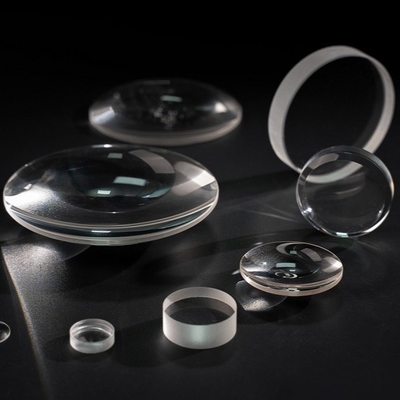

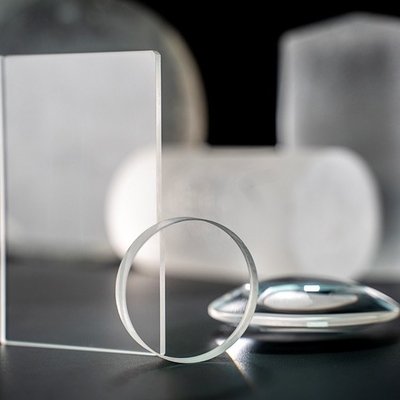

Magnesium Fluoride MgF2 Infrared Optics Windows Lenses for uses from UV to Infrared
Magnesium Fluoride has high transmittance from 200nm - 700nm. It is commonly used for windows, lenses and other optical components for its range of uses from UV to Infrared. It offers higher resitance to water than similar fluorides and is utilized in systems where durability is important.

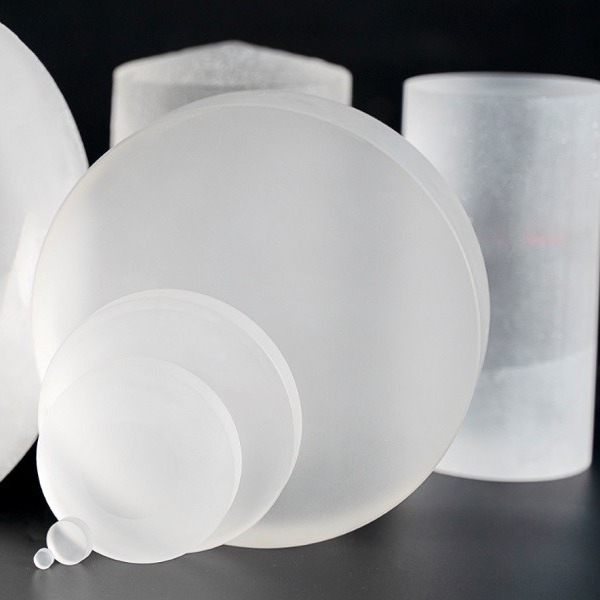

BonTek provides optical MgF2 material in single-crystal optical quality, fabricated to order.
|
Substance |
Form |
Diameter Range |
Thickness Range |
Transmission Range (µm) |
Surface Finish |
|---|---|---|---|---|---|
| Magnesium Fluoride | Single Crystal | 5mm - 200mm | 3mm - 50mm | 0.12 - 7.00 | Fine Ground / Optical Polish |
Material Properties
|
Transmission Range |
0.12 - 7.0 microns |
|
Refractive Index |
1.37608 @ 0.7 microns (2 surfaces) |
|
Reflection Loss |
5.2% @ 0.6 microns (2 surfaces) |
|
Absorption Coefficient |
40 x 10-3 @ 2.7µm |
|
Energy Gap |
11eV |
|
Density |
3.18 gm/cc |
|
Melting Point |
1585°C |
|
Poisson Ratio |
0.271 |
|
Hardness |
415 Knoop |
|
Crystal Structure |
Tetragonal |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
