Barium Fluoride Infrared Optics Subsrate for Optical Scintillation Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Barium Fluoride (BaF2) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |

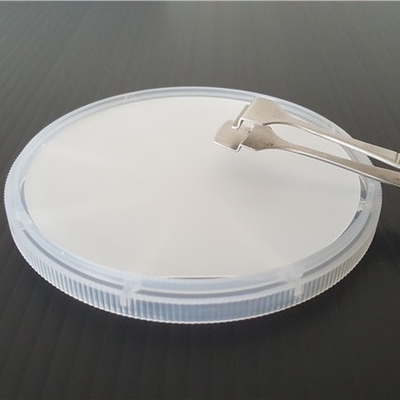

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Category: | Infrared Optics | Material: | Barium Fluoride, BaF2 |
|---|---|---|---|
| Orientation: | <111> | Density: | 4.88 G/cm3 |
| Melting Point (K): | 1627 | Hygroscopic: | Slightly |
| Transmission Range: | 0.15um - 14.00um | Hardness (Mhos): | 3 |
| High Light: | Barium Fluoride Infrared Optics,Barium Fluoride infrared lenses,14.00um Infrared Optics |
||
Product Description

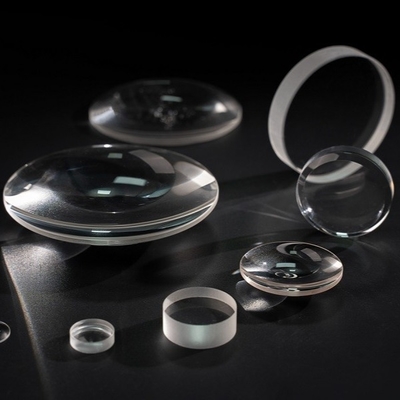

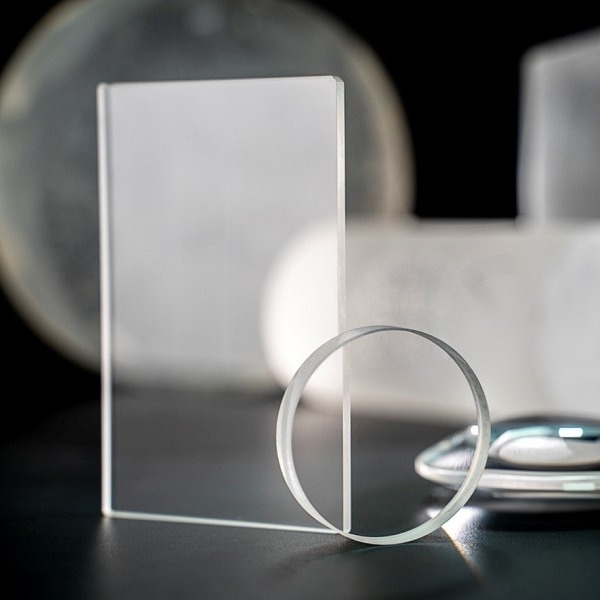

Customized Barium Fluoride Infrared Optics Subsrate for Optical Scintillation Applications
Barium Fluoride is a salt compound of barium and fluorine. In crystal form, it is optically transparent over a wide range from the UV through to the IR and widely used to fabricate optical components. BaF2 barium fluoride scintillation crystals are characterized by a very fast scintillation emission with a decay time of 800 ps at 220 nm. The emission at 220nm has an emission with sub-nanosecond decay time interesting for timing applications.
|
Substance |
Form |
Diameter Range |
Thickness Range |
Transmission Range (µm) |
Surface Finish |
|---|---|---|---|---|---|
| Barium Fluoride | Single Crystal | 5mm - 200mm | 1mm - 50mm | 0.15 - 14.00 | Fine Ground / Optical Polish |
Material Properties
|
Density (g/cm3) |
4.88 |
|
Melting Point (K) |
1627 |
|
Thermal Expansion Coefficient (C-1) |
18.4 x 10-6 |
|
Cleavage Plane |
<111> |
|
Hardness (Mhos) |
3 |
|
Hygroscopic |
Slightly |
|
Wavelength of Emission Max. (nm) |
310 / 220(195) |
|
Lower Wavelength Cutoff (nm) |
135 |
|
Refractive Index @ Emission Max. |
150(310nm) 1.54(220nm) |
|
Primary Decay Time (ns) |
630 (slow) / 0.6-0.8 (fast) |
|
Light Yield (photons/KeV) |
10 (slow) / 1.8 (fast) |
|
Photoelectron Yield (% of NaI(Tl)) (for γ-rays) |
16 (slow) / 3 (fast) |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
