Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time

Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: Barium Fluoride (BaF2)

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pieces/Month
Get Best Price Contact Now

Detail Information

Category: Infrared Optics Material: Barium Fluoride, BaF2
Orientation: <111> Light Yield (photons/KeV): 10 (slow) / 1.8 (fast)
Primary Decay Time (ns): 630 (slow) / 0.6-0.8 (fast) RefractiSlightlyve Index @ Emission Max.: 150(310nm) 1.54(220nm)
Lower Wavelength Cutoff (nm): 135 Wavelength Of Emission Max. (nm): 310 / 220(195)
High Light:

135nm BaF2 Optics

,

Barium Fluoride Optics

,

4.88g/cm3 BaF2 Optics

Product Description

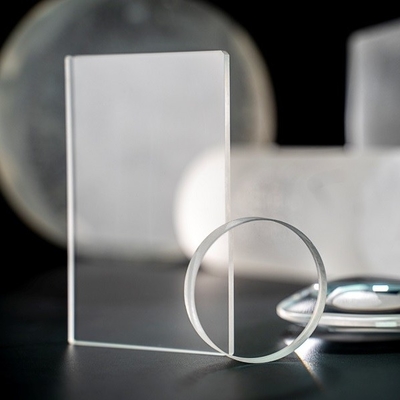

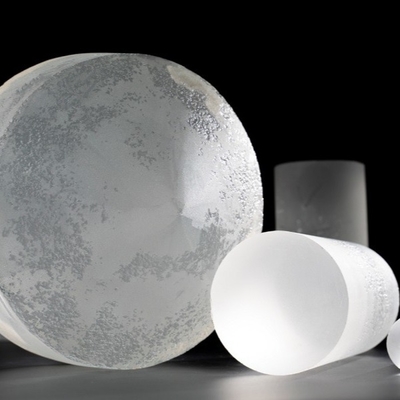

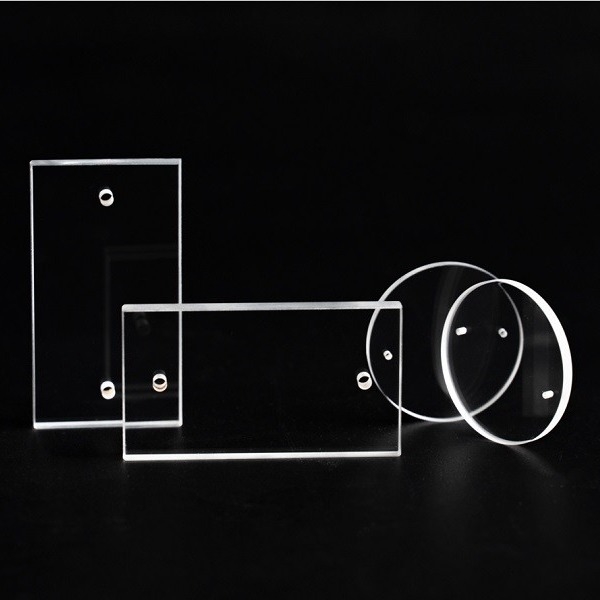

Customized Barium Fluoride Infrared Optics with Sub-Nanosecond Decay Time



Barium Fluoride is a salt compound of barium and fluorine. In crystal form, it is optically transparent over a wide range from the UV through to the IR and widely used to fabricate optical components. BaF2 barium fluoride scintillation crystals are characterized by a very fast scintillation emission with a decay time of 800 ps at 220 nm. The emission at 220nm has an emission with sub-nanosecond decay time interesting for timing applications.



Features:

- Subnanosecond decay time

- Two wavelengths of emission (310 nm and 295 nm)



Density (g/cm3)

4.88

Melting Point (K)

1627

Thermal Expansion Coefficient (C-1)

18.4 x 10-6

Cleavage Plane

<111>

Hardness (Mhos)

3

Hygroscopic

Slightly

Wavelength of Emission Max. (nm)

310 / 220(195)

Lower Wavelength Cutoff (nm)

135

Refractive Index @ Emission Max.

150(310nm) 1.54(220nm)

Primary Decay Time (ns)

630 (slow) / 0.6-0.8 (fast)

Light Yield (photons/KeV)

10 (slow) / 1.8 (fast)

Photoelectron Yield (% of NaI(Tl)) (for γ-rays)

16 (slow) / 3 (fast)



Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time 0Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time 1Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time 2



Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time 3



Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time 4





Acceptance Check

Customized Barium Fluoride BaF2 Optics With Sub-Nanosecond Decay Time 5



1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.



3. Please open the vacuum package in a clean room when the products are to be applied.



4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
