Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: CaF2, BaF2, MgF2, LiF

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pieces/Month
Get Best Price Contact Now

Detail Information

Category: Infrared Optics Material: Barium Fluoride, BaF2
Orientation: <111> Light Yield (photons/KeV): 10 (slow) / 1.8 (fast)
Primary Decay Time (ns): 630 (slow) / 0.6-0.8 (fast) RefractiSlightlyve Index @ Emission Max.: 150(310nm) 1.54(220nm)
Lower Wavelength Cutoff (nm): 135 Wavelength Of Emission Max. (nm): 310 / 220(195)
High Light:

CaF2 Fluoride Crystal

,

LiF barium fluoride crystal

,

BaF2 Fluoride Crystal

Product Description

Fluoride Crystal CaF2 BaF2 MgF2 LiF used in Laser Infrared Ultraviolet and High-energy Detection



Fluoride optical crystal products include calcium fluoride (CaF2), barium fluoride (BaF2), lithium fluoride (LiF) and other alkaline earth metal ion fluoride crystals. The range of transmittance of this series of crystals is 0.11~12.5 um, which makess them excellent ultraviolet and infrared optical materials. They are widely used as infrared window, optical lens, prism, wave plate, objective lens and other optical applications.



Calcium fluoride (CaF2) has good mechanical strength and moisture resistance, and it has a high transmittance in the band 0.13um~11um. It is used in laser, infrared, ultraviolet and high-energy detection fields. It is also a high-quality material for making optical components such as optical prism, lens and window. Its operating temperature under atmospheric pressure can reach 600℃, vacuum drying can reach 800℃. Barium fluoride (BaF2) is widely used in infrared window, ultraviolet window and prism. Lithium fluoride (LiF) is the material with the best transmittance in the vacuum ultraviolet region, and it is widely used to manufacture optical Windows, lenses, prisms and refraction elements in the UV-visible-infrared field.



Product:

Single crystal calcium fluoride (CaF2) wafer

Purity:

> 99.99%

Material property:

Crystal structure: cubic

Lattice constant: a = 5.4626 Å

Density: 3.18 g/cm3

Melting point: 1360 °C

Dimension:

• 5 × 5 × 0.5 mm

• 10 × 10 × 0.5 mm

• Other sizes customizable

Orientation:

<100> / <110> / <111>

Polishing:

Single side / double side epi-polished

Surface roughness:

< 1 nm





Product:

Single crystal magnesium fluoride (MgF2) wafer

Material property:

Crystal structure: tetragonal

Lattice constant: a = 4.64 Å, c = 3.06 Å

Density: 3.18 g/cm3

Melting point: 1255 °C

Dimension:

• 5 × 5 × 0.5 mm

• 10 × 10 × 0.5 mm

• Other sizes customizable

Orientation:

<100> / <001> / <110> / <111>

Polishing:

Single side / double side epi-polished

Surface roughness:

< 0.5 nm

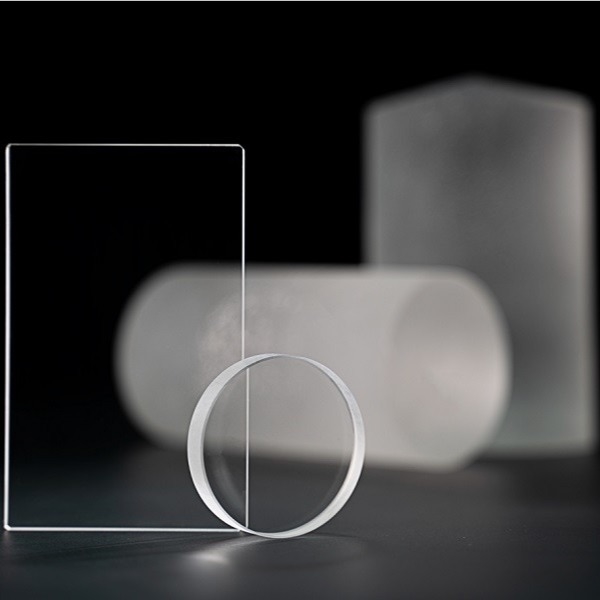

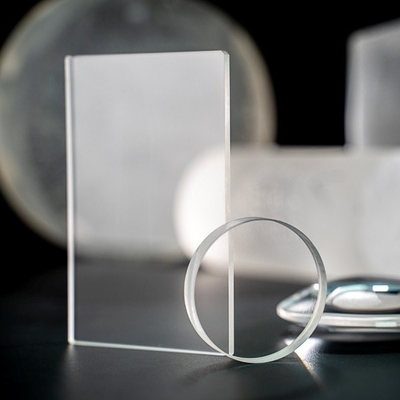

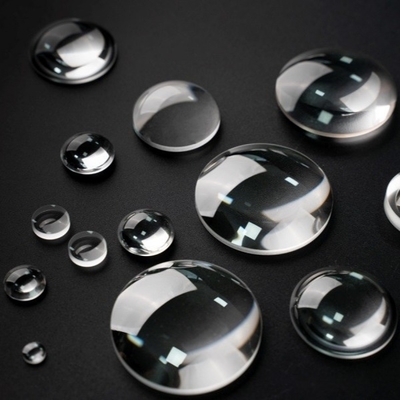

CaF2 BaF2 MgF2 LiF Fluoride Crystal Used In High-Energy Detection 0CaF2 BaF2 MgF2 LiF Fluoride Crystal Used In High-Energy Detection 1CaF2 BaF2 MgF2 LiF Fluoride Crystal Used In High-Energy Detection 2





CaF2 BaF2 MgF2 LiF Fluoride Crystal Used In High-Energy Detection 3





Acceptance Check

CaF2 BaF2 MgF2 LiF Fluoride Crystal Used In High-Energy Detection 4



1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.



3. Please open the vacuum package in a clean room when the products are to be applied.



4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
