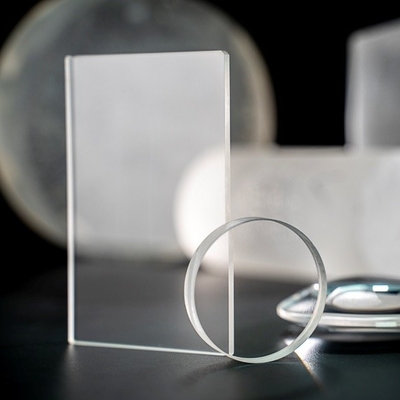

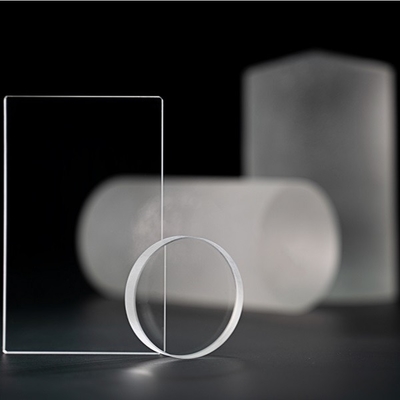

CaF2 Single Crystal Infrared Optics Widely Used For Special Optical Windows
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Calcium Fluoride (CaF2) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Category: | Infrared Optics | Material: | Calcium Fluoride CaF2 |
|---|---|---|---|
| Crystal Structure: | Cubic, A=5.462 Å | Growth Method: | Bridgeman |
| Density: | 3.18 G/cm3 | Hardness: | 4 ( Mohn) |
| Lower Wavelength Cutoff (nm): | 135 | Wavelength Of Emission Max. (nm): | 310 / 220(195) |
| High Light: | Single Crystal Infrared Optics,CaF2 infrared windows,Calcium Fluoride Infrared Optics |
||
Product Description
CaF2 Single Crystal Infrared Optics Widely Used For Special Optical Windows

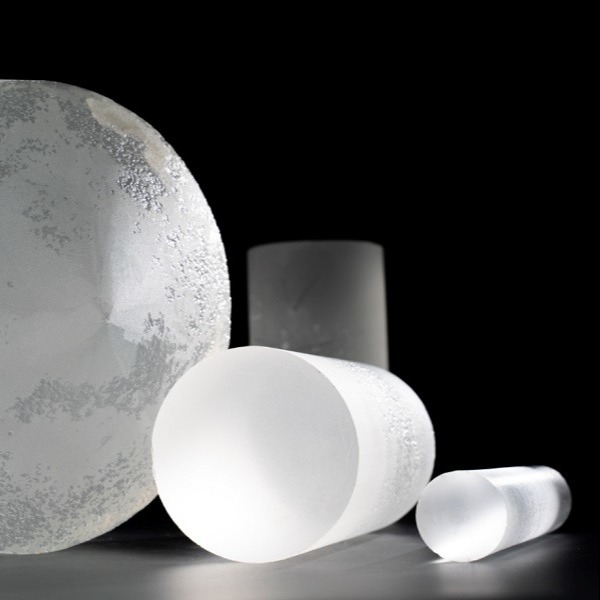

CaF2 single crystal provides a good lattice match to most materials with Perovskite structure and excellent Optical properties . It is an excellent substrate for epitaxial growth of HTS and many oxide thin films. CaF2 single crystal has also been used widely for special optical windows and as high quality sputtering target. RMJ has the full production line to manufacture first the high purity CaF2 powder, then the single crystal boules and finally the epi-polished substrates in many sizes. This allows us to provide CaF2 single crystal products with the highest quality and the lowest price to our customers all over the world.
Substrate Specifications
- Maximum Size: Diameter 4 inch, and other size call for me
- Orientation: (100) +/-0.5 Deg
- Edge orietation Indication: <001> +/-2 Deg avaiable as option.
- Polish: EPI polished by CMP tecnology with less sub-surface lattice damage.
- Surface finish (RMS or Ra): <5A
- Pack: Packed in 100 grade plastic bag under 1000 class clean room.
| Typical Physical Properties | |
| Crystal Structure | Cubic, a=5.462 Å |
| Growth Method | Bridgeman |
| Density | 3.18 g/cm3 |
| Melt Point | 1418 oC |
| Hardness | 4 ( Mohn) |
| Thermal expansion | 18.85 (x10-6/ oC) |
| Color and Appearance | Transparent (sometimes slightly brown based on annealing condition). No twins. |
| Chemical Stability | soluble in water |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
