Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared

Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: Magnesium Fluoride (MgF2)

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pieces/Month
Get Best Price Contact Now

Detail Information

Material: Magnesium Fluoride (MgF2) Category: Infrared Optics
Orientation: (100) (110) (111) +/-0.5 Deg Edge Orietation: <001> +/-2 Deg Avaiable As Option
Transmission Range: 0.12um - 7.00um Density: 3.18 Gm/cc
Refractive Index: 1.37608 @ 0.7 Microns (2 Surfaces) Reflection Loss: 5.2% @ 0.6 Microns (2 Surfaces)
High Light:

MgF2 Infrared Optics

,

Infrared Windows From UV To Infrared

,

Magnesium Fluoride Infrared Optics

Product Description

Magnesium Fluoride MgF2 Infrared Optics Windows Lenses for uses from UV to Infrared



Magnesium Fluoride has high transmittance from 200nm - 700nm. It is commonly used for windows, lenses and other optical components for its range of uses from UV to Infrared. It offers higher resitance to water than similar fluorides and is utilized in systems where durability is important.



BonTek provides optical MgF2 material in single-crystal optical quality, fabricated to order.



  • Maximum Size: Diameter 4 inch, and other size call for me
  • Orientation: (100) (110) (111) +/-0.5 Deg
  • Edge orietation Indication: <001> +/-2 Deg avaiable as option.
  • Polish: EPI polished by CMP tecnology with less sub-surface lattice damage.
  • Surface finish (RMS or Ra): <5A
  • Pack: Packed in 100 grade plastic bag under 1000 class clean room.





Typical Physical Properties

Crystal Structure

Tetragonal, a = 4.64 c=3.06

Growth Method

Bridgeman

Density

3.18 g/cm3

Melt Point

1255 oC

Hardness

6 ( Mohn)

Thermal expansion

13.7(x10-6/ oC)

Refractive index

ho 1.37740 he 1.38945

Through band

0.11 – 7.5 microns

Transmission rate

>93% @5 m
>85% @ 0.2 m

Color and Appearance

Transparent (sometimes slightly brown based on annealing condition). No twins.

Chemical Stability

soluble in water

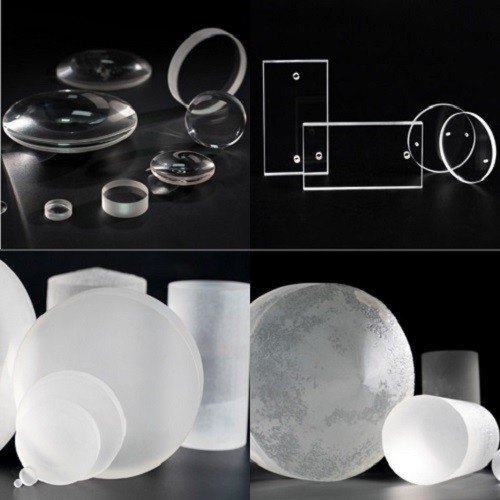

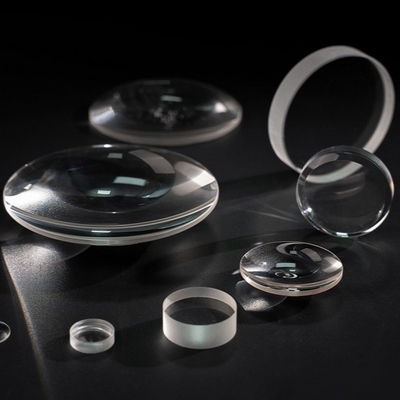

Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared 0Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared 1Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared 2



Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared 3



Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared 4





Acceptance Check

Magnesium Fluoride MgF2 Infrared Optics Windows Lenses For Uses From UV To Infrared 5



1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.



3. Please open the vacuum package in a clean room when the products are to be applied.



4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
