Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism

Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: Infrared Optics

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Negotiable
Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pieces/Month
Get Best Price Contact Now

Detail Information

Material: CaF2, BaF2, MgF2, LiF Category: Infrared Optics
Diameter: 5mm - 200mm Thickness: 1mm - 50mm
Surface Finish: Fine Ground / Optical Polish Form: Single Crystal
Refractive Index: 1.37608 @ 0.7 Microns (2 Surfaces) Reflection Loss: 5.2% @ 0.6 Microns (2 Surfaces)
High Light:

LiF Single Crystal Windows

,

CaF2 Crystal Lens

,

MgF2 Single Crystal Windows

Product Description

Customized Infrared Optics CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism



Infrared optics are used to collect, focus or collimate light in the near infrared (NIR), short wave infrared (SWIR), mid wave infrared (MWIR) or long wave infrared (LWIR) spectra. The infrared spectrum falls into the 700 – 16000 nm wavelengths, with each spectral range as follows.

NIR 700 – 900nm
SWIR 900 – 2300nm
MWIR 3000 – 5000nm
LWIR 8000 – 14000nm



Fluoride optical crystal products include calcium fluoride (CaF2), barium fluoride (BaF2), lithium fluoride (LiF) and other alkaline earth metal ion fluoride crystals. The range of transmittance of this series of crystals is 0.11~12.5 um, which makess them excellent ultraviolet and infrared optical materials. They are widely used as infrared window, optical lens, prism, wave plate, objective lens and other optical applications.



Substance Form Diameter Range Thickness Range Transmission Range (µm) Standard Surface Finish
Calcium Fluoride Single Crystal 5mm - 300mm 1mm - 50mm 0.15 - 7.00 Fine Ground / Optical Polish
Barium Fluoride Single Crystal 5mm - 200mm 1mm - 50mm 0.15 - 14.00 Fine Ground / Optical Polish
Magnesium Fluoride Single Crystal 5mm - 200mm 3mm - 50mm 0.12 - 7.00 Fine Ground / Optical Polish
Lithium Fluoride Single Crystal 5mm - 250mm 1 - 100mm 0.12 - 6.00 Fine Ground / Optical Polish

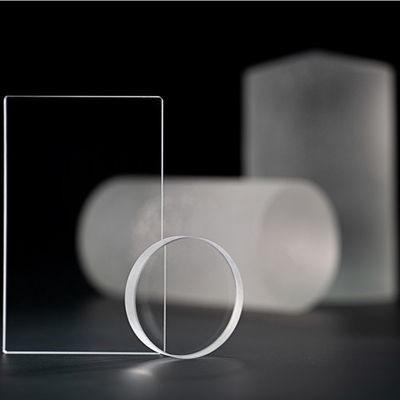

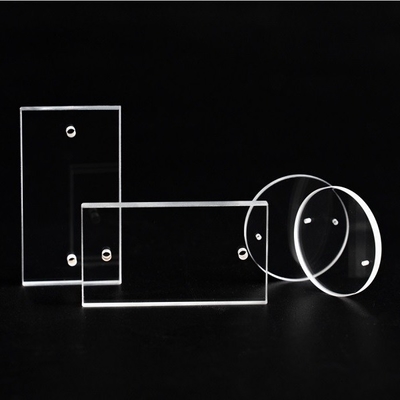

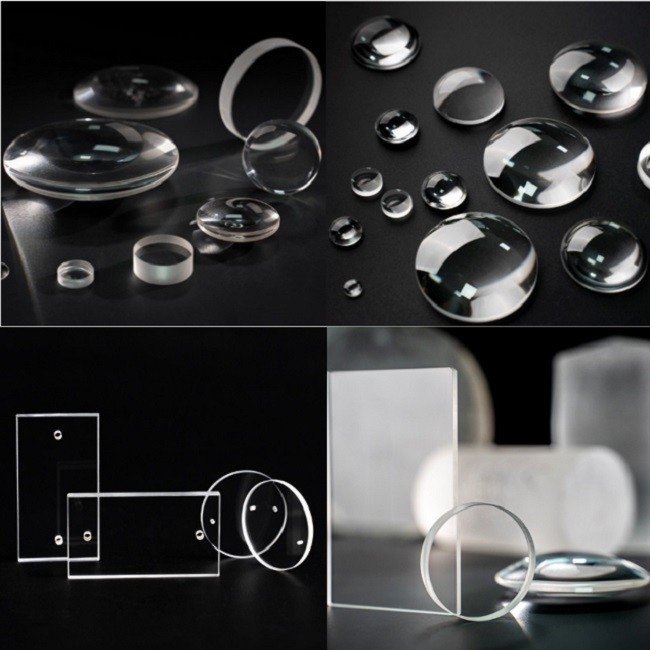

Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism 0Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism 1Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism 2





Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism 3





Acceptance Check

Customized CaF2 BaF2 MgF2 LiF Single Crystal Windows Lens Prism 4



1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.



3. Please open the vacuum package in a clean room when the products are to be applied.



4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
