Inorganic Chemical Compound LYSO Scintillation Crystal Use As A Scintillator Crystal
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | LYSO Scintillation Crystal |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | LYSO Scintillation Crystal | Density(g/cm3): | 7.4 |
|---|---|---|---|
| Effective Atomic Number: | 66 | Radiation Length(cm): | 1.1 |
| Decay Constant (ns): | 40-44 | Peak Emission (nm): | 428 |
| Light Yield (Relative BGO=100%): | 190 | Index Of Refraction: | 1.82 |
| High Light: | Chemical Compound LYSO Scintillation Crystal,428nm LYSO Scintillator Crystal,Inorganic LYSO Scintillation Crystal |
||
Product Description

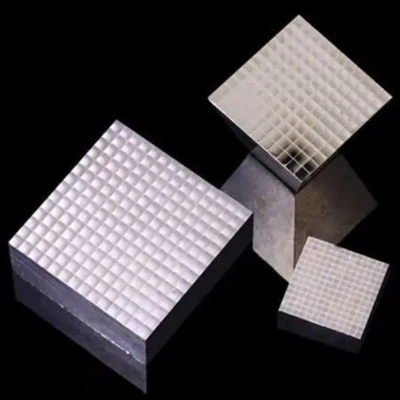

Inorganic Chemical Compound LYSO Scintillation Crystal Use As A Scintillator Crystal
Lutetium-yttrium oxyorthosilicate, also known as LYSO, is an inorganic chemical compound with main use as a scintillator crystal. Its chemical formula is Lu2(1-x)Y2xSiO5.
Lutetium-yttrium oxyorthosilicate, also known as LYSO, is an inorganic chemical compound with main use as a scintillator crystal. Its chemical formula is Lu2(1-x)Y2xSiO5. It is commonly used to build electromagnetic calorimeters in particle physics. LYSO crystals have the advantages of high light output and density, quick decay time, excellent energy resolution.
The biggest application fields are the major used in life science is PET (positron emission computed tomography (ct) imaging device), including clinical medicine, drugs and pharmacokinetics, biological experiments, such as health care.
Physical Property List:
|
Density(g/cm3) |
7.4 |
|
Effective Atomic Number |
66 |
|
Radiation length(cm) |
1.1 |
|
Decay Constant (ns) |
40-44 |
|
Peak Emission (nm) |
428 |
|
Light Yield (Relative BGO=100%) |
190 |
|
Index of Refraction |
1.82 |
|
Peak excitation (nm) |
375 |
|
Radiation Hardness (rad) |
>106 |
|
Melting Point (°C) |
2050 |
|
Hardness (Mohs) |
5.8 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
