Monoclinic Cerium-Doped LYSO Scintillation Crystal For Ray Detection Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | LYSO Scintillation Crystal |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pieces/Month |
|
Detail Information |
|||
| Material: | LYSO Scintillation Crystal | Density(g/cm3): | 7.4 |
|---|---|---|---|
| Effective Atomic Number: | 66 | Radiation Length(cm): | 1.1 |
| Decay Constant (ns): | 40-44 | Melting Point (°C): | 2050 |
| Hardness (Mohs): | 5.8 | Photoelectron Yield (% Of NaI(Tl) ): | 75 |
| High Light: | Cerium-Doped LYSO Scintillation Crystal,Scintillator Monoclinic Crystal,Monoclinic LYSO Scintillation Crystal |
||
Product Description

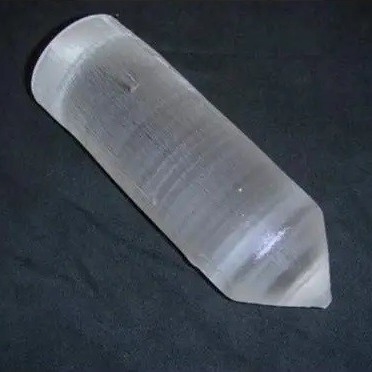

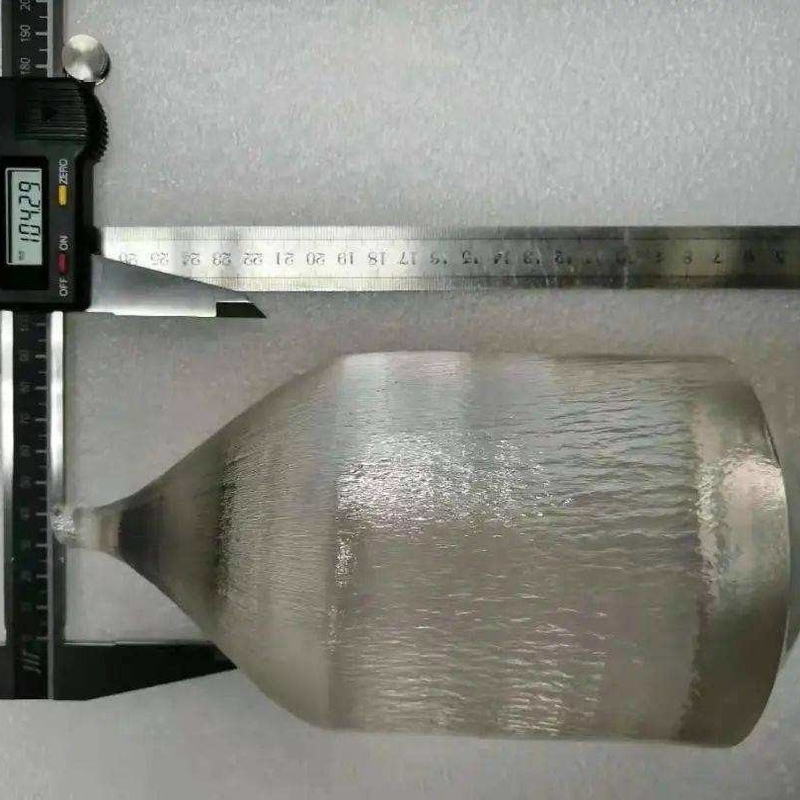

Monoclinic Cerium-doped LYSO Scintillation Crystal for Ray Detection Applications
LYSO (Ce) (Cerium-doped lutetium yttrium silicate) is a monoclinic crystal. LYSO (Ce) Scintillation Crystal is a new type of scintillation crystal material. LYSO (Ce) is the best combination of properties at present. The advantages of high light output and quick decay time make it an ideal candidate for a range of ray detection applications in nuclear physics and nuclear medicine.
LYSO(Ce) Scintillation Crystal emits 420 nm light and couples well with PMT under the stimulation of high energy. It also has the advantage of high light yield, short decay time, high density, non-deliquescence, and all-around stable physical and chemical properties. Owing to its excellent time and energy resolution, LYSO(Ce) Scintillation Crystal is widely used in nuclear medicine and nuclear physics.
LYSO (Ce) Scintillation Crystal Applications:
- Positron emission tomography (PET)
- High energy physic
- Industrial CT& Medical XCT
- Security scanning
- Scintillator crystal
|
Density (g/cm3) |
7.4 |
|
Radiation Length (cm) |
1.1 |
|
Effective Atomic Number |
66 |
|
Decay Constant (ns) |
40-44 |
|
Light Yield (Relative BGO=100%) |
190 |
|
Index of Refraction |
1.82 |
|
Wavelength of Max Emission (nm) |
420 |
|
Radiation Hardness (rad) |
>106 |
|
Melting Point (°C) |
2050 |
|
Hardness (Mohs) |
5.8 |
|
Hygroscopic |
No |
|
Crystal Structure |
Mono |
|
Photoelectron Yield |
75 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
