Sapphire Al2O3 Crystal Substrate 2'' 3'' 4'' Double Side Polished For Optical Use
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |

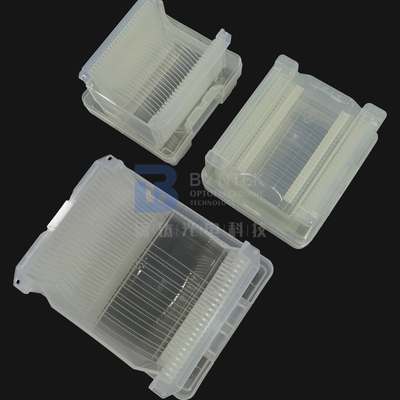

| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Sapphire (Al2O3) Crystal | Type: | Single Crystal |
|---|---|---|---|
| Color: | White / Red / Blue | Purity: | 99.999％ |
| Surface: | Double Side Polish | VIS Range: | 85% |
| Application: | Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics | Industry: | Led，optical Glass，eli-ready Wafer |
| Highlight: | Al2O3 Crystal 2'',Sapphire Substrate 4'',Al2O3 Crystal 3'' |
||
Product Description

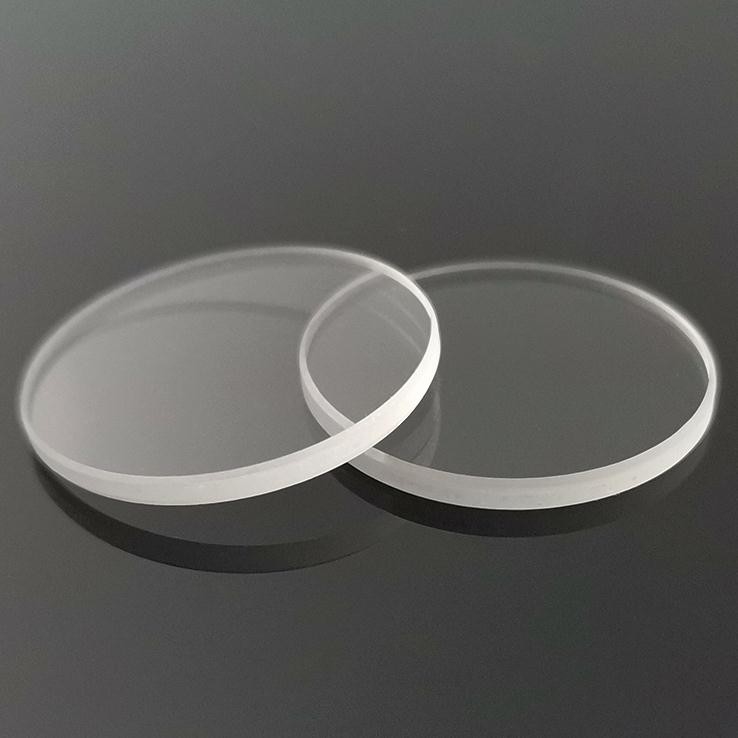

Sapphire Al2O3 Crystal Substrate Ultrathin 2'' 3'' 4'' Double Side Polished For Optical Use
Single crystal sapphire Al2O3 possesses a unique combination of excellent optical, physical and chemical properties. These properties encourage its wide use of Sapphire Al2O3 optics in hostile environments where optical transmission in the range from the visible to the near infrared is required. The main application of optical sapphire is large aperture windows, viewports, illuminators for common-aperture optical systems (visible+IR) what make sapphire the top actual material due to its optical and mechanical properties.

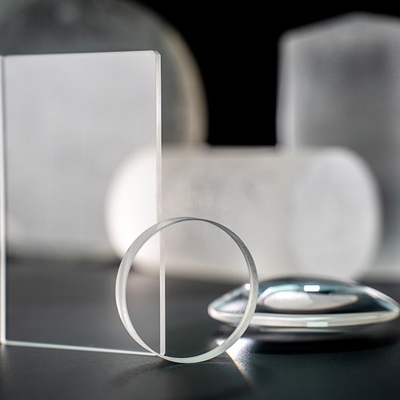

Sapphire products are used in many fields as optical details (windows, plates, light guides and lenses, especially sapphire plane-parallel plates - windows, optical high-temperature substrates, exact mechanics details, bulbs of high pressure lamps and so on.
OPTICAL PROPERTIES
|
Transmission Range |
0.17 to 5.5 microns |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 microns |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Index of Absorption |
0.3 x 10-3 cm-1 at 2.4 microns |
|
dN/dT |
13.7 x 10-6 at 5.4 microns |
|
dn/dm = 0 |
1.5 microns |
PHYSICAL PROPERTIES
|
Density |
3.97 g/cm3 |
|
Melting Point |
2040 degrees C |
|
Thermal Conductivity |
27.21 W/(m x K) at 300 K |
|
Thermal Expansion |
5.6 x 10 -6 /K (parallel C-axis) & 5.0 (perpendicular C-axis) x 10 -6 /K |
|
Hardness |
Knoop 2000 kg/mm 2 with 2000g indenter |
|
Specific Heat Capacity |
419 J/(kg x K) |
|
Dielectric Constant |
11.5 (parallel C-axis) 9.4 (perpendicular C-axis) at 1MHz |
|
Young's Modulus (E) |
335 GPa |
|
Shear Modulus (G) |
148.1 GPa |
|
Bulk Modulus (K) |
240 GPa |
|
Elastic Coefficients |
C11=496 C12=164 C13=115 |
|
Apparent Elastic Limit |
275 MPa (40,000 psi) |
|
Poisson Ratio |
0.25 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
