4'' Double Side Polished Wafer Single Crystal Quartz AT-Cut For Resonators

4'' Double Side Polished Wafer Single Crystal Quartz AT-Cut For Resonators

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: Single Crystal Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable

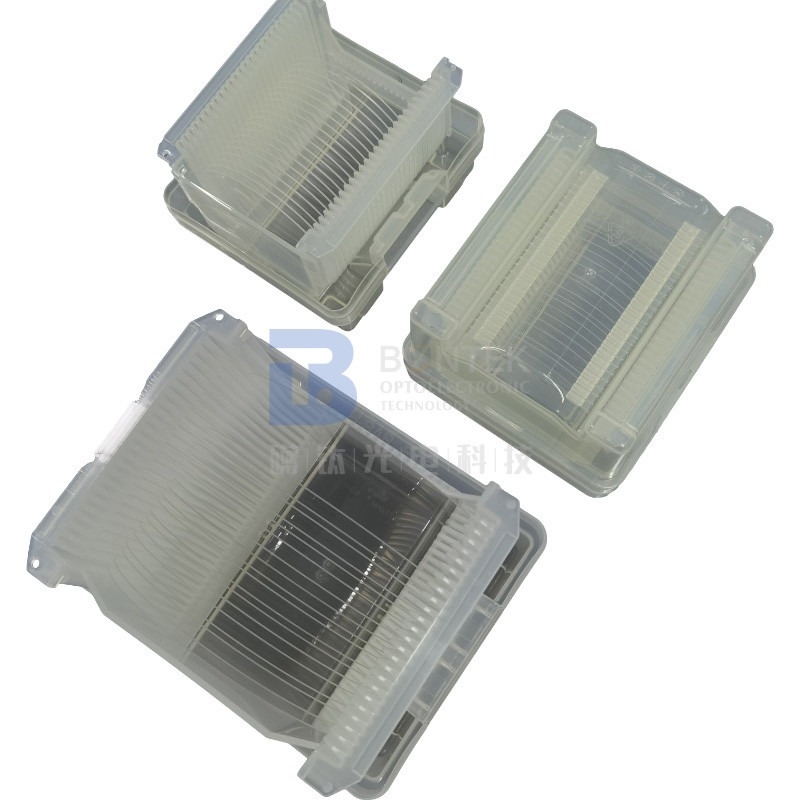

Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 100000 pcs / Month
Get Best Price Contact Now

Detail Information

Product: Single Crystal Quartz Size: 4 Inch
Cut Angle: X, Y, Z Cut Thickness: 0.5mm, 1mm
Surface: Double Side Polish Application: Resonators, Oscillators And Filters
Seed: Seedless / Withseed Grade: SAW / Optical
High Light:

4'' Double Side Polish Wafer

,

double side polished Wafer AT-Cut

,

Resonators Single Crystal Quartz Wafer

Product Description

4'' double side polish Single Crystal Quartz Wafer AT-Cut for Resonators, Oscillators and Filters

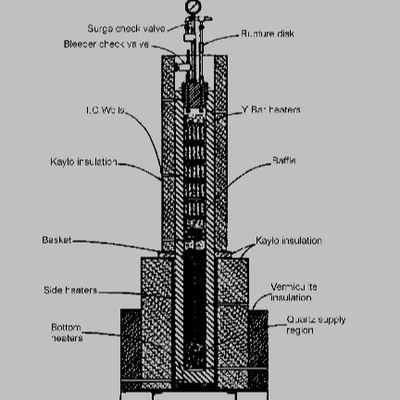

Quartz Crystals are formed thanks to hydrothermal synthesis. Production takes place in a thick pressure vessel in thermal jacket and heating coils. The first step is to add crushed feeding quartz and filling the vessel with NaOH solution. The quartz seed crystals are suspended from the top. The NaOH solution is heated to a temperature of over 300°C and pressure >1000 bars. Quartz crystals can reach large sizes and weight up to several kilograms, then they are cut (X-Cut, Y-Cut, AT-Cut, ST-Cut, etc.) and polished.





Thickness range 0.5 mm, 1.0 mm , other thicknesses down to 0.1 mm on request
Thickness tolerance +/-5%
Orientation X-Cut, Y-Cut, AT-Cut, ST-Cut
Surface finishing double/single sided polishing
Diameter ranging 2”, 3”, 4”, 6”, 8”
Grade UV, optical, semiconductor
Resistivity 7 × 10^7 Ohm-cm
Roughness Ra < 0.5 nm
Rq < 1.0 nm
Rt < 2.0 nm
Refractive index 1.458



4'' Double Side Polished Wafer Single Crystal Quartz AT-Cut For Resonators 04'' Double Side Polished Wafer Single Crystal Quartz AT-Cut For Resonators 1



4'' Double Side Polished Wafer Single Crystal Quartz AT-Cut For Resonators 2





FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

4'' Double Side Polished Wafer Single Crystal Quartz AT-Cut For Resonators 3



  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
