Φ100mm 0.5mm Thick Single Crystal Quartz Wafer X-cut Y-cut for Pressure Sensor



Quartz is a crystalline form of silicon dioxide (SiO2). It is a hard, brittle, transparent material with a density of 2649 kg/m3 and a melting point of 1750° C. Quartz is insoluble in ordinary acids, but soluble in hydrofluoric acid and in hot alkalis. When quartz is heated to 573° C, its crystalline form changes. The stable form above this transition temperature is known as high-quartz or beta-quartz, while the stable form below 573° C is known as low-quartz or alpha-quartz. For resonator applications, only alpha-quartz is of interest and unless stated otherwise the term quartz in the sequel always refers to alpha-quartz. Quartz is an abundant natural material, but considerable labor is required to separate good quality from poor-quality natural quartz. Although silicon (mainly in the form of dioxide, and generally as small quartz crystallites) comprises approximately one third of earth’s crust, natural quartz of size and quality suitable for use in devices employing its piezoelectric properties, has been found principally in Brazil.



Typical Material Properties
 Purity

Optical grade: 99.99%

 Crystal Structure and lattice   parameters

Hexagonal

a= 4.914 Å

c = 5.405 Å

 Growth Method

Hydrothermal method

 Hardness

7.0 Mohs

 Density

2.684 g/cm3

 Melt Point

1750 deg C (phase transition point: 573.1 °C)

 Specific heat

0.18 cal/g

 Thermoelectric Constant

1200 mV / °C @ 300 °C

 Thermal conductivity

0.0033 cal/cm/ °C

 Thermal expansion coefficient,   (CTE) (x10^-6/ K)

perpendicular to Z axis: 13.71

parallel to Z axis: 7.48

 Refractive Index

1.544

 Q value

 Acoustic velocity, SAW   Frequency constant, BAW   Piezoelectric coupling,

1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6

3160 ( m/sec ) 1661 ( kHz/mm )

K2 (%) BAW: 0.65 SAW: 0.14

 Inclusion

IEC Grade II



 Diameter

25.4mm, 50.8mm, 76.2mm, 100.0mm

 Tolerance

±0.2mm

 Thickness

325um, 500um, 525um, 675um

 Tolerance

±25um

 Orientation

X0°, Y0°, 35.15°Y, 42.75°Y, 52°Y, Z+2°

 Tolerance

±7’, ±15’, ±30’

 TTV

≤10um

 LTV

≤2.0um within an area of 5×5mm

 PLTV

≥95% (3mm from edge excluded)

 BOW

-25um ≤Bow≤ +25um

 Warp

<30um

 Top side

Ra<1nm

 Back side

GC#1000 lapped, 0.2um≤Ra≤0.7um

 Seed

With seed, Seedless

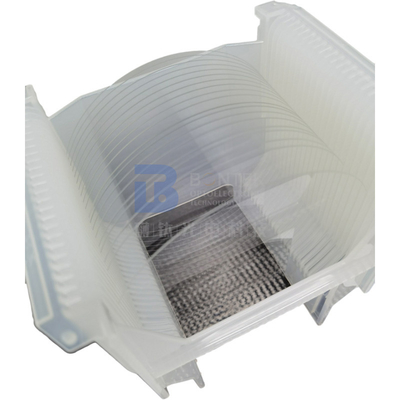

Φ100mm 0.5mm Single Crystal Quartz Wafer X-cut Y-cut for Pressure Sensor 0Φ100mm 0.5mm Single Crystal Quartz Wafer X-cut Y-cut for Pressure Sensor 1

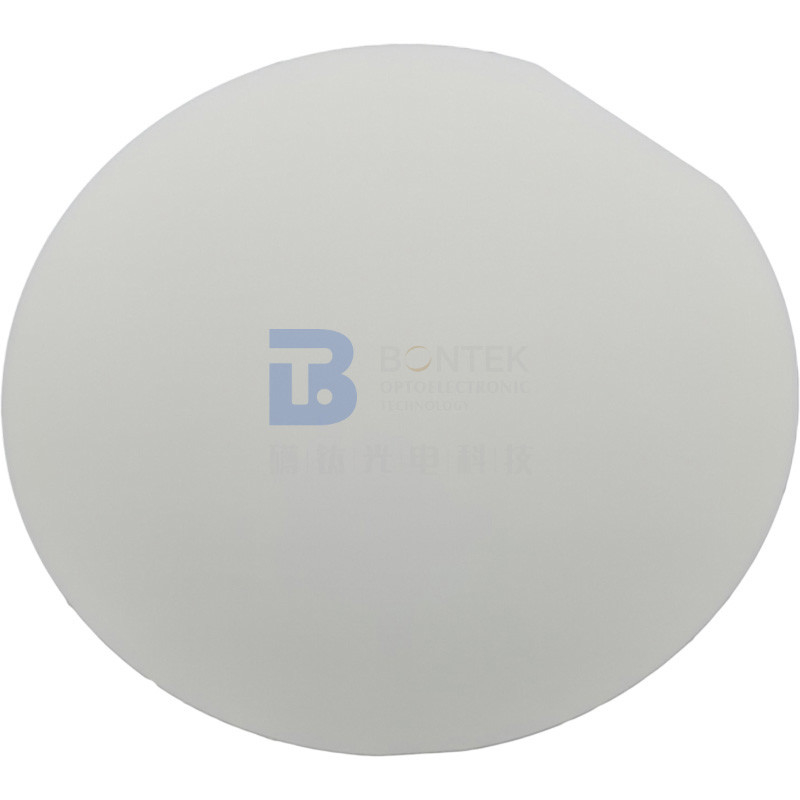

Φ100mm 0.5mm Single Crystal Quartz Wafer X-cut Y-cut for Pressure Sensor 2
