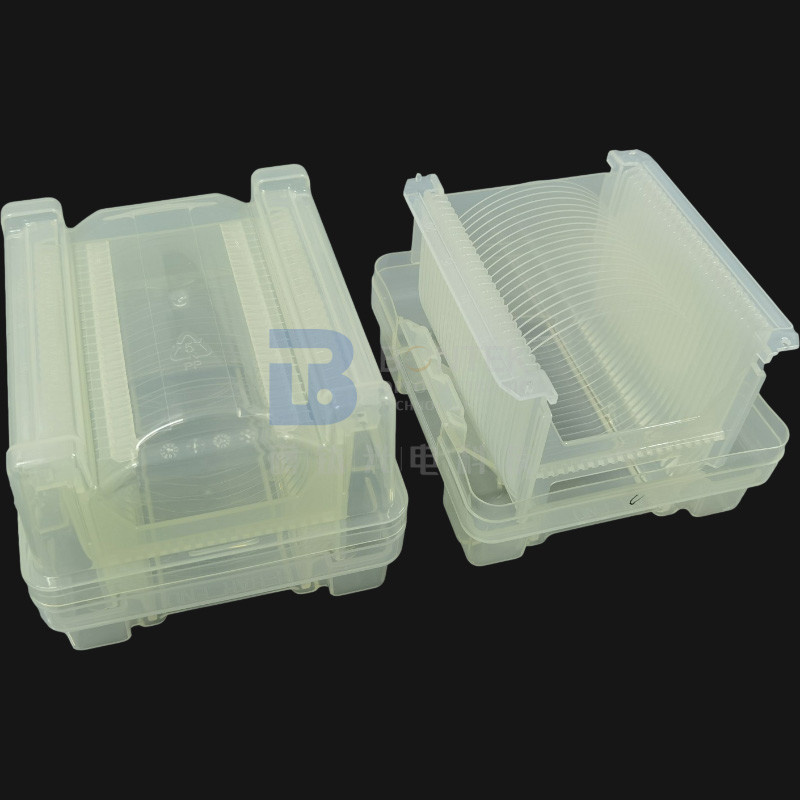

Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 100000 pcs / Month
Get Best Price Contact Now

Detail Information

Product: Single Crystal Quartz Dia.: 2inch 3inch 4inch 6inch 8inch
Cut: X, Y, Z, AT, ST, BT, DT, IT Thickness: 0.5mm, 1mm, 2mm
Surface Finish: DSP, SSP Application: Surface Acoustic Wave
Ra: <1nm Cleaness: Class 1000
High Light:

Single Crystal Quartz Wafer 2inch

,

Piezoelectric Wafer 6inch

,

Single Crystal Quartz Wafer 2inch

Product Description

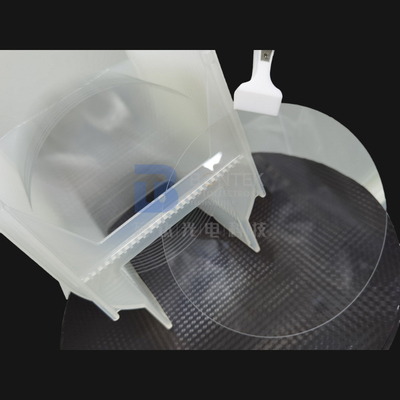

Customized Piezoelectric Single Crystal Quartz Wafer 2inch 3inch 4inch 6inch 8inch per request



Single Crystal Quartz wafers are ideal for use as substrates for thin film deposition and are also suitable for many optical applications. Quartz single crystal wafers and substrates are also used as microwave filters in wireless communication.

You can buy Quartz wafer for SAW components from BonTek. We are a leading quartz wafer supplier in China. There are three common shapes of quartz wafers: round, square, or rod type (also square, but relatively small). When the orientation is different, its piezoelectric characteristics, elastic characteristics and strength characteristics will be different. The performance of the resonator is different when using quartz wafer substrates with different orientations to make.



Product Single Crystal Quartz Wafer
Orientation X, Y, Z, AT, ST, BT, CT, ET ,DT, GT, NT, FC, SC, IT, etc.
Diameter 2 inch
50.8mm
3 inch
76.2mm
4 inch
100mm
6 inch
150mm
8 inch
200mm
Tolerance ±0.2mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm
Thickness
Tolerance
±0.025mm ±0.025mm ±0.025mm ±0.025mm ±0.025mm
Seed seedless for any cut
Or with seed
seedless for Z-cut
Other cut with seed
Primary Flat 16±2mm 22±2mm 32±2mm 47.5±2mm
57.5±2mm
57.5±2mm
Notch - - - 1~1.25mm
89~95°
1~1.25mm
89~95°
S/D 40/20 60/40 60/40 60/40 60/40
TTV <1.5um <5um <5um <5um <5um
PLTV >95% >95% >95% >95% >95%
Warp <9um <15um <30um <50um <70um
Bow <9um <15um <30um <40um <60um
Ra <0.5nm <1nm <1nm <1nm <1nm


Piezoelectric Single Crystal Quartz Wafer 2inch c 4inch 6inch 8inch Per Request 0Piezoelectric Single Crystal Quartz Wafer 2inch c 4inch 6inch 8inch Per Request 1



Material SAW grade, Optical grade
Q-Value 2.4x10^6 to 3.0x10^6 IEC standards
ECD Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡; Swept Quartz
Inclusions Density Ia, Ib, I, II Grade
Swept Both Pure Z and Y Bar available
