8inch Alpha Quartz Single Crystal Quartz Wafer For SAW Filter Resonator
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Single Crystal Quartz | Diameter: | 2inch 3inch 4inch 6inch 8inch |
|---|---|---|---|
| Orientation: | X, Y, Z, AT, ST, BT, DT, IT | Thickness: | 0.35mm, 0.5mm, 1mm |
| Surface: | Double Side Polish, Single Side Polish | Use: | Surface Acoustic Wave |
| Ra: | <1nm | Cleaness: | Class 1000 |
| High Light: | 8inch Single Crystal Quartz Wafer,SAW Filter Resonator Alpha Quartz Wafer,1mm Single Crystal Quartz Wafer |
||
Product Description

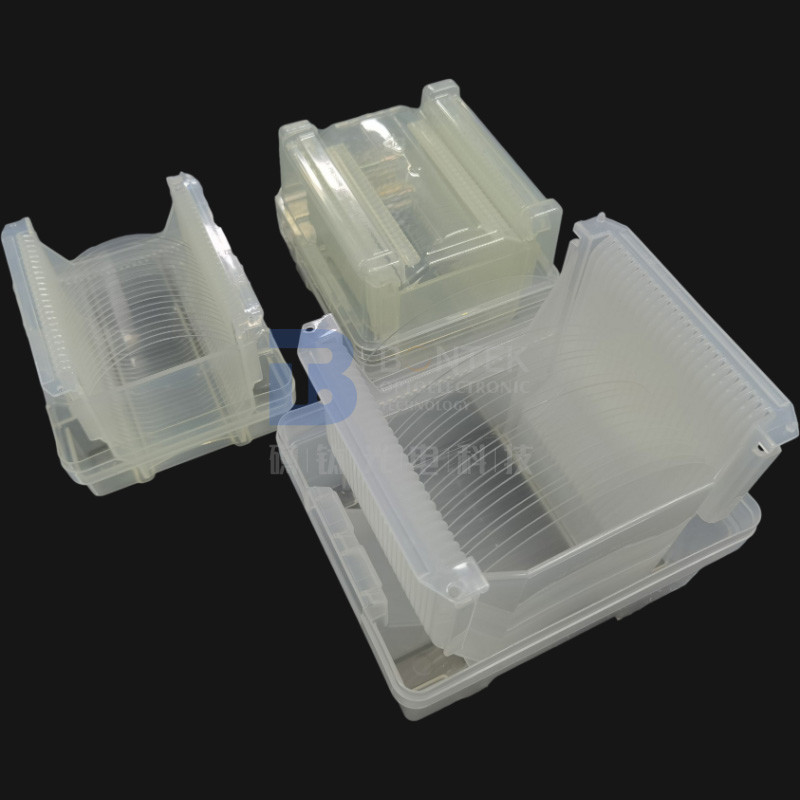

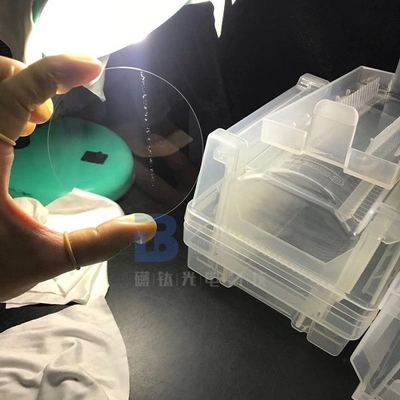

8inch alpha quartz Single Crystal Quartz Wafer for SAW Filter Resonator
The physical and chemical properties of Single Crystal Quartz are very stable, melting point is 1750℃, density is 2.65×10^3kg/m3, Mohs hardness is 7. It is difficult to dissolve in water, with large mechanical strength and stable mechanical properties. The piezoelectric coefficient of α quartz crystal (d33 =2.1×10^-12C/N) does not change with temperature.
BonTek has enormous experience in crystal quartz processing and also has access to high quality huge quartz chunks capable of producing up to 8 inch diameter wafers. Specially, we can fabricate very LARGE and THIN wafers conform to SEMI-std. 3" 4" 6" 8" are all available as per requirement, and we can polish to 0.1mm for 4" quartz wafers.
| Product | Single Crystal Quartz Wafer | ||||
| Orientation | X, Y, Z, AT, ST, BT, CT, ET ,DT, GT, NT, FC, SC, IT, etc. | ||||
| Diameter | 2 inch 50.8mm |
3 inch 76.2mm |
4 inch 100mm |
6 inch 150mm |
8 inch 200mm |
| Tolerance | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
| Thickness Tolerance |
±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm |
| Seed | seedless for any cut Or with seed |
seedless for Z-cut Other cut with seed |
|||
| Primary Flat | 16±2mm | 22±2mm | 32±2mm | 47.5±2mm 57.5±2mm |
57.5±2mm |
| Notch | - | - | - | 1~1.25mm 89~95° |
1~1.25mm 89~95° |
| S/D | 40/20 | 60/40 | 60/40 | 60/40 | 60/40 |
| TTV | <1.5um | <5um | <5um | <5um | <5um |
| PLTV | >95% | >95% | >95% | >95% | >95% |
| Warp | <9um | <15um | <30um | <50um | <70um |
| Bow | <9um | <15um | <30um | <40um | <60um |
| Ra | <0.5nm | <1nm | <1nm | <1nm | <1nm |
| Density(g/cm3) | 2.65 | Melting Point(°C) | 1750 |
| Thermal Conductivity, W/(m x K) (T = 25°C) | 10.7 (parallel to axis Z) 6.2 (perpendicular to axis Z) |
Thermal Conductivity, W/(m x K) (T = 25°C) |
7.1 x 10-6 (parallel to axis Z) 13.2 x 10-6 (perpendicular to axis Z) |
| Hardness (Mohs) | 7 | Specific Heat Capacity, J/(kg x K) (T = 25°C) | 710 |
| Specific Heat Capacity, J/(kg x K) (T = 25°C) | 4.34 (parallel to axis Z) 4.27 (perpendicular to axis Z) |
Young's Modulus (E), GPa | 4.34 (parallel to axis Z) 4.27 (perpendicular to axis Z) |
| Shear Modulus (G), GPa | 31.14 | Bulk Modulus (K), GPa | 36.4 |
| Chemical Stability | insoluble in water | Elastic Coefficients | C11=87 C12=7 C44=58 C13=13 C14=18 C33=106 |
