Different Angle Cuts Of Single Crystal Quartz Customized Wafers
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

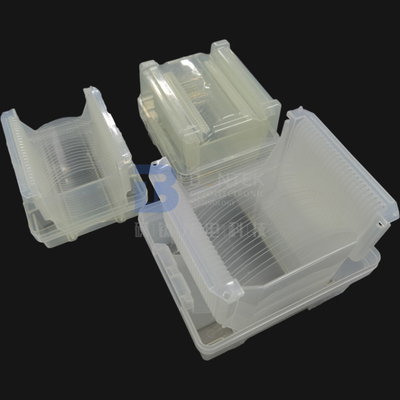

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Single Crystal Quartz | Size: | Dia 4'', 6'' Or Squard |
|---|---|---|---|
| Orientation: | X Cut , Y Cut , Z Cut , AT Cut, ST Cut, Etc. | Thickness: | 0.075mm Up |
| Surface: | Polish, Lap, Etch | Use: | Navigation, Broadcasting, Time And Frequency Control |
| Ra: | 0.2um~0.7um | Seed: | With Seed |
| High Light: | 0.7um Single Crystal Quartz,0.2um Customized Wafers,AT-Cut Single Crystal Quartz |
||
Product Description
Different Angle Cuts of Single Crystal Quartz Customized Wafers used in various applications

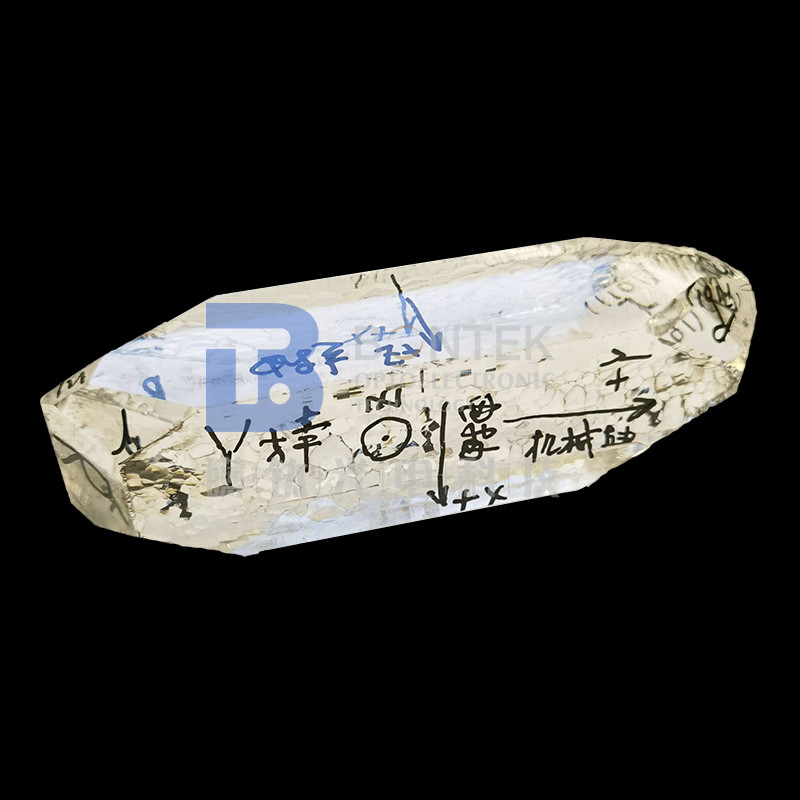

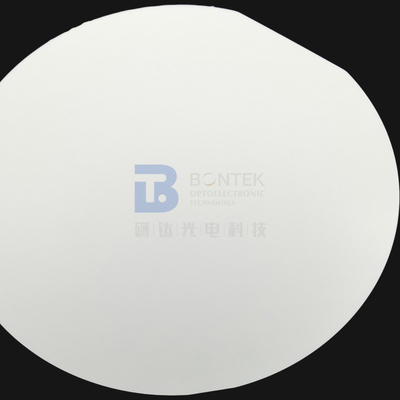

BonTek Optoelectronics provides high quality Single Crystal Quartz wafers in both SAW grade and optical grade. We can offer various orientation options including X cut , Y cut , Z cut , AT cut, ST cut, etc. or just any cut angle you can imaging for your unique applications at reasonable price.
AT, BT, SC cut orientations are for many frequency control application which will be used for many electronic and space application, such as mobile phone and satellite etc. AT-Cut Quartz is the most common cut, particularly used for electronic instrument that require frequency range of 0.5 - 300MHz. Z cut is for some optical application, such as some windows and lens etc. meanwhile, general speaking, the polishing designations are for reducing the electronic resistance or enlarging the optical transmittance.
| Product | Single Crystal Quartz Wafer | ||||
| Q-Value | Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) | ||||
| ECD |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2； Swept Quartz (IEC standards) |
||||
| Inclusions | Ia,Ib,I, II,III Grades (IEC standards) | ||||
| Orientation | X, Y, Z, AT, ST, BT, CT, ET ,DT, GT, NT, FC, SC, IT, etc. | ||||
| Diameter | 2 inch 50.8mm |
3 inch 76.2mm |
4 inch 100mm |
6 inch 150mm |
8 inch 200mm |
| Tolerance | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
| Thickness Tolerance |
±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm | ±0.025mm |
| Seed | seedless for any cut Or with seed |
seedless for Z-cut Other cut with seed |
|||
| Primary Flat | 16±2mm | 22±2mm | 32±2mm | 47.5±2mm 57.5±2mm |
57.5±2mm |
| Notch | - | - | - | 1~1.25mm 89~95° |
1~1.25mm 89~95° |
| S/D | 40/20 | 60/40 | 60/40 | 60/40 | 60/40 |
| TTV | <1.5um | <5um | <5um | <5um | <5um |
| PLTV | >95% | >95% | >95% | >95% | >95% |
| Warp | <9um | <15um | <30um | <50um | <70um |
| Bow | <9um | <15um | <30um | <40um | <60um |
| Ra | <0.5nm | <1nm | <1nm | <1nm | <1nm |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
