Quartz Single Crystal Bulkwave Blanks As The Beating Heart Of TCXO OCXO
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200000 pcs / Month |
|
Detail Information |
|||
| Material: | Quartz Single Crystal | Frequency: | 1~70MHz By Etching |
|---|---|---|---|
| Cut Type: | AT-cut, SC-cut, Etc. | θ Tolerance: | ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, Etc. |
| Φ Tolerance: | ±5′，±10′，±15′，±30′，etc. | Overtone: | Fundamental; Third (3rd); Fifth (5th) |
| Surface Finishing: | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polish (Cerium Oxide）& Etch Std | Contouring (dioptric): | Plano-Convex: 0.5 Dioptric～10 Dioptric Bi-Convex: 10 Dioptric～15 Dioptric |
| High Light: | Quartz Single Crystal,Single Optical Crystal,Single Crystal Bulkwave Blanks |
||
Product Description
Quartz Single Crystal Bulkwave Blanks as the beating heart of TCXO OCXO

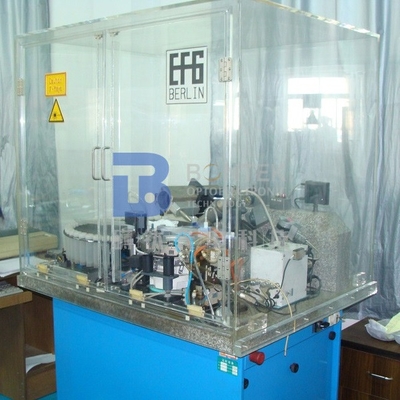

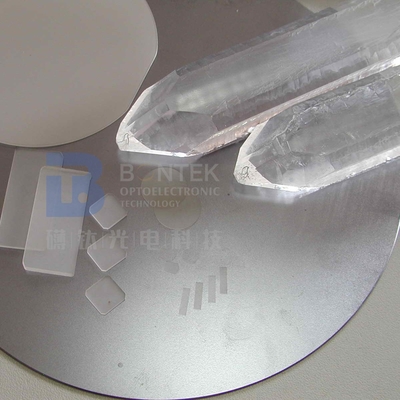

Quartz Single Crystal bulkwave blanks are used for frequency control and filter applications. It is made into oscillators becoming the beating heart for many of today's sophisticated electronic circuits. The bulkwave of single crystal quartz is very stable, and most electronic devices are relying on it to control and regulate the electronic pulses, whether it's mobile phone or space probe. BonTek have access to high quality huge crystal quartz chunks, combined with final inspections, providing the optimal products for you whether it’s round, square, SMD, strip, plano-plano, contoured, lapped or polished.
| Material | Single Crystal Quartz Blanks (Piezo / Optical grade) |
| Crystal Chunk | Pure Z Bar,Pure Y Bar,Swept Quartz |
| Q-Value | Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
| Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2； Swept Quartz (IEC standards) |
| Inclusions Density | Ia,Ib,I, II,III Grades (IEC standards) |
| Cut Type | AT, BT, CT, ET, DT, GT, NT, FC, SC, IT, AC, BC, ST, TS, MT, NT RT, LC, etc. |
| Angle Tolerance (±) | Theta Angle:±5″,±10″,±15″,±30″,±1′,±2′,etc. |
| Phi Angle:±5′,±10′,±15′,±30′,etc. | |
| Size For Round Blank | From 3.0mm to 50.80mm (with flat) / 2”, 3”, 4”, 5”, 6” and 8’’ (wafers) |
| Size For Square Blank | 1.6×1.6mm ～ 41×48 mm or even larger size |
| Size For SMD Blank | 1.2x2.4mm Above at Customer option |
| Size Tolerance (±) | ±0.01 mm, ±0.005mm, ±0.0005mm, |
| Frequency/ Thickness | 1 MHz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching |
| Flat | Per requested (flat perpendicular to X axis within ±10 deg) |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std |
| Overtone | Fundamental,Third Overtone (3rd),Fifth Overtone (5th) |
| Contouring (°dioptric) |
Plano-Convex: 0.5°dioptric～10°dioptric； Bi-Convex: 10°dioptric～15°dioptric |
| Material | Single Crystal Quartz Blanks (Piezo / Optical grade) |
| Crystal Chunk | Pure Z Bar,Pure Y Bar,Swept Quartz |
| Q-Value | Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2； Swept Quartz (IEC standards) |
| Inclusions Density | Ia,Ib,I, II,III Grades (IEC standards) |
| Cut Type | AT, BT, CT, ET, DT, GT, NT, FC, SC, IT, AC, BC, ST, TS, MT, NT RT, LC, etc. |
| Angle Tolerance (±) | Theta Angle:±5″,±10″,±15″,±30″,±1′,±2′,etc. |
| Phi Angle:±5′,±10′,±15′,±30′,etc. | |
| Size For Round Blank | From 3.0mm to 50.80mm (with flat) / 2”, 3”, 4”, 5”, 6” and 8’’ (wafers) |
| Size For Square Blank | 1.6×1.6mm ～ 41×48 mm or even larger size |
| Size For SMD Blank | 1.2x2.4mm Above at Customer option |
| Size Tolerance (±) | ±0.01 mm, ±0.005mm, ±0.0005mm, |
| Frequency/ Thickness | 1 MHz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching |
| Flat | Per requested (flat perpendicular to X axis within ±10 deg) |
| Surface Finishing | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std |
| Overtone | Fundamental,Third Overtone (3rd),Fifth Overtone (5th) |
| Contouring (°dioptric) |
Plano-Convex: 0.5°dioptric～10°dioptric； Bi-Convex: 10°dioptric～15°dioptric |
