Glass And Monocrystal Quartz Carrier Wafer For Thin Wafer Handling System
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs / Month |
|
Detail Information |
|||
| Material 1: | Single Crystal Quartz | Cut Type: | X, Y, Z, AT, SC, ST |
|---|---|---|---|
| Material 2: | Fused Silica, Fused Quartz, Borosilicate, Soda Lime | Surface: | Polish, Lap, Etch |
| Application: | Thin Wafer Handling System | Use: | Carrier Wafer |
| Diameter: | 2inch ~12inch | Thickness: | 0.3mm ~ 2mm |
| High Light: | Glass carrier wafer,12inch ultra thin wafer,Monocrystal Quartz carrier wafer |
||
Product Description

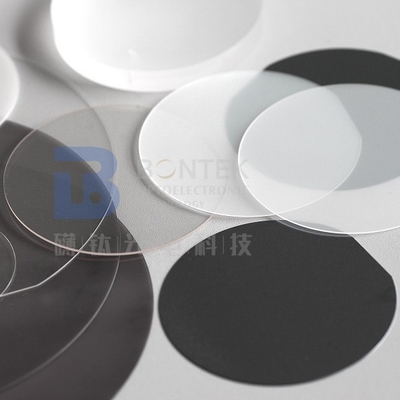

Carrier wafer made of Glass and Monocrystal Quartz for Thin Wafer Handling System
Based on the market demand for small devices, there is ongoing wafer thickness reduction in the MEMS and semiconductor industry. Carrier wafers are needed to enable handling and processing of the thin and ultra-thin wafers.

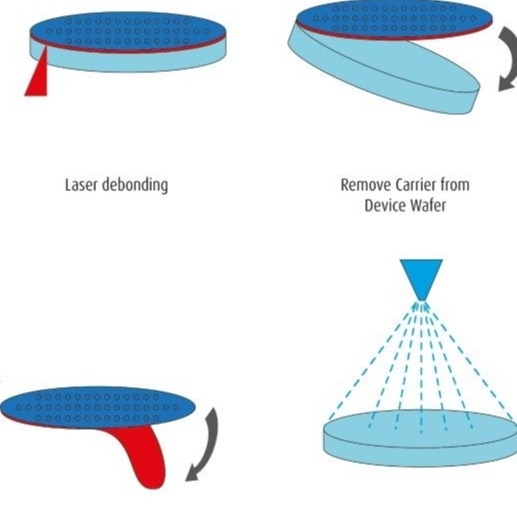

Glass and Quartz are excellent materials for carrier wafers because of their thermal stability and resistance against acids and other chemicals. Bonding to and de-bonding from glass and quartz carrier wafers can be monitored since they are transparent.
BonTek Optoelectronics provides all types of Glass wafers, as well as high quality Single Crystal Quartz wafers in both SAW grade and Optical grade at a very reasonable price. We are equipped with FlatMaster 200 and Automated Optical Inspectors (AOI), which enables excellent flatness and surface roughness.
|
Material |
Single Crystal Quartz Blanks (SAW / Optical grade) |
|
Synthetic Q-Value |
Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
|
Inclusions Density |
Ia,Ib,I, II,III Grades (IEC standards) |
|
Material |
Fused Quartz, Borosilicate, Soda Lime Glass |
|
SCHOTT |
Borofloat33 / BK7 / B270 / D263 etc. |
|
CORNING |
Eagle XG, Fused Silica 7980 / 7978 / 7979 etc. |
|
Feilihua |
Fused Silica JGS1 / JGS2 & Single quartz etc. |
|
OHARA |
SK-1300, SK-1310 |
|
GM |
H-K9L / Soda Lime etc. |
|
Spec |
unit | 4" | 6" | 8" | 10" | 12” |
|
Diameter (or square) |
mm | 100 | 150 | 200 | 250 | 300 |
|
Tolerance (±) |
mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
|
Thickness |
mm |
0.10 or more |
0.30 or more |
0.40 or more |
0.50 or more |
0.50 or more |
|
Primary flat |
mm | 32.5 |
47.5 / 57.5 / Notch |
Semi-Notch | Semi-Notch | Semi-Notch |
|
LTV (5mmx5mm) |
µm | < 0.5 | < 0.5 | < 0.5 | < 0.5 | < 0.5 |
|
TTV |
µm | < 2 | < 3 | <3 | <5 | <5 |
|
Bow |
µm | ±20 | ±30 | ±40 | ±40 | ±40 |
|
Warp |
µm | ≤ 30 | ≤ 40 | ≤ 50 | ≤ 50 | ≤ 50 |
|
PLTV (5mm*5mm) <0.4um |
% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
|
Edge Rounding |
mm | Compliant with SEMI M1.2 Standard/refer to IEC62276 | ||||
|
Surface Type |
Single Side Polished /Double Sides Polished | |||||
|
Polished side Ra |
nm | ≤1 | ||||
|
Back Side Criteria |
µm | general 0.2-0.7 or customized | ||||
