Material: LiTaO3 Wafer Grade: SAW Grade
Diameter: 3'' ~ 6'' Orientation: Y, Z, 36Y, 42Y Etc.
Thickness: 0.25mm, 0.35mm, 0.5mm, 1mm Surface: Double Side Polish
Roughness: Ra<1nm Application: SAW, BAW
High Light:

4 Inch LiTaO3 Wafer

,

6'' single side polished wafer

,

LiTaO3 Wafer 36Y 42Y

Product Description

4 Inch Single Side Polish LiTaO3 Wafer 36Y 42Y used in Surface Acoustic Wave Industry



The piezoelectric properties of Lithium Tantalate (LiTaO3) crystals are an essential feature when used in SAW devices. Compared to quartz, they have a large electromechanical coupling ratio of 1: 1.5, which has a very high surface-to-surface connection.



To produce a SAW device with Lithium Tantalate (LiTaO3) crystals, it must be heated in a high-temperature environment several times, as is used in production facilities today. To prevent the potential interdigital electrode burnt, Lithium Tantalate Reduction wafers are provided by BonTek to neutralize the pyro-electric charges.

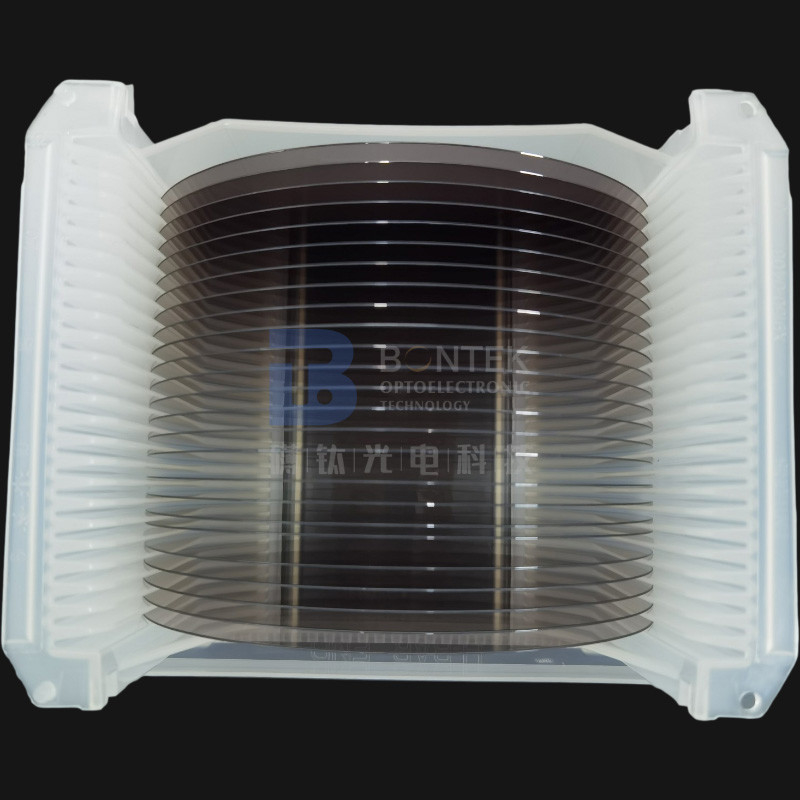

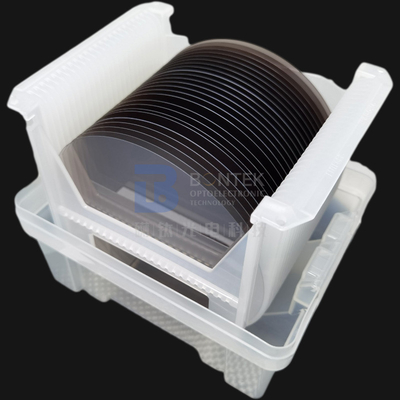

4 Inch Single Side Polish LiTaO3 Wafer 36Y 42Y Acoustic Wave Industry 04 Inch Single Side Polish LiTaO3 Wafer 36Y 42Y Acoustic Wave Industry 14 Inch Single Side Polish LiTaO3 Wafer 36Y 42Y Acoustic Wave Industry 2



Transmission Range

0.275 - 5.25 µm (thickness 8 mm); High transmittance from 0.4 – 4um

Refractive Index

no = 2.139, ne = 2.139 @633 nm

Reflection Loss

13.17%@0.633 µm

Density

7.4564 g/cm3

Melting point

1650°C

Molecular Weight

235.89

Thermal Conductivity

4.6 W/m·K ; 8.78 W/m·K

Spec. Heat Capacity

424 J/(K·kg)

Hardness (Mohs)

750

Elastic Coefficient

C11 = 230; C12 = 42; C13= 79; C14= -11; C33= 276; C44 = 95.9 GPa

Dielectric Constant

41-53 @298K

Solubility in Water

insoluble

Crystal Structure

Single crystal, synthetic

Crystal Type

trigonal, a = 5.15 Å c = 13.77 Å

Cleavage Planes

no cleavage

Application

electro optic Q-switch, integrated optical substrate, sensor, frequency converter



Material

3" 4" 6" LT wafer Saw/Optical grade

Orientation

X112°/Y28°/Y36°/Y42°/YZ or Customized

Curie Temp

605°C±3°C

Doped with

Fe

Single Domain

Completed Polarization / Reduced

Orientation

36°Y, 42°Y, X-112°Y, Y, Z

Diameter

76.2±0.2mm

100±0.2mm

150±0.2mm

Primary Flat

22±1mm

32±1mm

47.5mm, 57.5mm, Notch

Thickness

0.07mm~1.0mm

0.1mm~1.0mm

0.35mm~1.0mm

Surface finish

Single / Double side polish / Double side lapped

TTV

< 1~5µm

BOW

± (20µm ~40um )

Warp

<= 20µm ~ 50µm

LTV (5mmx5mm)

<1.5 um

PLTV(<0.5um)

≥98% (5mm*5mm) with 2mm edge excluded

Polished side Ra

Roughness Ra<=5A

Back Side Criteria

Roughness Ra:0.5-1.0µm, GC#1000

Scratch & Dig (S/D)

20/10, 40/20, 60/40

Edge Profile

Compl't with SEMI M1.2@with GC800# .regular at C typed

Cracks, saw marks, stains

None
