3inch 4inch 6inch Fe LiTaO3 Doping Wafer Nonlinear Optical Crystals For E-O Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiTaO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Orientation: | Y-cut, 36Y-cut, 42Y-cut, Etc. | Surface Finish: | Double / Single Side Polish |
| Dia.: | 3inch, 4inch, 6inch | Thickness: | 0.35mm, 0.5mm Etc. |
| Flat: | 22mm, 32mm, 47.5mm, 57.5mm | Application: | High Frequency Broadband Filter And Piezoelectric Transducer |
| High Light: | Fe LiTaO3 Doping Wafer,6inch Doping Wafer,Nonlinear Optical Crystal |
||
Product Description

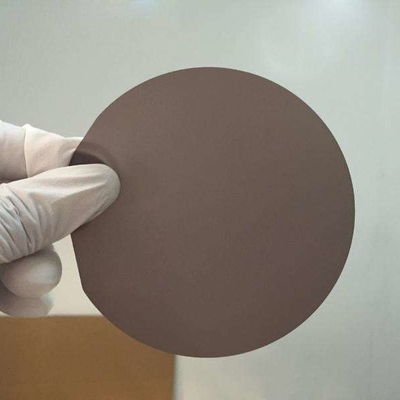

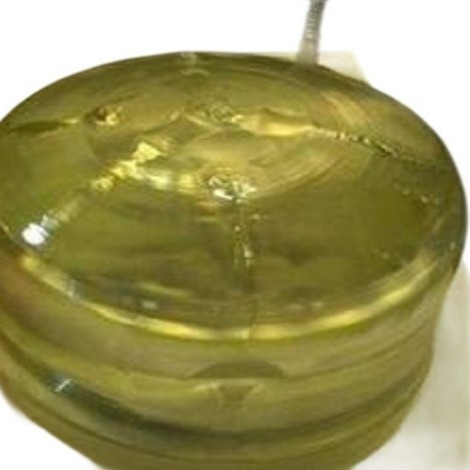

3inch 4inch 6inch Doping Fe LiTaO3 Wafer Nonlinear Optical Crystals For E-O Devices
LiTaO3 is an E-O crystal widely used for E-O devices, due to its good optical NLO and E-O properties, as well as high damage threshold. BonTek supplies high quality LiTaO3 wafers with the following specifications for standard applications. We can also offer other specifications upon request.
|
Product |
Ltihium Tantalate (LT) Wafer |
||
|
Diameter |
3inch |
4inch |
6inch |
|
76.2mm |
100mm |
150mm |
|
|
S/D |
20/10 |
20/10 |
20/10 |
|
TTV |
<3um |
<3um |
<5um |
|
PLTV |
>95% |
>95% |
>95% |
|
Warp |
<20um |
<40um |
<50um |
|
BOW |
<20um |
<30um |
<30um |
|
Ra |
<0.5nm |
<0.5nm |
<0.5nm |
|
Reduction |
Standard White |
Standard White |
Standard White |
|
Dope |
Fe doped |
Fe doped |
Fe doped |
|
Properties |
LiTaO3 (LT) |
|
Type of Material |
Single Crystal |
|
Crystal Structure |
Trigonal,a = 5.154, c = 13.784Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Transmission Range |
400 – 5000 nm |
|
Absorption edge |
270nm |
|
Absorption loss |
< 0.15 %/cm @ 1064 nm |
|
Refractive Index |
no=2.176,ne=2.180(at 0.633 µm) |
|
no=2.131,ne=2.134(at 1.2 µm) |
|
|
Density |
7.45g/cm3 |
|
Thermal Conductivity |
8.78x 10-7 m2/sec |
|
Optical homogeneity |
~10-5 |
|
Hardness (Mohs) |
5 |
|
Elastic Coefficient |
CE11 2.33(X 1011 N/m2) |
|
CE33 2.77(X 1011 N/m2) |
|
|
Dielectric Constant |
ε11/ε0 52.7 |
|
ε33/ε0 44.5 |
|
|
Solubility in Water |
insoluble in water |
|
NLO Coefficients |
d33 = 13.8 pm/V |
|
d22= 2.4 pm/V |
|
|
d11= 0.85 pm/V |
|
|
Electro-Optic Coefficients |
r31 =8.4 pm/V, @633nm |
|
r22 =20 pm/V, @633nm |
|
|
r33 =30.5 pm/V, @633nm |
|
|
Damage Threshold |
2 MW/cm2@532nm |
