4" Lithium Tantalate Wafer X-CUT Used For Surface Acoustic Wave Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | LiTaO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Orientation: | 36°, 39°, 42 °, 46°, 48°, X-CUT | Surface Finish: | DSP, SSP, Lap |
| Diameter: | 4inch, Φ100mm | Thickness: | 0.35mm, 0.5mm |
| Primary Flat: | 32.5±2mm | Application: | SAW Devices |
| High Light: | 4" Lithium Tantalate Wafer,0.5mm SAW Wafer,Lithium Tantalate Wafer X-CUT |
||
Product Description

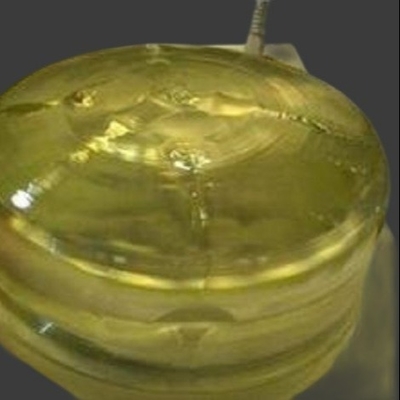

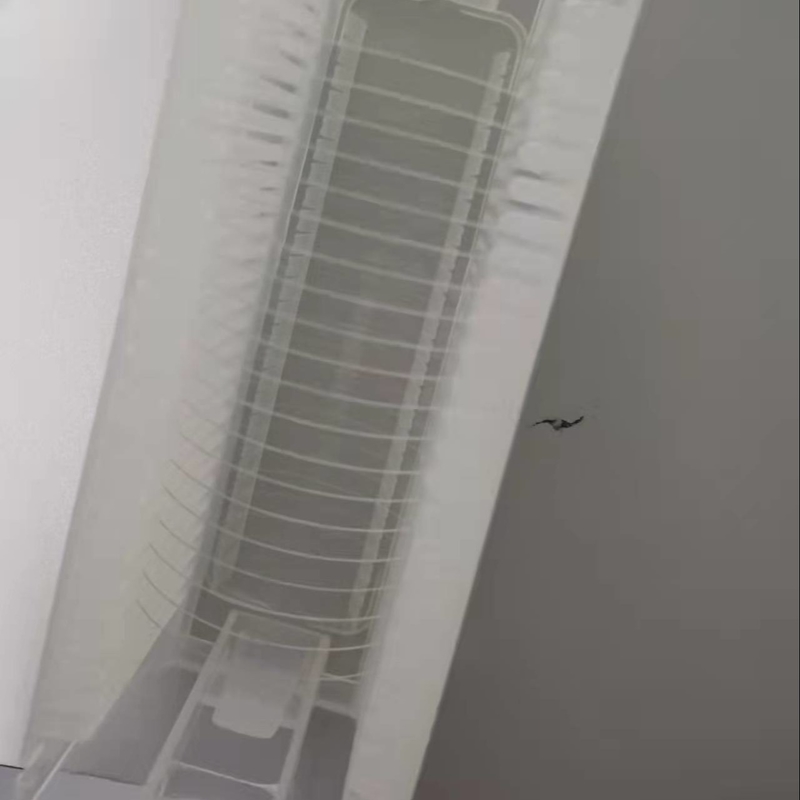

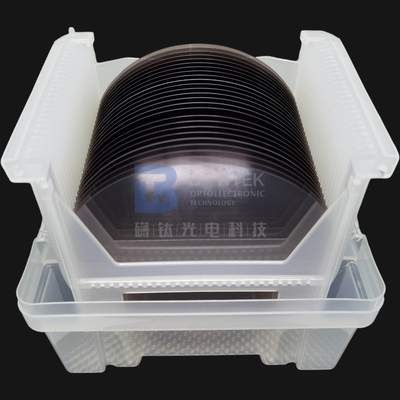

4" Φ100mm LiTaO3 Wafer 36°, 39°, 42 °, 46°, 48°, X-CUT used for Surface Acoustic Wave Devices
Lithium tantalate (LiTaO3), has properties which make it useful for SAW (surface acoustic wave) devices and, to a different specification, for optical use. Wafers can be produced with varying properties, such as "black" wafers free of pyroelectric discharge, 4" (100mm), orientation 36°, 39°, 42 °, 46°, 48°, X-CUT detailed specifications, or with higher physical strength to withstand processing during manufacture, resulting in higher yields.
|
Diameter |
Orientation |
Thickness |
Primary Flat |
Material |
Brand /Grade |
|
76.2±0.2mm |
36°Y Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
SAW |
|
76.2±0.2mm |
36°Y Cut |
0.5±0.025mm |
22±2mm |
Black LiTaO3 |
SAW |
|
76.2±0.2mm |
42°Y Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
SAW |
|
76.2±0.2mm |
42°Y Cut |
0.5±0.025mm |
22±2mm |
Black LiTaO3 |
SAW |
|
76.2±0.2mm |
X-112°Y Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
SAW |
|
76.2±0.2mm |
X-112°Y Cut |
0.5±0.025mm |
22±2mm |
Black LiTaO3 |
SAW |
|
76.2±0.2mm |
X Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
Optical |
|
76.2±0.2mm |
Z Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
Optical |
|
100±0.2mm |
36°Y Cut |
0.5±0.025mm |
32±2mm |
LiTaO3 |
SAW |
|
100±0.2mm |
36°Y Cut |
0.5±0.025mm |
32±2mm |
Black LiTaO3 |
SAW |
|
100±0.2mm |
42°Y Cut |
0.5±0.025mm |
32±2mm |
LiTaO3 |
SAW |
|
100±0.2mm |
42°Y Cut |
0.5±0.025mm |
32±2mm |
Black LiTaO3 |
SAW |
|
100±0.2mm |
X-112°Y Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
SAW |
|
100±0.2mm |
X-112°Y Cut |
0.5±0.025mm |
22±2mm |
Black LiTaO3 |
SAW |
|
100±0.2mm |
X Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
Optical |
|
100±0.2mm |
Z Cut |
0.5±0.025mm |
22±2mm |
LiTaO3 |
Optical |
|
Crystal Structure |
Trigonal, Space group R3c, Point group 3m |
|
Cell Parameters |
a=5.154Å, c=13.781Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Mohs Hardness |
5.5 |
|
Density |
7.46g/cm3 |
|
Dielectric Constants |
ε11/ε0:51.7 |
|
ε33/ε0:44.5 |
|
|
Elastic Stiffness Coefficients |
CE11:2.33(×1011N/m2) |
|
CE33:2.77(×1011N/m2) |
|
|
Piezoelectric Strain Constants |
d22:2.4(×10-11C/N) |
|
d33:0.8(×10-11C/N) |
|
|
Transmission range |
400-4500nm |
|
Electro-optical coefficients |
r33=30.4pm/V |
|
Refractive index at 632.8nm |
no=2.176, ne=2.180 |
