4'' 0.35mm DSP SSP LiNbO3 Wafer 128Y-Cut And 36Y-Cut For SAW Filters Transducers
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Niobate Wafer | Grade: | SAW, Optical Grade |
|---|---|---|---|
| Out Diameter: | 3'', 4'', 6'', 8'' | Orientation Cut: | X, Y, Z, 64Y, 128Y, Etc. |
| Thickness: | 250um, 350um, 500um, 1000um, Etc. | Surface Type: | Double Side Polish, Single Side Polish |
| Roughness Ra: | Ra<10 A | Industry Use: | SAW Filter, Ultrasonic Transducer |
| High Light: | DSP SSP LiNbO3 Wafer,4'' Optical wafer,0.35mm LiNbO3 Wafer |
||
Product Description

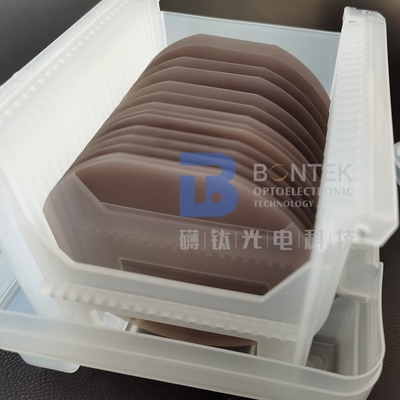

4'' 0.35mm DSP SSP LiNbO3 Wafer 128Y-Cut and 36Y-Cut For SAW Filters Transducers
Lithium Niobate is a ferroelectric material suitable for a variety of applications. Its excellent electro-optic, nonlinear optical and piezoelectric properties make it a good optical waveguide material, and to produce medium and low frequency SAW filter, high power high temperature resistant ultrasonic transducer, etc.
BonTek has both SAW grade and Optical grade Lithium niobate crystals. We also has the technology of LN reduction and LN doping, such as MgO:LN, Nd:Mg:LN, Fe:LN. Any design you may have, our tech-sales and engineers are here to suggest you the most suitable material, cut angle or thickness etc.
|
Product Name |
3" 4" 6" 8" Lithium Niobate Wafer (SAW / Optical) |
|
Cut Angle |
X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized |
|
Surface finish |
DLP/SLP/ SSP/DSP all available |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±2°C |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Flats |
22mm, 32.5mm, 47.5mm, 57.5mm, NOTCH, per request |
|
Doped with |
Zn, MgO single or double doped available |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reducted |
|
Compound Formula |
LiNbO3 |
|
Molecular Weight |
147.85 |
|
Melting Point |
1250 °C |
|
Density |
4.64 g/cm3 |
|
Solubility in H2O |
Insoluble |
|
Refractive Index |
no 2.30, ne 2.21 (589.2 nm, 25 °C) |
|
Crystal Phase / Structure |
Trigonal |
|
Thermal Conductivity |
5.6 W/m·K |
