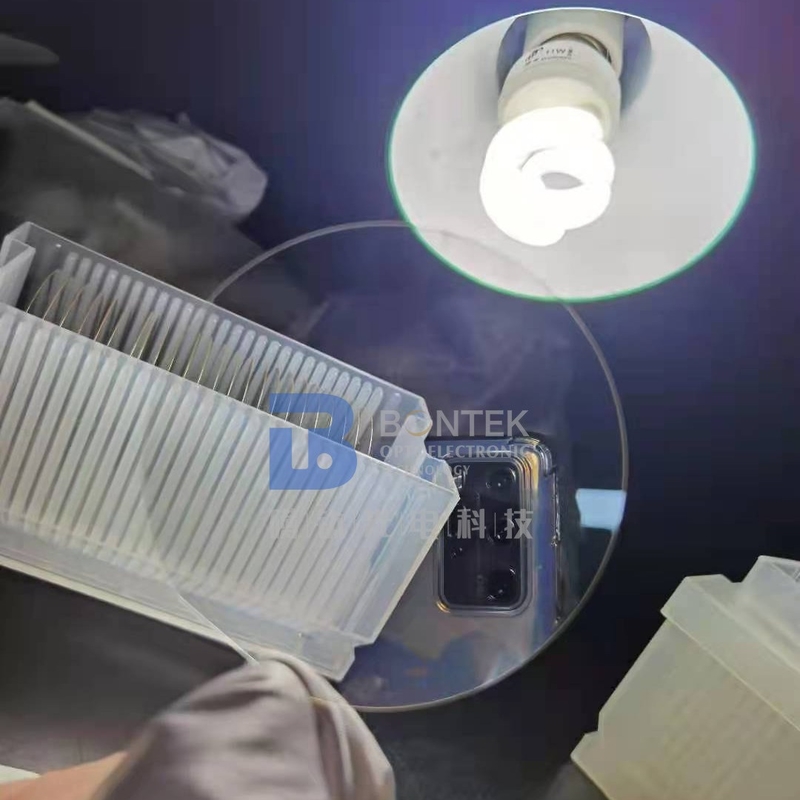

Cut Angle Lithium Niobate Wafer For SAW Devices And Optical Waveguides
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate (LiNbO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

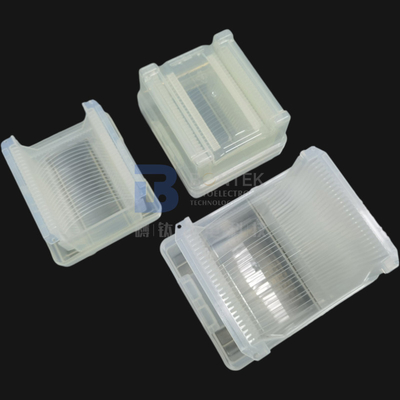

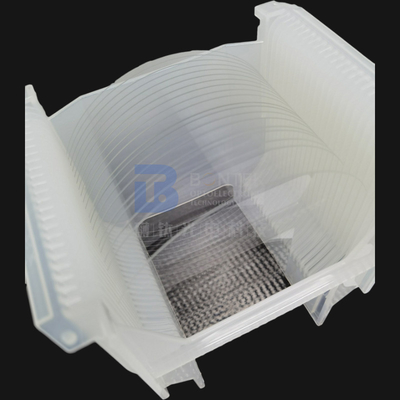

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Niobate Wafer | Purity: | SAW And Optical Grade |
|---|---|---|---|
| Dia. / Size: | 3inch, 4inch, 6inch, 8 Inch Etc. | Cut Orientation: | X-cut, Z-cut, Y-cut, 128Y-cut, Etc. |
| Thick: | 0.35mm, 0.5mm, 1mm, Etc. | Surface: | Polish, Lap, Etch |
| Ra Roughness: | Ra<1nm, Ra<0.5nm | Industry Use: | SAW Devices, Optical Waveguides |
| High Light: | Cut Angle Lithium Niobate Wafer,LiNbO3 saw wafer,Lithium Niobate Wafer SAW Devices |
||
Product Description
Various Orientation Cut Angle ithium Niobate wafers for SAW Devices and Optical Waveguides
Lithium Niobate (LiNbO3, LN) crystal is a kind of artificial crystal material with excellent electro-optic, nonlinear and piezoelectric properties. Lithium niobate crystals are important materials for optical waveguides, mobile phones, piezoelectric sensors, light modulators and a variety of other linear and nonlinear optical applications. Due to its high electro-optical coefficients, lithium niobate is used for optical amplitude and phase modulators, Pockels cells, laser Q-switching modulators.
BonTek has the technology of LN reduction and doping, such as MgO:LN, Nd:Mg:LN, Fe:LN in 3 inch, 4 inch, 6 inch, and 8 inch for some orientations.
|
Product |
3" 4" 6" 8" LN wafer Saw/Optical grade |
|
Cut Angle |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Curie Temp |
1142°C±3°C |
|
Doped with |
Zn, MgO single or double doped available |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Cracks, saw marks, stains |
None |
|
Description |
Propagation |
Design |
Surface Wave Velocity (m/s) |
Coupling Coefficient k² (%) |
Group Delay Time Temp Coefficient (ppm/°C) |
Propagation Loss of SAW (dB/cm) |
|
127.86° Y - Cut |
X - Axis |
SAW |
3980 |
5.5 |
75 |
- |
|
64° Y - Cut |
X - Axis |
L, SAW |
4742 |
11.3 |
70 |
- |
|
41° Y - Cut |
X - Axis |
L, SAW |
4792 |
17.2 |
50 |
- |
|
Y - Cut |
Z - Axis |
SAW |
3488 |
4.9 |
94 |
0.31 (1GHz) |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
