Dia 6'' 8'' Lithium Niobate Wafer SAW Optical Grade 350um 500um
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | Lithium Niobate Wafer | Grade: | SAW, Optical Grade |
|---|---|---|---|
| Diameter: | 6inch, 8 Inch Etc. | Orientation: | Z-cut, 128Y-cut, 64Y-cut Etc. |
| Thickness: | 350um, 500um, 1000um, Etc. | Surface Finish: | DSP, SSP, Etc. |
| Roughness: | Ra<0.5nm, Ra<1nm | Use In: | SAW Filter, Ultrasonic Transducer |
| High Light: | 8'' Lithium Niobate Wafer,350um linbo3 wafer,6'' Lithium Niobate Wafer |
||
Product Description

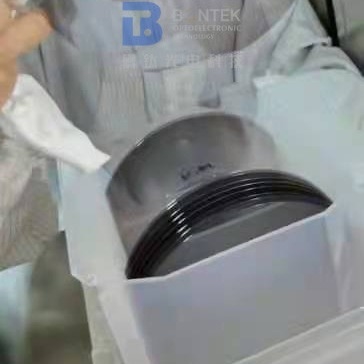

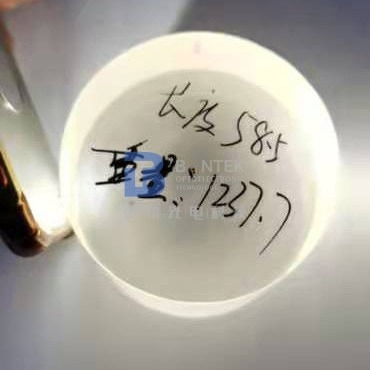

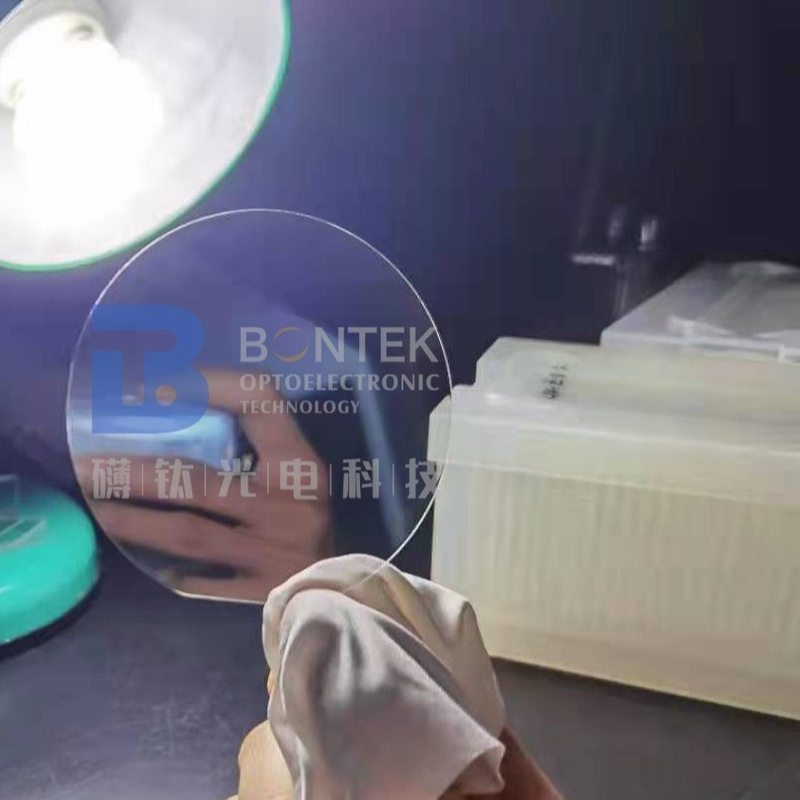

Large Dia 6'' 8'' LiNbO3 wafers 128°Y Z-cut For Surface Acoustic Wave Devices
Lithium niobate (LiNbO3) single crystal is a ferroelectric crystal with high electromechanical coupling coefficient and low propagation loss, which can be used to fabricate SAW devices with up to 50% bandwidth. The acoustic surface wave properties of lithium niobate single crystal materials are closely related to their orientation and propagation direction. According to different cutting angles and propagation directions, the saw propagation velocity is 3400~4000m/s, the electromechanical coupling coefficient is 0%~5.6%, and the temperature coefficient is -1.1~-95.6(10^-6/℃).
The most used SAW orientations are YZ-cut and 128°Y-cut, best fit for television transmission and reception signal processing. The 128°Y-cut with X propagation is said to have the lowest spurious signal level. BonTek introduces 8 inch LN wafers for 128°Y-cut and Z-cut, 6 inch LN wafers for all cut angles! We also has the technology of LN reduction and LN doping, such as MgO:LN, Nd:Mg:LN, Fe:LN.
|
Material |
6'' & 8" LiNbO3 wafer |
|
Orientation |
Z-cut, Y128°-cut for 8'' X, Y, Z, 36Y, 64Y, 128Y for 6'' |
|
Surface finish |
Single or Double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.35mm, 0.50mm, 1.00mm |
|
TTV |
< 5µm |
|
BOW |
± 40um |
|
Warp |
< 80µm |
|
Primary Flat |
47.5mm or 57.5mm for 6'' Semi Standard Notch for 6'' and 8'' |
|
Polished side Ra |
Roughness Ra<10A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
Crystal Sturucture |
Trigonal, Space group R3c, Point group 3m |
|
Melting Point |
1253℃ |
|
Mohs Hardness |
5 |
|
Density (g/cm3) |
4.64 |
|
Deliquescence |
None |
|
Optical Homogeneity |
~5x10-5/cm |
|
Transparency Range |
420-5200nm |
|
Absorption Coefficient |
~0.1%/cm @1064nm |
