Single Or Double Dope Lithium Niobate Wafer Optical Grade With Reduced Impurity Level
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Niobate Wafer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |

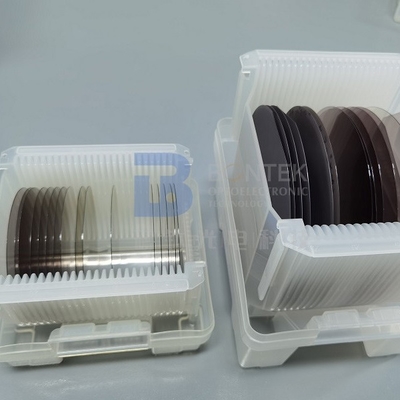

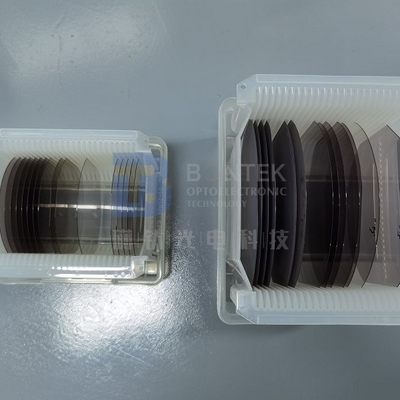

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Material: | Lithium Niobate Wafer | Type: | Optical Grade |
|---|---|---|---|
| Diameter / Size: | 3'', 4'', 6'', 8'' | Angle Cut: | X-cut, Z-cut, Y-cut, 64Y-cut, 128Y-cut |
| Thickness: | 0.5mm, 1mm, Etc. | Surface Type: | Double Side Polish, Etc. |
| Doing With: | MgO, Er, Fe | Roughness: | Ra<1nm, Ra<0.5nm |
| High Light: | Lithium Niobate Wafer,Double Dope Wafer,Lithium Niobate Wafer |
||
Product Description

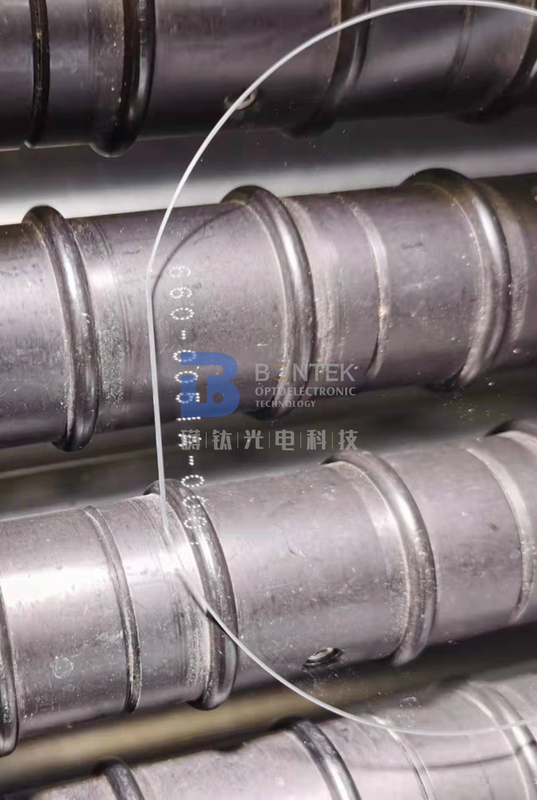

Single or Double dope Lithium Niobate Wafer Optical grade with Reduced Impurity Level
Lithium niobate (LiNbO3) is a useful photoelectric material. The material not only has unique piezoelectric, optical and photoelastic properties, but also has good mechanical and chemical stability. It is a very attractive material in the field of integrated optics because of its excellent electro-optic, acoustooptic and nonlinear optical properties.
BonTek offers up to 6 "in diameter, single crystal optical grade LN material that reduces impurity levels. Other specifications are available on doped wafers :Er:LN, MgO:LN and Fe:LN.
The most commonly used SAW directions are YZ-CUT and 128° Y-Cut, which are best suited for TV transmitting and receiving signal processing. The 128°Y-cut with X propagation is considered to have the lowest spurious signal level.
|
Material |
3" - 8" Lithium Niobate wafer (Saw/Optical grade) |
|
Orientation Cut |
X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
|
Curie Temperature |
1142°C±3°C |
|
Doped with |
Er, MgO, single or double doped available |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available) |
|
Thickness |
0.18mm / 0.25mm / 0.35mm / 0.5mm / 1.0mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
PLTV (<1.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Edge |
Compl't with SEMI M1.2@with GC#1000 Regular @ C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Ra<=5A |
|
Back Side Criteria |
Ra:0.2-0.7µm GC#1000 |
|
Compound Formula |
LiNbO3 |
|
Molecular Weight |
147.85 |
|
Melting Point |
1250 °C |
|
Density |
4.64 g/cm3 |
|
Solubility in H2O |
Insoluble |
|
Refractive Index |
no 2.30, ne 2.21 (589.2 nm, 25 °C) |
|
Crystal Phase / Structure |
Trigonal |
|
Thermal Conductivity |
5.6 W/m·K |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
