AT Cut Single Crystal Quartz Blank 70MHz For Frequency Control

AT Cut Single Crystal Quartz Blank 70MHz For Frequency Control

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:14001
Model Number: Single Crystal Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable

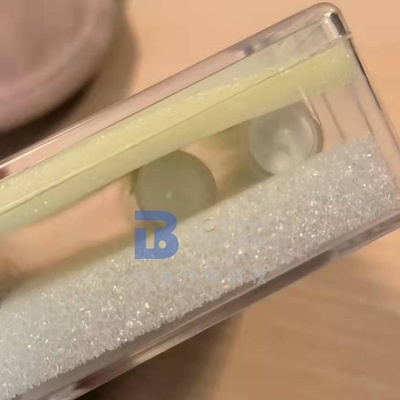

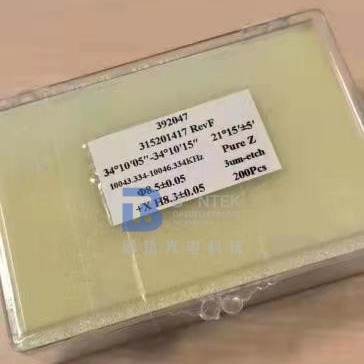

Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 200000 pcs / Month
Get Best Price Contact Now

Detail Information

Product: Crystal Quartz Blank Frequency: 1MHz~70MHz By Etching
Rotation: Single Rotation AT-cut Angle Tolerance: ±10″, ±15″, ±30″, ±1′, ±2′, …, Etc.
Size: Φ8mm, 10mm;20×20mm Etc. Ord: Fundamental; 3rd Overtone; 5th Overtone
Surface Finish: #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& Etched Std Dioptric: Plano-Plano, Plano-Convex, Bi-Convex
High Light:

Single Quartz Crystal Blanks

,

AT Cut Quartz Blanks

,

Quartz Blanks For Frequency Control

Product Description

AT SC cut Quartz Crystal Round Blanks IEEE standard Single or Double Rotation for TCXO

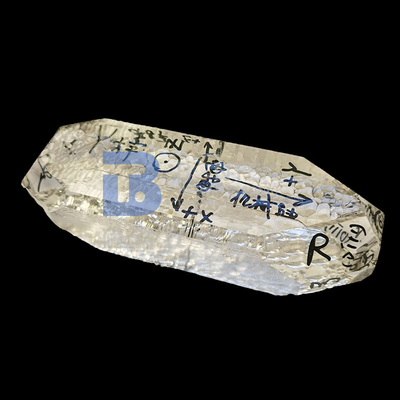

Cultured Crystal Quartz blanks are made of right-handed Alpha quartz crystal artificially grown bars. The cultured crystal bars are most used to fabricate piezoelectric components for applications as timing, frequency control and frequency selection.



BonTek has QSC41L EFG from Berlin to do angle control. It can work on IT, SC and FC cuts for angle measurement and sorting. We provide quartz crystal blanks in all standard formats: Round, Square, SMD, strip, plano-plano, contoured, lapped, and polished. The most used are AT-cut and SC-cut plates with very strict angle torlerance. Please check below our detailed capabilities.



Orientation

AT-Cut, etc

Angle Tolerance

Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc.

Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc.

Size

Round (3.0mm~8”)/ Square (1.6x1.6mm~48x48mm or larger)/ SMD (1.2x2.4mm Above)

Size Tolerance

±0.01mm,+/-0.005mm, +/-0.0005mm, according to size

Frequency

1 Mhz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching

Flat

Per requested: the flat shall be perpendicular to X axis within ±10 deg

Surface

#1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std

Overtone

Fundamental; Third Overtone (3rd); Fifth Overtone (5th)

Dioptric

Plano-Convex: 0.5 dioptric~10 dioptric Bi-Convex: 10 dioptric~15 dioptric



Material

Cultured Quartz Crystal

Q-Value

Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards

ECD

Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡, Max 300/c㎡; Swept Quartz

Inclusions

Ia, Ib, I, II, III Grades

Grade

Z bar, Y bar, Or Swept quartz
