Double side polished Single Crystal Quartz Wafer Ultra Thin DT Cut
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Material: | Crystal Quartz | Size: | Dia 2'', 3'', 4'' Or Squard |
|---|---|---|---|
| Orientation: | X, Y, Z, AT, ST, DT-cut | Thickness: | 0.08mm, 0.1mm |
| Surface: | Double Side Polished | Use: | Bulk Wave, FBar |
| Ra: | <10A | Seed: | Without Seed |
| Highlight: | Polished Single Crystal Quartz,DT Cut Single Quartz Crystal,Ultra Thin Single Crystal Wafer |
||
Product Description

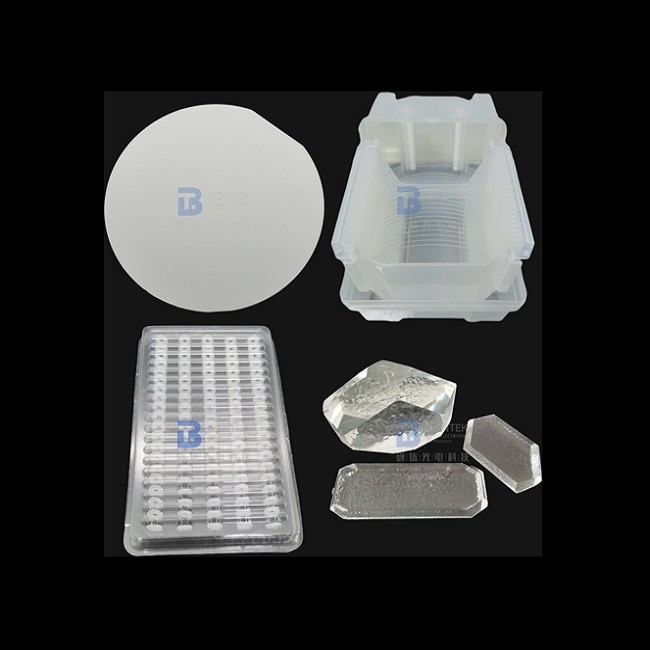

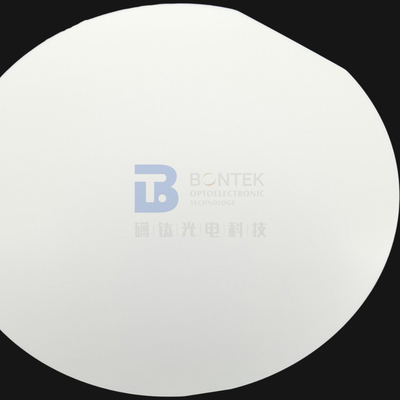

80um Ultra-thin Right-hand Single Crystal Quartz Wafer 35.15°Y-Cut alpha quartz
Crystal quartz is anisotropic monoaxial crystal and has trigonal crystal structure. It has skeleton type and consists of silica-oxygen tetrahedrons located spirally (with right and left twisting) to the main axis of the crystal. Depending on this right-hand and left-hand modifications of the material are emphasized. Piezoelectric and pyroelectric properties of synthetic crystal quartz are caused by absence of both plane and center of symmetry.

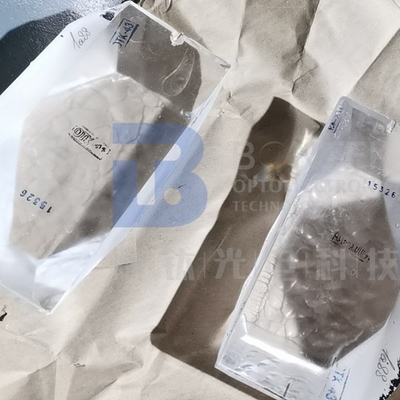

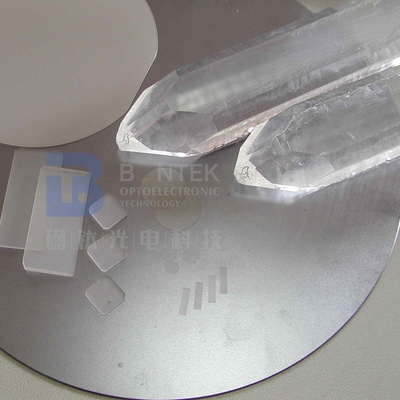

BonTek has enormous experience in crystal quartz processing and also has access to high quality huge quartz chunks capable of producing up to 8 inch diameter wafers. Specially, we can fabricate very LARGE and THIN wafers conform to SEMI-std. 3" 4" 6" 8" are all available as per requirement, and we can polish to 0.1mm for 4" quartz wafers.
|
Material |
Piezo / Optical grade |
|
Q-Value |
Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
Max 2/cm2, 10/cm2, Max 30/cm2, Max 100/cm2, Max 300/cm2; Swept Quartz |
|
Inclusions Density |
Ia, Ib, I, II, III Grades |
|
Diameter |
25.4mm, 50.8mm, 76.2mm, 100.0mm |
|
Tolerance |
±0.2mm |
|
Thickness |
70um, 80um, 90um, 100um |
|
Tolerance |
±25um |
|
Orientation |
Y0°, 35.15°Y, 42.75°Y, 52°Y, Z+2° |
|
Tolerance |
±7’, ±15’ |
|
TTV |
≤10um |
|
LTV |
≤2.0um within an area of 5×5mm |
|
PLTV |
≥95% (3mm from edge excluded) |
|
BOW |
-25um ≤Bow≤ +25um |
|
Warp |
<30um |
|
Top side |
Ra<1nm |
|
Back side |
GC#1000 lapped, 0.2um≤Ra≤0.7um |
|
Seed |
Seedless |
