SAW Grade LiTaO3 Wafer Piezoelectric Double Lithium Tantalate Wafer
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Lithium Tantalate (LiTaO3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Product: | LiTaO3 Wafer | Grade: | SAW Grade |
|---|---|---|---|
| Cut Type: | Y-cut, 36Y-cut, 42Y-cut, Etc. | Surface: | Double / Single Side Polish |
| Diameter: | 3inch, 4inch, 6inch | Thickness: | 0.35mm, 0.5mm Etc. |
| Orientation Flat: | 22mm, 32mm, 47.5mm, 57.5mm | Application: | High Frequency Broadband Filter And Piezoelectric Transducer |
| Highlight: | SAW Grade LiTaO3 Wafer,Piezoelectric Transducer LiTaO3 Wafer,Double lithium tantalate wafer |
||
Product Description

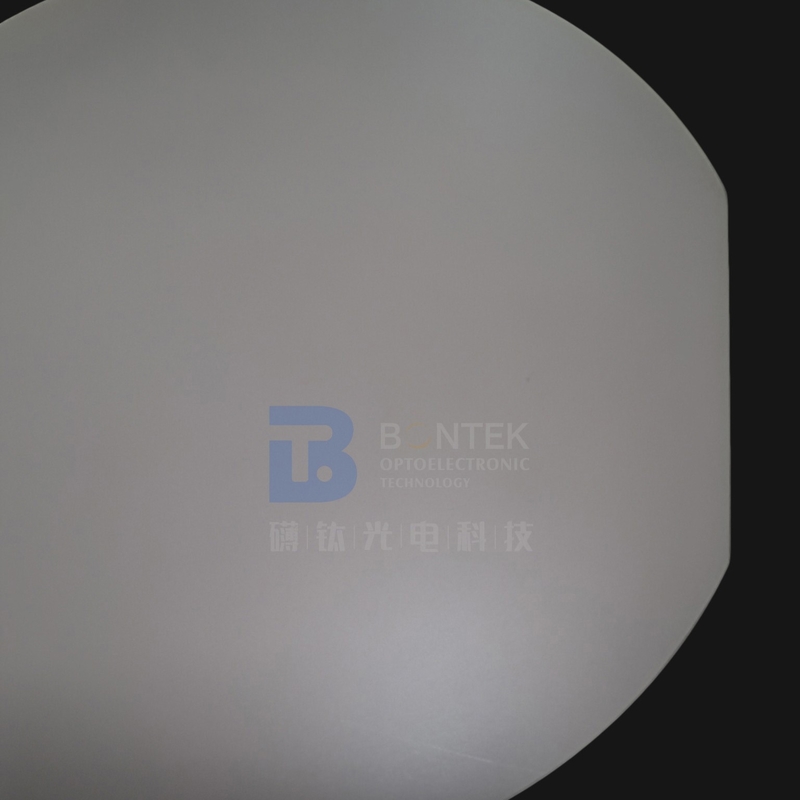

4'' 0.5mm Thickness LiTaO3 Wafer for High Frequency Broadband Filter and Piezoelectric Transducer
The electromechanical coupling coefficient of LiTaO3 crystals is large, and the acoustic attenuation in the current use of the scale is the smallest in the piezoelectric crystal, therefore, LiTaO3 single crystal is suitable for high frequency broadband filter, high frequency piezoelectric transducer, ultrasonic delay line medium and acoustic surface wave device. LiTaO3 single crystal dielectric constant and piezoelectric constant is large, its temperature stability is very good, so the LiTaO3 single crystal has been widely research and application as a piezoelectric crystal.
| Outer Diameter | Orientation | Thickness | Primary Flat | Material | Brand /Grade |
| 100±0.2mm | 36°Y Cut | 0.5±0.025mm | 32±2mm | LiTaO3 | SAW |
| 100±0.2mm | 36°Y Cut | 0.5±0.025mm | 32±2mm | Black LiTaO3 | SAW |
| 100±0.2mm | 42°Y Cut | 0.5±0.025mm | 32±2mm | LiTaO3 | SAW |
| 100±0.2mm | 42°Y Cut | 0.5±0.025mm | 32±2mm | Black LiTaO3 | SAW |
| 100±0.2mm | X-112°Y Cut | 0.5±0.025mm | 22±2mm | LiTaO3 | SAW |
| 100±0.2mm | X-112°Y Cut | 0.5±0.025mm | 22±2mm | Black LiTaO3 | SAW |
| 100±0.2mm | X Cut | 0.5±0.025mm | 22±2mm | LiTaO3 | Optical |
| 100±0.2mm | Z Cut | 0.5±0.025mm | 22±2mm | LiTaO3 | Optical |
|
Crystal Structure |
Trigonal, Space group R3c, Point group 3m |
|
Cell Parameters |
a=5.154Å, c=13.781Å |
|
Melting Point |
1650℃ |
|
Curie Temperature |
607℃ |
|
Mohs Hardness |
5.5 |
|
Density |
7.46g/cm3 |
|
Dielectric Constants |
ε11/ε0:51.7 |
|
ε33/ε0:44.5 |
|
|
Elastic Stiffness Coefficients |
CE11:2.33(×1011N/m2) |
|
CE33:2.77(×1011N/m2) |
|
|
Piezoelectric Strain Constants |
d22:2.4(×10-11C/N) |
|
d33:0.8(×10-11C/N) |
|
|
Transmission range |
400-4500nm |
|
Electro-optical coefficients |
r33=30.4pm/V |
|
Refractive index at 632.8nm |
no=2.176, ne=2.180 |
