Lithium Tantlate LiTaO3 Wafer High Power SAW Grade Litao3 Crystal

Lithium Tantlate LiTaO3 Wafer High Power SAW Grade Litao3 Crystal

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001, ISO:14001
Model Number: Lithium Tantalate (LiTaO3)

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Cassette/ Jar package, vaccum sealed
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 10000 pcs/Month
Get Best Price Contact Now

Detail Information

Material: LiTaO3 Wafer Grade: SAW Grade
Orientation: 42Y-cut, 36Y-cut, 28Y-cut, Etc. Surface Finish: DSP, SSP, Lap
Diameter: 3inch, 4inch Thickness: 0.35mm, 0.5mm
Primary Flat: 22±2mm, 32±2mm Application: Telecom Mobile Phone Market
Highlight:

Lithium Tantlate LiTaO3 Wafer

,

High Power LiTaO3 Wafer

,

SAW grade litao3 crystal

Product Description

Mg-doped Stoichiometric Lithium Tantlate LiTaO3 Wafer for designing High-Power-Frequency Converters



Mg-doped stoichiometric lithium tantalate (SLT) is a promising material in high power generation, due to its high thermal conductivity. The accuracy of the temperature-dependent Sellmeier equation for Mg-doped SLT is important for designing high-power-frequency converters. We propose a temperature-dependent Sellmeier equation for the extraordinary refractive index of 1.0 mol % Mg-doped SLT. The equation is fitted with measured data in the first-order quasi-phase-matched (QPM) second harmonic generation (SHG) and optical parametric oscillation (OPO) with the fundamental and pump wavelengths being both 1.064 m and previously published data [Jpn. J. Appl. Phys. 41 (2002) 465] of SLT. The equation allows us to predict accurate QPM periods in the range of 0.5-4 m wavelength and in temperature range of 30-170 °C.

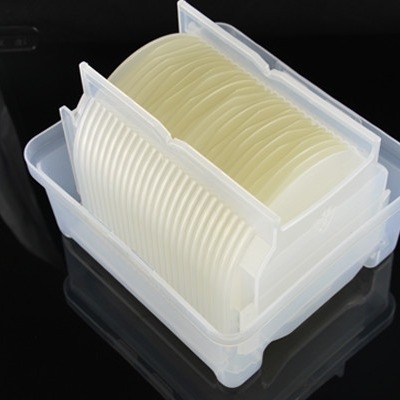

Lithium Tantlate LiTaO3 Wafer High Power SAW Grade Litao3 Crystal 0Lithium Tantlate LiTaO3 Wafer High Power SAW Grade Litao3 Crystal 1Lithium Tantlate LiTaO3 Wafer High Power SAW Grade Litao3 Crystal 2



Diameter

76.2±0.2mm

100±0.2mm

150±0.2mm

Primary Flat

22±1mm

32±1mm

47.5mm, 57.5mm, Notch

Orientation

36°Y, 42°Y, X-112°Y, Y, Z

Thickness

0.07mm~1.0mm

0.1mm~1.0mm

0.35mm~1.0mm

Surface finish

Single / Double side polish / Double side lapped

TTV

< 1~5µm

BOW

± (20µm ~40um )

Warp

<= 20µm ~ 50µm

LTV (5mmx5mm)

<1.5 um

PLTV(<0.5um)

≥98% (5mm*5mm) with 2mm edge excluded

Polished side Ra

Roughness Ra<=5A

Back Side Criteria

Roughness Ra:0.5-1.0µm, GC#1000

Scratch & Dig (S/D)

20/10, 40/20, 60/40

Edge Profile

Compl't with SEMI M1.2@with GC800# .regular at C typed

Cracks, saw marks, stains

None



Crystal Structure

Trigonal, Space group R3c, Point group 3m

Cell Parameters

a=5.154Å, c=13.781Å

Melting Point

1650℃

Curie Temperature

607℃

Mohs Hardness

5.5

Density

7.46g/cm3

Dielectric Constants

ε11/ε0:51.7

ε33/ε0:44.5

Elastic Stiffness Coefficients

CE11:2.33(×1011N/m2)

CE33:2.77(×1011N/m2)

Piezoelectric Strain Constants

d22:2.4(×10-11C/N)

d33:0.8(×10-11C/N)

Transmission range

400-4500nm

Electro-optical coefficients

r33=30.4pm/V

Refractive index at 632.8nm

no=2.176, ne=2.180





Lithium Tantlate LiTaO3 Wafer High Power SAW Grade Litao3 Crystal 3
