3 Inch and 4 Inch Single Crystal Quartz Wafer for SAW and MEMS Devices Production Process
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

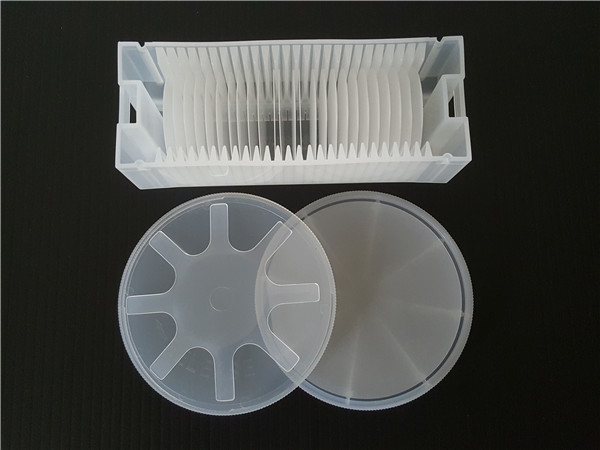

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 3inch, 4inch |
|---|---|---|---|
| Cut Angle: | AT-cut, ST-cut | Thickness: | 0.35mm, 0.5mm |
| Surface: | Single Side Polish, Double Side Polish | Application: | MEMS, SAW Application |
| Seed: | Seedless / Withseed | Grade: | SAW / Optical |
Product Description
3 Inch and 4 Inch Single Crystal Quartz Wafer for SAW and MEMS Devices Production Process
Single-Crystal Quartz Wafers:
The Epitome of Precision and Durability
For those seeking the utmost in precision and durability, our single-crystal quartz wafers are the ideal solution. These wafers, crafted from pure quartz, exhibit exceptional piezoelectric properties, converting mechanical energy into electrical signals with unparalleled accuracy.
Our single-crystal quartz wafers stand out for their stability and reliability. Their high resistance to temperature changes and chemical corrosion ensures consistent performance, even in the most challenging environments. Whether you're in the medical, industrial, or scientific fields, these wafers will enhance the precision of your instrumentation systems.
Moreover, our quartz wafers' single-crystal structure guarantees uniform properties and enhanced performance. This, coupled with their excellent optical properties, makes them a perfect choice for optical applications as well.
Embrace the precision and durability of our single-crystal quartz wafers and experience a new level of performance in your work. With these wafers, you can achieve unprecedented accuracy and reliability, driving your instrumentation systems to new heights.
| Single Crystal Quartz Material Properties | |
| Purity | Optical grade: 99.99% |
| Crystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method | Hydrothermal method |
| Hardness | 7.0 Mohs |
| Density | 2.684 g/cm3 |
| Melt Point | 1610 deg C (phase transition point: 573.1 °C) |
| Specific heat | 0.18 cal/g |
| Thermoelectric Constant | 1200 mV / °C @ 300 °C |
| Thermal conductivity | 0.0033 cal/cm/ °C |
| Thermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index | 1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion | IEC Grade II |
| Diameter | 3”(76.2mm) | 4”(100mm) | 6”(150mm) | 8”(200mm) |
| Thickness | 0.08mm Min-up | 0.10mm Min-up | 0.20mm Min -up | 0.35mm Min- |
| Primary Flat | 22mm | 32mm | 42.5mm | 57.5mm or notch |
| Surface | LTV (5mmx5mm) | <1.5µm | TTV | <1.5~3 µm |
| Bow | -30<bow<30 | Warp | <40µm | |
| Surface Type | SSP / DSP | Edge Criteria | R=0.2mm or Bullnose | |
| Polished side Ra | <0.5nm or per requested | Back Side Criteria | 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
