Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications

Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications

Product Details:

Place of Origin: China
Brand Name: CSIMC
Certification: ISO:9001
Model Number: Single Crystal Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T
Supply Ability: 100000 pcs / Month
Get Best Price Contact Now

Detail Information

Product: Crystal Quartz Dia.: 2inch To 8inch
Cut Type: X, Y, Z, AT, SC, ST Thickness: 0.35mm, 0.5mm,1.0mm
Surface Finish: Polish, Lap, Etch Application: Optical
Inclusion: Ia, Ib, I, II, III Growth: Hydrothermal Growth
High Light:

Monocrystalline Quartz Wafers

,

Monocrystalline Quartz Wafers 8 inch

Product Description

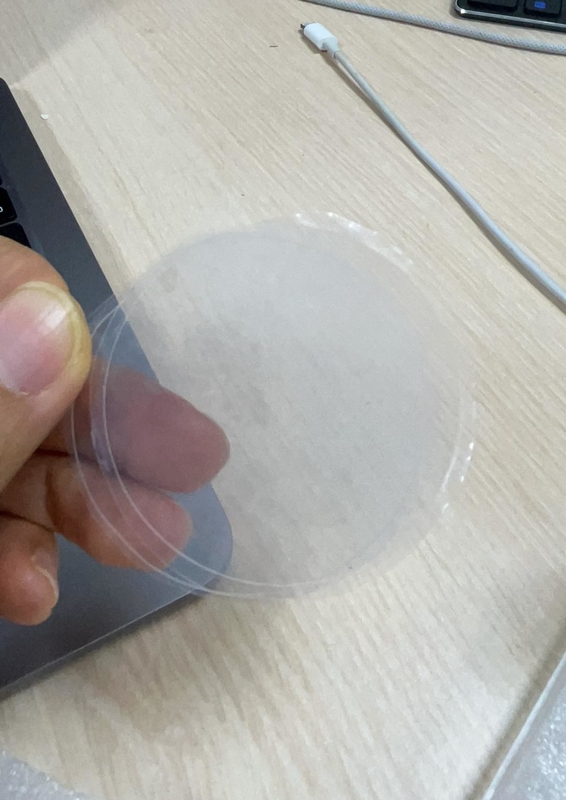

Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications



the power of innovation with our premium Quartz Wafers, the cornerstone of cutting-edge technology and research. Crafted from high-purity quartz, renowned for its exceptional optical transparency, thermal stability, and chemical resistance, our wafers are designed to meet the rigorous demands of modern manufacturing and scientific exploration.

Our Quartz Wafers offer unparalleled surface flatness and smoothness, ensuring minimal scattering and maximum optical efficiency. They also exhibit superior electrical insulation and mechanical strength, making them ideal for applications ranging from semiconductor manufacturing and photonic devices to MEMS and bio-medical sensors.

Elevate your technology with our top-tier Quartz Wafers. Ideal for both research and industrial applications, they promise to deliver unparalleled performance and reliability. Discover the future of innovation with our superior Quartz Wafers – order yours today and unlock the full potential of your cutting-edge devices and systems.


Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications 0Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications 1



Material Optical Grade, Piezo Grade
Q-Value 2.4x10^6 to 3.0x10^6 IEC standards
ECD Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡; Swept Quartz
Inclusions Density Ia, Ib, I, II Grade
Swept Both Pure Z and Y Bar available



Diameter 3” (76.2mm) 4” (100mm) 6” (150mm) 8” (200mm)
Thickness 0.08mm up 0.10mm up 0.20mm up 0.35mm up
Primary Flat 22mm 32mm 42.5mm 57.5mm or notch
Surface Bow -30<bow<30 Warp <40µm
Surface Type SSP / DSP TTV <1.5~3 µm
Polished side Ra<0.5nm or per requested Back Side 0.2-0.5µm or as customized


Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications 2



FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.

  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

Monocrystalline Quartz Wafers The Ultimate Material for Your Most Demanding Applications 3



  • The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



  • After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.

  • Please open the vacuum package in a clean room when the products are to be applied.



  • If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
