Optimize Your Instrumentation Systems With Single Crystal Quartz Wafers For SAW And MEMS Device Production
Product Details:
| Place of Origin: | China |
| Brand Name: | CSIMC |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 3inch, 4inch |
|---|---|---|---|
| Cut Angle: | X, Y, Z, AT, SC, ST | Thickness: | 0.35mm, 0.5mm,1.0mm |
| Surface: | Single Side Polish, Double Side Polish | Application: | MEMS, SAW Application |
| Inclusion: | Ia, Ib, I, II, III | Growth: | Hydrothermal Growth |
| Highlight: | MEMS Single Crystal Quartz Wafers,Instrumentation Systems Single Crystal Quartz Wafers,SAW Single Crystal Quartz Wafers |
||
Product Description

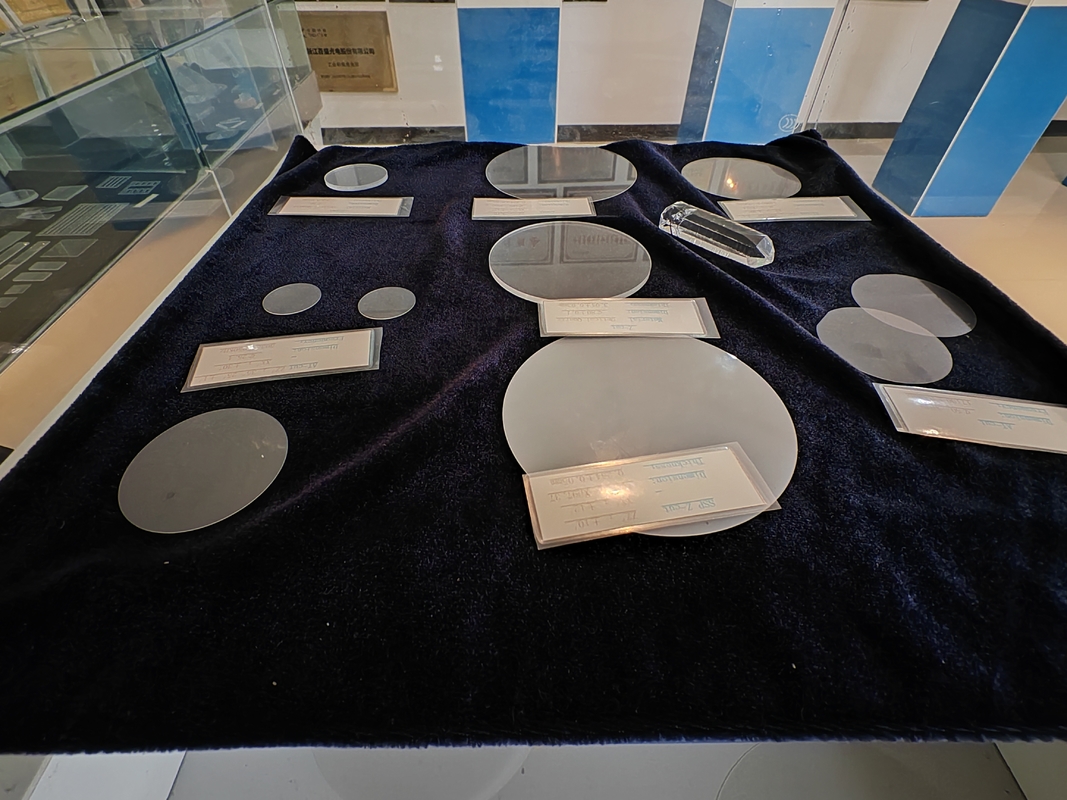

Optimize Your Instrumentation Systems with Single Crystal Quartz Wafers for SAW and MEMS Device Production
our Single Crystal Quartz Wafer, the ultimate choice for precision applications demanding unmatched frequency stability and thermal resistance. Made from the purest forms of quartz crystal, our wafers offer exceptional piezoelectric properties, making them indispensable in high-performance oscillators, filters, and sensors.
Our Single Crystal Quartz Wafers exhibit remarkable temperature stability, with minimal frequency drift over a wide temperature range, ensuring consistent and reliable performance in the most demanding environments. Their high Q-factor and low loss characteristics make them ideal for high-frequency applications, delivering unparalleled accuracy and stability.
Precision crafted to meet the tightest tolerances, our wafers offer ultra-smooth surfaces and consistent crystal orientation, ensuring optimal performance and reliability. Elevate your technology with our Single Crystal Quartz Wafers – order now and harness the precision and stability of quartz crystal technology.
| Single Crystal Quartz Material Properties | |
| Purity | Optical grade: 99.99% |
| Crystal Structure and lattice parameters |
Hexagonal a= 4.914 Å c = 5.405 Å |
| Growth Method | Hydrothermal method |
| Hardness | 7.0 Mohs |
| Density | 2.684 g/cm3 |
| Melt Point | 1610 deg C (phase transition point: 573.1 °C) |
| Specific heat | 0.18 cal/g |
| Thermoelectric Constant | 1200 mV / °C @ 300 °C |
| Thermal conductivity | 0.0033 cal/cm/ °C |
| Thermal expansion coefficient, (CTE) (x10^-6/ K) |
perpendicular to Z axis: 13.71 parallel to Z axis: 7.48 |
| Refractive Index | 1.544 |
|
Q value Acoustic velocity, SAW Frequency constant, BAW Piezoelectric coupling, |
1.8 x 10^6; 2.4 x 10^6, 3.0 x 10^6 3160 ( m/sec ) 1661 ( kHz/mm ) K2 (%) BAW: 0.65 SAW: 0.14 |
| Inclusion | IEC Grade II |
| Diameter | 3”(76.2mm) | 4”(100mm) | 6”(150mm) | 8”(200mm) |
| Thickness | 0.08mm Min-up | 0.10mm Min-up | 0.20mm Min -up | 0.35mm Min- |
| Primary Flat | 22mm | 32mm | 42.5mm | 57.5mm or notch |
| Surface | LTV (5mmx5mm) | <1.5µm | TTV | <1.5~3 µm |
| Bow | -30<bow<30 | Warp | <40µm | |
| Surface Type | SSP / DSP | Edge Criteria | R=0.2mm or Bullnose | |
| Polished side Ra | <0.5nm or per requested | Back Side Criteria | 0.2-0.5µm or as customized |
