2'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor

2'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor

Product Details:

Place of Origin: China
Brand Name: BonTek
Certification: ISO:9001
Model Number: Single Crystal Quartz

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: Negotiable
Packaging Details: Cassette / Jar, put in a carton with PE foam.
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 100000 pieces/Month
Get Best Price Contact Now

Detail Information

Material: Single Crystal Quartz Size: 2'', 3'', 4'', 6'', 8'' Or As Required
Cut Angle: X, Y, Z, AT, BT, ST, BT, SC, Etc. Thickness: 0.08mm - 10mm
Surface: Double Side Polish, Single Side Polish, Lap, Etch Application: Frequency Control / Frequency Selection / QMEMS
High Light:

2'' Single Crystal Quartz Wafer

,

10mm Semiconductor Wafer

,

DSL Seedless Single Crystal Quartz Wafer

Product Description

Single crystal quartz wafers/blanks are made of synthetic quartz crystal. It has good piezoelectric effect and is widely used in timing frequency control, frequency selection and QMEMS. Cutting-edge applications include VCXO, TCXO, OCXO



Material Characteristics

Material Piezo / Optical grade
Q-Value Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards
ECD Max 2 /cm², 10/cm², Max 30/cm², Max 100/cm², Max 300/cm²; Swept Quartz
Inclusions Density Ia, Ib, I, II, III Grades
Swept Both Pure Z and Y Bar available,with or without Swept quartz



processing capacity - blanks

Cuts Type (orientation) X, Y, Z, AT, BT, CT, ET ,DT, GT, NT, FC, SC, IT, AC, BC, ST, TS MT ,NT RT, LC…, etc
Angle Tolerance(±) Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc.
  Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc.
Size Round (3.0mm~8”)/ Square (1.6x1.6mm~48x48mm or larger)/ SMD (1.2x2.4mm Above)
Size Tolerance(±) ±0.01mm,+/-0.005mm, +/-0.0005mm, according to size
Frequency/ Thickness 1 Mhz up to 54Mhz for AT-Cut Fundamental ; Up to 70Mhz by Etching
Flat Per requested: the flat shall be perpendicular to X axis within ±10 deg
Surface Finishing #1000(9u); #2000(7u); #3000(5u); #4000(3u) (Sic); Polished(Cerium oxide)& etched Std
Overtone Fundamental ; Third Overtone (3rd); Fifth Overtone (5th)
Contouring (dioptric) Plano-Convex : 0.5 dioptric~10 dioptric Bi-Convex : 10 dioptric~15 dioptric



processing capacity - wafers

Diameter 3”(76.2mm) 4”(100mm) 6”(150mm) 8”(200mm)
Thickness 0.08mm Min-up 0.10mm Min-up 0.20mm Min -up 0.35mm Min-
Primary Flat 22mm 32mm 42.5mm 57.5mm or notch
Surface LTV (5mmx5mm) <1.5µm TTV <1.5~3 µm
  Bow -30<bow<30 Warp <40µm
  Surface Type SSP / DSP Edge Criteria R=0.2mm or Bullnose
  Polished side Ra <0.5nm or per requested Back Side Criteria

General is 0.2-0.5µm or as customized

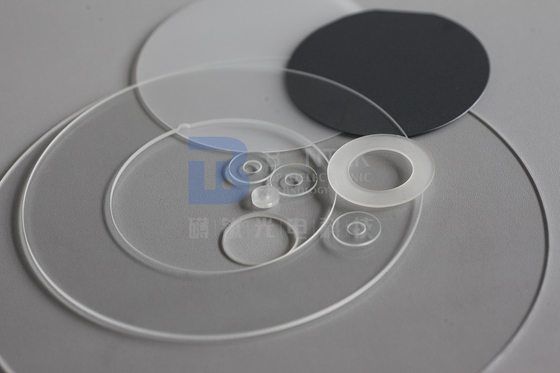

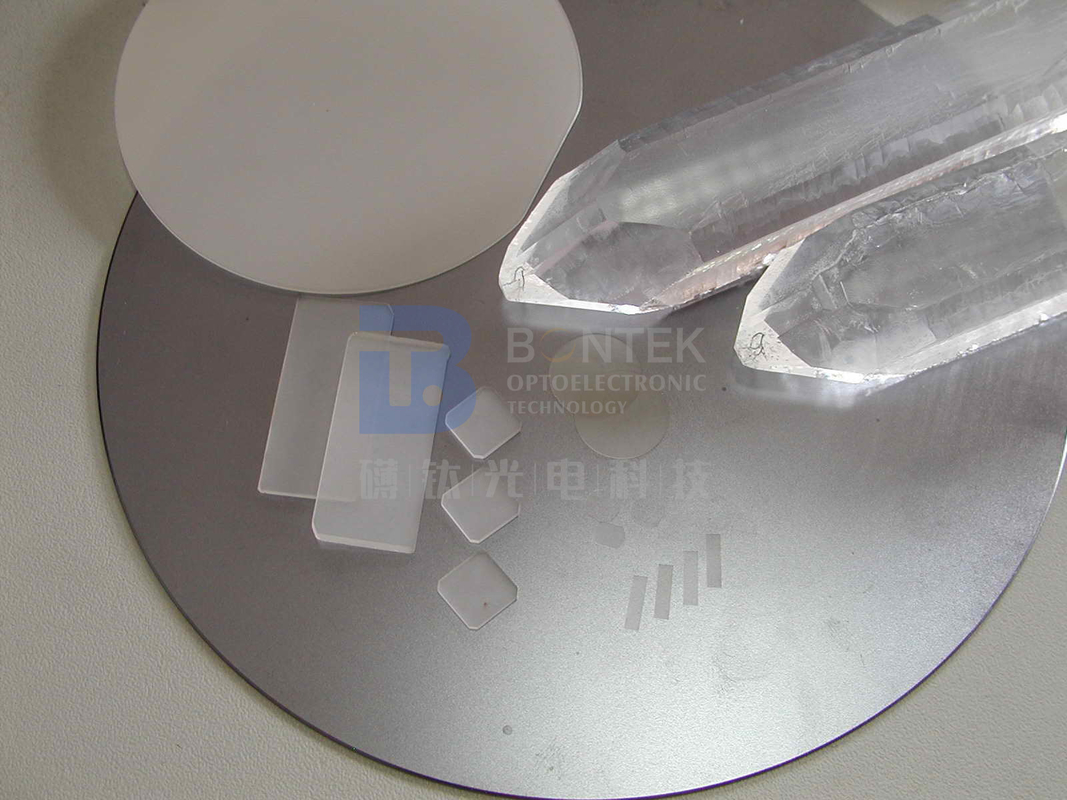

2'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 02'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 12'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 2

2'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 32'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 42'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 5



2'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 6





FAQs:



  1. Q: What are the products you mainly work on?

A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.



  1. Q: Can you accept product customization?

A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.



  1. Q: Can you deliver the goods via our courier agent?

A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.



  1. Q: How can you guarantee we get what we want safely?

A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.



  1. Q: Can we visit your factory?

A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.





Acceptance Check

2'' DSL Seedless Single Crystal Quartz Wafer X-Cut Y-Cut For Semiconductor 7

1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.



2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.



3. Please open the vacuum package in a clean room when the products are to be applied.



4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
