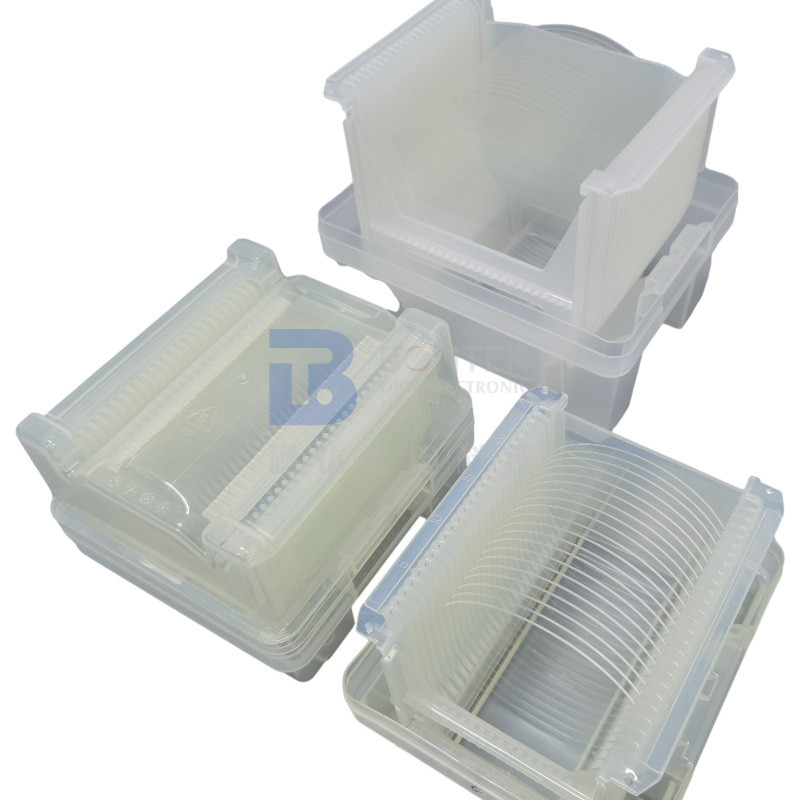

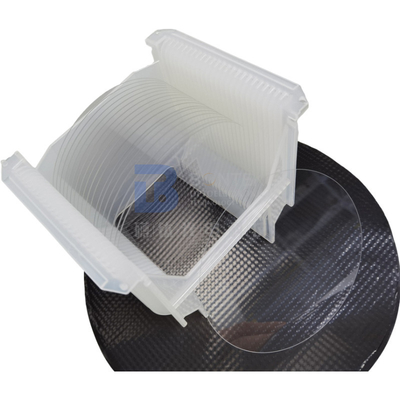

ST Cut Single Crystal Quartz Wafer With Piezoelectric Effect For Frequency Stabilization
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs / Month |
|
Detail Information |
|||
| Product: | Single Crystal Quartz | Diameter: | 4inch, 6inch |
|---|---|---|---|
| Cut Angle: | AT, ST, DT | Thickness: | 0.35mm, 0.5mm |
| Surface Finish: | Double Side Polish | Application: | Resonators, Frequency Control |
| Seed: | Seedless / Withseed | Grade: | SAW / Optical |
| High Light: | ST Cut Single Crystal Quartz Wafer,4inch Quartz crystal,Frequency Stabilization Single Crystal Quartz Wafer |
||
Product Description
ST Cut Single Crystal Quartz Wafer with Piezoelectric Effect used in Frequency Stabilization
Quartz crystal is currently the most used crystal and is an important electronic material. When a quartz wafer cut in a certain direction is subjected to mechanical stress, an electric field or charge proportional to the stress will be generated. This phenomenon is called the positive piezoelectric effect. Conversely, when the quartz crystal wafer is subjected to an electric field, it will produce a strain proportional to the electric field. This phenomenon is called the inverse piezoelectric effect. The positive and inverse effects are collectively called the piezoelectric effect. Quartz single crystal wafer not only has piezoelectric effect, but also has excellent mechanical, electrical and temperature characteristics. Resonators, oscillators and filters designed and manufactured with single crystal quartz wafer have outstanding advantages in frequency stabilization and frequency selection.
|
Diameter |
100.0mm ± 0.3mm or per request |
|
Orientation Flat (OF) |
32mm ± 2mm |
|
Thickness |
500um ± 30um |
|
Edge bevel |
Edge rounding |
|
Orientation |
|
|
Surface – cut: |
42.75°ST-cut±0.2° |
|
Orientation Flat (OF) |
Parallel to X±0.2° |
|
Flatness |
|
|
TTV |
≤20um |
|
LTV |
≤2.0um within an area of 5×5mm |
|
PLTV |
≥95%(3mm from edge excluded) |
|
BOW |
-25um ≤Bow≤+25um |
|
Surface Characteristics |
|
|
Wafer backside |
GC#1000 lapped & etched 0.2um≤Ra≤0.7um |
|
others |
|
|
Seed Location |
Seedless or within the center 3.0mm of the wafer |
|
Q Factor |
≥2 million |
