X-cut Y-cut Crystal Quartz Ring IEEE standard Double Side Lapped for Pressure Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pcs / Month |
|
Detail Information |
|||
| Material: | Quartz Crystal Ring | Shape: | Ring Shape |
|---|---|---|---|
| Cut Type: | X-cut, Y-cut, Z-cut | Surface: | Lapped, Or DSP |
| Inner Dia.: | 1.5mm Up | Q-value: | 1.8M, 2.0M, 2.4M, 3.0M |
| Inclusion: | Ia, Ib, I, II, III | ECD: | 10cm2, 30cm2, 100cm2, 300cm2 |
| High Light: | Y-cut Crystal Quartz,IEEE standard piezo quartz,X-cutt Crystal Quartz |
||
Product Description

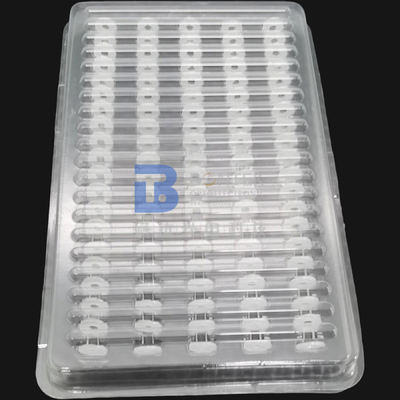

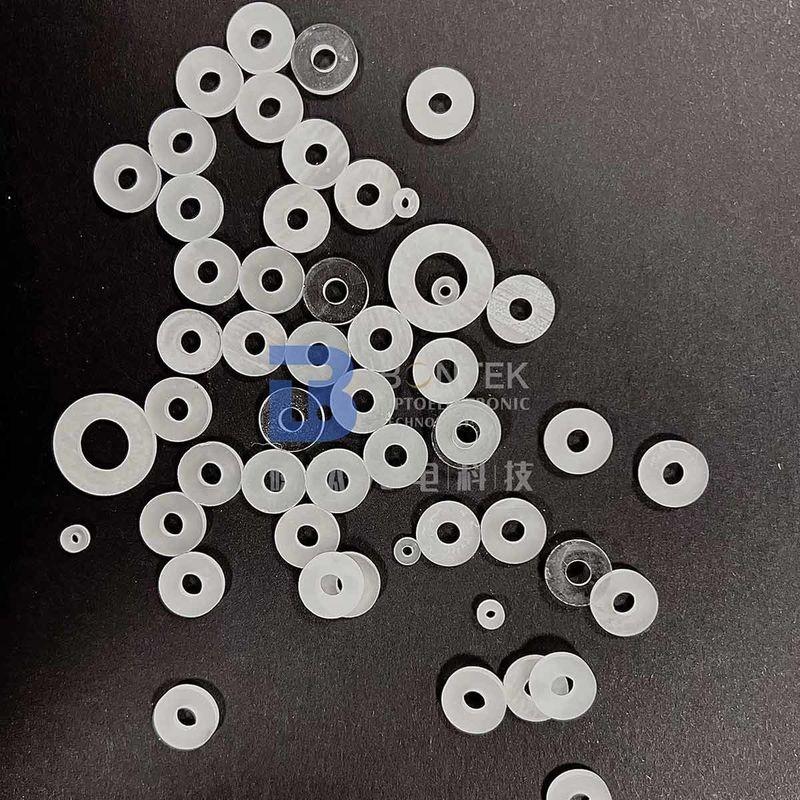

X-cut Y-cut Crystal Quartz Ring IEEE standard Double Side Lapped for Pressure Sensor
There are a variety of piezoelectric materials that can conduct an electric current, both man-made and natural. The most well known, and the first piezoelectric material used in electronic devices is the quartz crystal.
Piezo Quartz exhibits the best long term stability of any piezoelectric sensing material. Quartz exhibits no pyro-electric output and has a small stable thermal coefficient. The low capacitance of quartz gives it a high voltage output (V=Q/C).
BonTek Optoelectronics has enormous experience in Crystal Quartz Ring fabrication. We make 10 thounds of quartz rings and LiNbO3 rings each year. They are mostly used as the key element in pressure or force sensors. We can customize the outter dia., inner dia., surface finish, and cut angle for you.
|
Material |
Single Crystal Quartz Blanks (Piezo / Optical grade) |
|
Synthetic Q-Value |
Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
|
Inclusions Density |
Ia,Ib,I, II,III Grades (IEC standards) |
|
Cutting Angle |
X / Y / Z / AT / BT / ST etc. |
|
Outter Diameter |
3mm ~ 200mm |
|
Inner Diameter |
1.5mm ~ 100mm |
|
Thickness |
0.1mm ~ 5mm |
|
Orientation Flat |
As required, or Pencil marked |
|
Surface Finish |
Double side lapped, Double side polished |
|
Polished side Ra |
<1nm or specific per requested |
|
Back Side Criteria |
General is 0.2-0.5µm or as customized |
