AT SC Cut Quartz Crystal Round Blanks IEEE Standard Single Or Double Rotation For TCXO
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:14001 |
| Model Number: | Single Crystal Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |

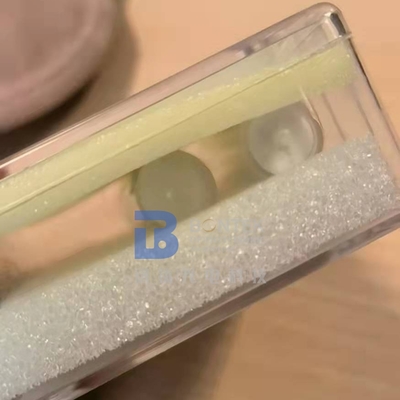

| Packaging Details: | Cassette / Jar, put in a carton with PE foam. |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200000 pcs / Month |
|
Detail Information |
|||
| Product: | Cultured Quartz Crystal | Thickness / Frequency: | 1MHz~70MHz By Etching |
|---|---|---|---|
| Rotation: | SC-cut, AT-cut | θ Angle: | ±10″, ±15″, ±30″, ±1′, ±2′, …, Etc. |
| Size: | Φ8mm, 10mm；20×20mm Etc. | Ord: | Fundamental; 3rd Overtone; 5th Overtone |
| Surface: | #1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide）& Etched Std | Dioptric: | Plano-Convex: 0.5 Dioptric～10 Dioptric Bi-Convex: 10 Dioptric～15 Dioptric |
| High Light: | SC cut Quartz Crystal,20×20mm Cultured Crystal Quartz,AT cut Quartz Crystal |
||
Product Description

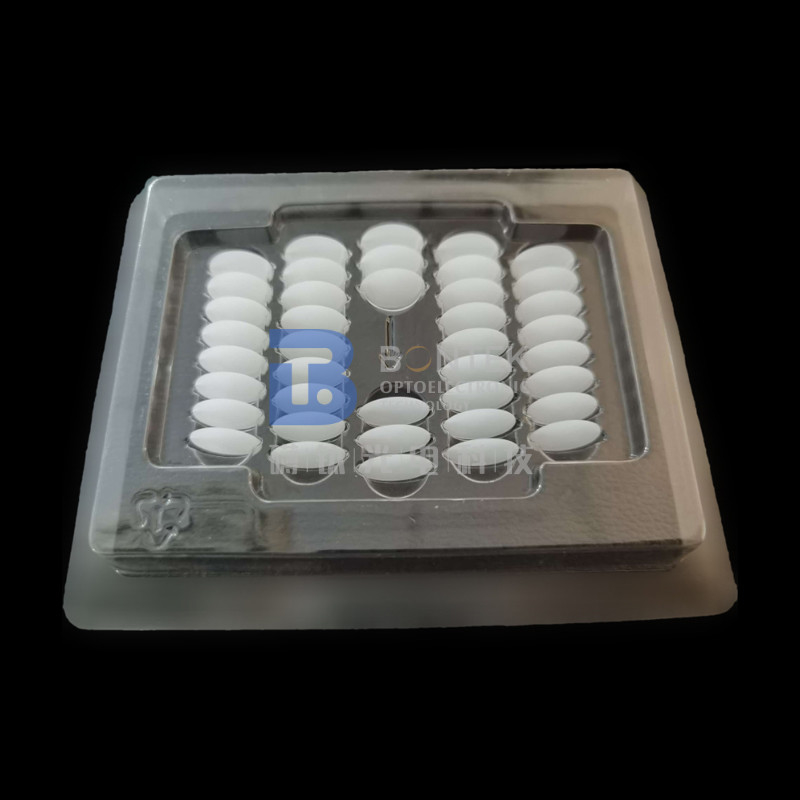

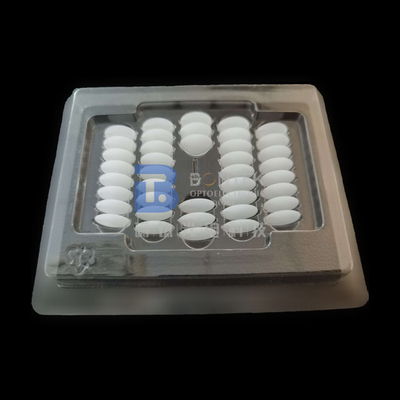

AT SC cut Quartz Crystal Round Blanks IEEE standard Single or Double Rotation for TCXO

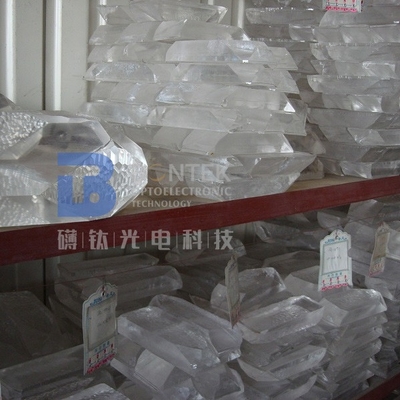

Cultured Crystal Quartz blanks are made of right-handed Alpha quartz crystal artificially grown bars. The cultured crystal bars are most used to fabricate piezoelectric components for applications as timing, frequency control and frequency selection.
BonTek has QSC41L EFG from Berlin to do angle control. It can work on IT, SC and FC cuts for angle measurement and sorting. We provide quartz crystal blanks in all standard formats: Round, Square, SMD, strip, plano-plano, contoured, lapped, and polished. The most used are AT-cut and SC-cut plates with very strict angle torlerance. Please check below our detailed capabilities.
|
Orientation |
AT, SC, IT,…, etc |
|
Angle Tolerance |
Theta Angle: ±5″, ±10″, ±15″, ±30″, ±1′, ±2′, …, etc. |
|
Phi Angle: ±5′, ±10′, ±15′, ±30′, …, etc. |
|
|
Size |
Round (3.0mm～8”)/ Square (1.6x1.6mm～48x48mm or larger)/ SMD (1.2x2.4mm Above) |
|
Size Tolerance |
±0.01mm,+/-0.005mm, +/-0.0005mm, according to size |
|
Frequency |
1 Mhz up to 54Mhz for AT-Cut Fundamental; Up to 70Mhz by Etching |
|
Flat |
Per requested: the flat shall be perpendicular to X axis within ±10 deg |
|
Surface |
#1000(9u); #2000(7u); #3000(5u); #4000(3u) (SiC); Polished(Cerium Oxide)& etched Std |
|
Overtone |
Fundamental; Third Overtone (3rd); Fifth Overtone (5th) |
|
Dioptric |
Plano-Convex: 0.5 dioptric～10 dioptric Bi-Convex: 10 dioptric～15 dioptric |
|
Material |
Cultured Quartz Crystal |
|
Q-Value |
Min 1.8x10^6, 2.4x10^6 to 3.0x10^6 IEC standards |
|
ECD |
Max 2 /c㎡, 10/c㎡, Max 30/c㎡, Max 100/c㎡, Max 300/c㎡; Swept Quartz |
|
Inclusions |
Ia, Ib, I, II, III Grades |
|
Swept |
Z bar, Y bar, Or Swept quartz |
