Stepanov'S Method Grown Sapphire Crystal Wafer 2Inch 3inch 4inch 6inch R-Axis M-Plane
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001 |
| Model Number: | Sapphire (Al2O3) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |

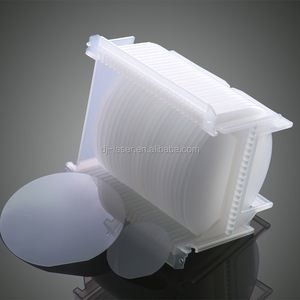

| Packaging Details: | Cassette, Jar, Film package |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces/Month |
|
Detail Information |
|||
| Material: | Sapphire Wafer | Growth Method: | Horizontally Directed Crystallization (HDC) |
|---|---|---|---|
| Advantage: | Hardness9.0，Wear Resistant | Color: | White / Red / Blue |
| Primary Flat: | 16.0±1.0mm For 2 Inches, 22.0±1.0mm For 3 Inches, 30.0±1.5mm For 4 Inches, 47.5/50.0±2.0mm For 6 Inches | Flat Orientation: | A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
| Application: | Semicondutor Wafer, Led Chip, Optical Glass Window, Electronic Ceramics | Industry: | Led，optical Glass，eli-ready Wafer |
| High Light: | Hardness9.0 sapphire crystal wafer,2Inch semiconductor wafer,sapphire crystal wafer 6inch |
||
Product Description

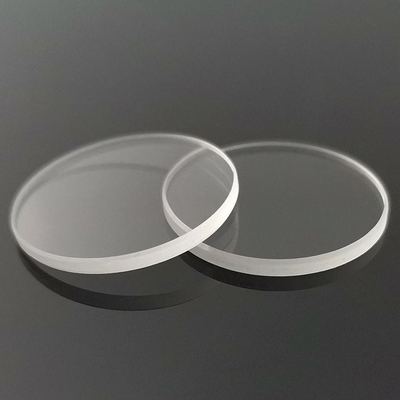

Stepanov's Method Grown Sapphire Wafer 2Inch 3inch 4inch 6inch R-Axis M-plane
The main application of optical sapphire is large aperture windows, viewports, illuminators for common-aperture optical systems (visible+IR) what make sapphire the top actual material due to its optical and mechanical properties.
Sapphire products are used in many fields as optical details (windows, plates, light guides and lenses, especially sapphire plane-parallel plates - windows, optical high-temperature substrates, exact mechanics details, bulbs of high pressure lamps and so on.
|
Orientation Cut |
R-plane, C-plane, A-plane, M-plane or a specified orientation |
|
Orientation Tolerance |
± 0.3° |
|
Diameter / Size |
2 inches, 3 inches, 4 inches, 6 inches, 8 inches or others |
|
Diameter Tolerance |
± 0.2mm |
|
Thickness |
0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others; |
|
Thickness Tolerance |
± 25μm |
|
Primary Flat Length |
16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches |
|
Primary Flat Orientation |
A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
|
TTV |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
BOW |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
Front Surface |
Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations) |
|
Back Surface |
Fine ground (Ra=0.6μm~1.4μm) or Epi-polished |
|
Packaging |
Packaged in a class 100 clean room environment |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
