150mm 200mm Fused Silica Wafer Borosilicate With Flat Or Notch Edge Ground
Product Details:
| Place of Origin: | China |
| Brand Name: | BonTek |
| Certification: | ISO:9001, ISO:14001 |
| Model Number: | Fused Silica, Fused Quartz |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |

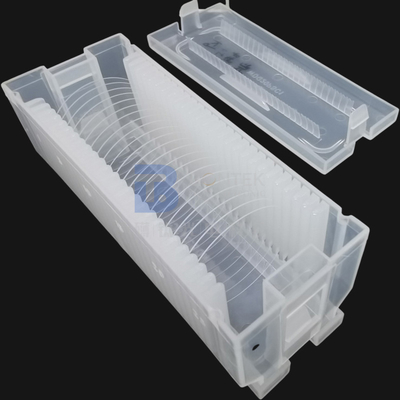

| Packaging Details: | Cassette/ Jar package, vaccum sealed |
| Delivery Time: | 1-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs/Month |
|
Detail Information |
|||
| Material: | Fused Silica Wafer | Brand: | Schott, Corning, Ohara, Heraeus |
|---|---|---|---|
| Dia.: | 76.2mm, 100mm, 150mm | Thickness: | 0.375mm, 0.525mm, 0.675mm |
| Warp: | <40um, <70um | BOW: | ±30um, ±40um |
| TTV: | <5um, <10um | Roughness Ra: | Ra<1nm |
| High Light: | 200mm Fused Silica Wafer,76.2mm quartz wafers substrates,Fused Silica Wafer Borosilicate |
||
Product Description

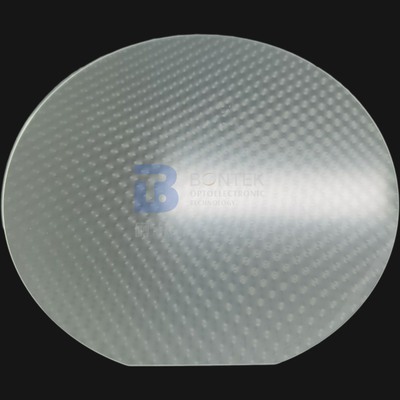

Φ150mm 200mm Fused Silica Wafer Borosilicate Customized Thickness with Flat or Notch Edge ground
BonTek works a lot with fused silica, fused quartz, borosilicate, and soda lime glass materials. The glass are used as displaying glass, optical windows or as bonding wafers in semiconductor industry. The brand we work on are Feilihua (JGS1, JGS2, JGS3), Corning (7979, 7980, Eagle XG, Gorilla), Schott (BF33, Pyrex, MEMpax, B270, D263T, Zerodur), Ohara (SK1300), Heraeus, GM (H-K9L) etc.
We can fabricate the glass materials into 5mm - 400mm diameter wafers or square plates. The thickness can be very thin, such as 4-inch diameter with 0.1mm thickness. The wafers/blanks are with high surface quality ensured by our in house test machines, such as FlatMaster for TTV, Bow, Warp, automatic interferometer for Ra and particle test.
|
Spec |
6" |
8" |
|
Diameter (or square) |
150mm |
200mm |
|
Tolerance |
±0.2 |
±0.2 |
|
Thickness |
0.30mm |
0.40mm |
|
or more |
or more |
|
|
Primary reference flat |
47.5mm |
Semi-notch |
|
LTV (5mmx5mm) |
< 0.5um |
< 0.5um |
|
TTV |
< 3um |
<3um |
|
Bow |
±30um |
±40um |
|
Warp |
≤ 40um |
≤ 70um |
|
Edge Rounding |
Compliant with SEMI M1.2 Standard/refer to IEC62276 |
|
|
Surface Type |
Single Side Polished /Double Sides Polished |
|
|
Polished side Ra |
≤1nm |
|
|
Back Side Criteria |
general 0.2-0.7um or customized |
|
|
SCHOTT |
Borofloat33 / BK7 / B270 / D263 etc. |
|
CORNING |
Eagle XG, Fused Silica 7980 / 7978 / 7979 etc. |
|
Feilihua |
Fused Silica JGS1 / JGS2 & Single quartz etc. |
|
OHARA |
SK-1300, SK-1310 |
|
GM |
H-K9L / Soda Lime etc. |
|
Material |
BOROFLOAT 33 |
|
Density (@ 25°C/77°F) |
2.23 g/cm3 |
|
Modulus of Elasticity |
63 kN/mm2 |
|
Knoop Hardness HK 0.1/20 |
480 |
|
Poisson’s Ratio |
0.2 |
|
Dielectric Constant (@ 1 MHz & 25°C) |
4.6 |
|
Loss Tangent (@ 1 MHz & 25°C) |
37 x 10-4 |
|
Dielectric Strength(@ 50 Hz & 25°C) |
16 kV/mm |
|
Refractive Index (nd) |
1.472 |
|
Dispersion (nF - nC) |
71.9 x 10-4 |
